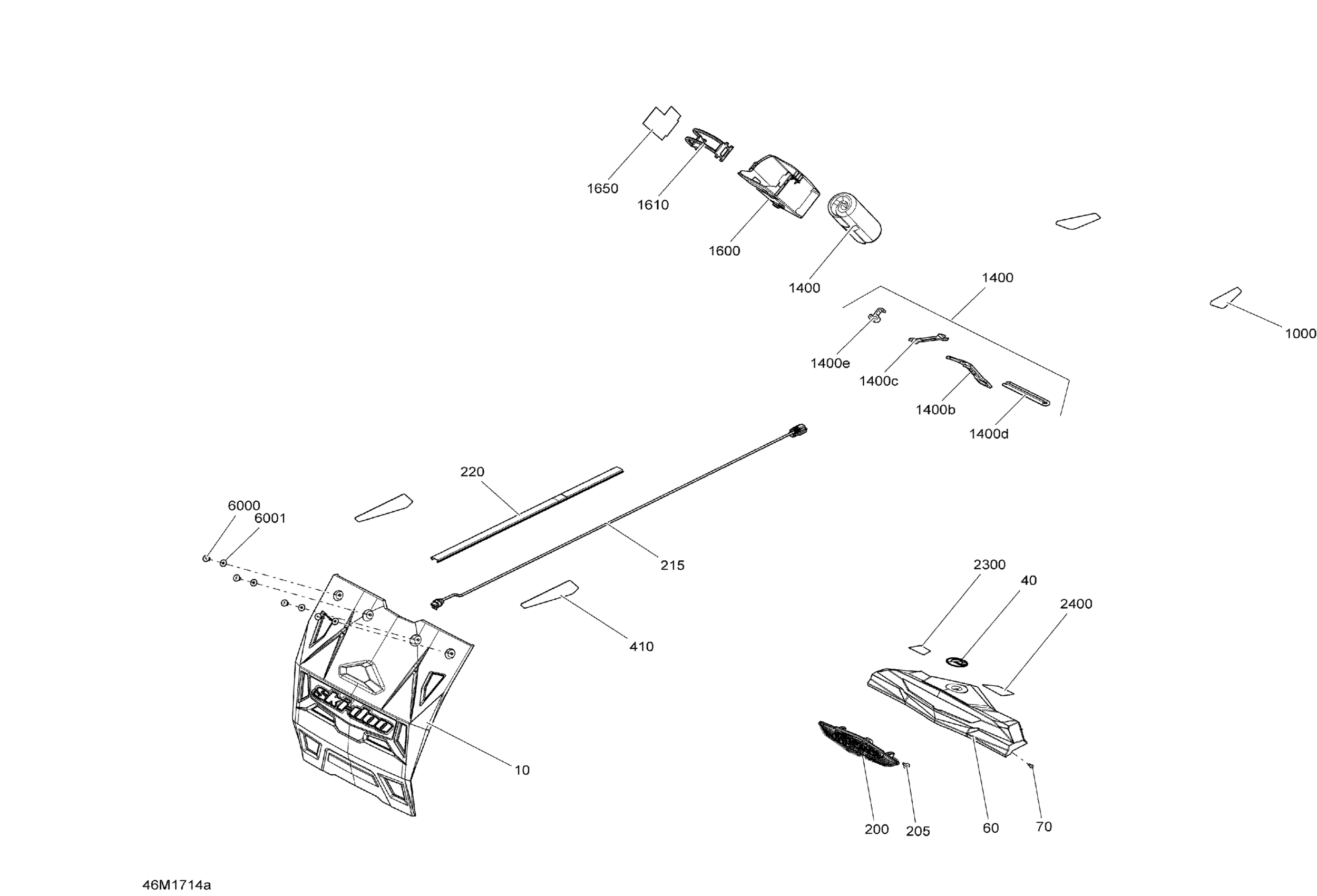

Ski-Doo TUNDRA - 2-STROKE - XTREME, 2017 Utilities - All Models Diagram

Description

Price

Snow Guard

520001510

Unavailable

BRP Logo 48mm

516008738

$12.87

Deep Black, Light Fairing

511000810

Unavailable

Hex. Screw K40 X 13

241141340

Unavailable

200

Rear Light

520001143

$76.89

205

Screw M4 X 16

250000725

Unavailable

215

Wiring Harness

515178064

Unavailable

220

Radiator Trim

520000829

$20.74

410

Red Rh Rear Reflector

520001239

Unavailable

410

Red, LH Rear Reflector

520001238

Unavailable

1000

Yellow, RH Front Reflector

520000891

$13.38

1000

Yellow, LH Front Reflector

520000892

$13.38

1400

Tools Kit | Includes 1400 to 1400e

520001670

Unavailable

1400a

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

1400b

Set Key, 16/21 mm

529000046

$14.49

1400c

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

1400d

Was 412500100 Rope-Starter

219704403

Unavailable

1400e

Starter Grip

529000060

Unavailable

1400f

Wrench

520001499

Unavailable

1600

Tool Kit Rack

520000894

$14.99

1610

Latch

520000528

$6.60

1650

Reflective Sheet

514054827

Unavailable

2300

Security Label, XS

516006914

Unavailable

2400

Warning Decal, Safety

516005058

Unavailable

6000

Pop Rivet 3/16”

293150101

$2.06

6001

Washer

517124300

Unavailable
