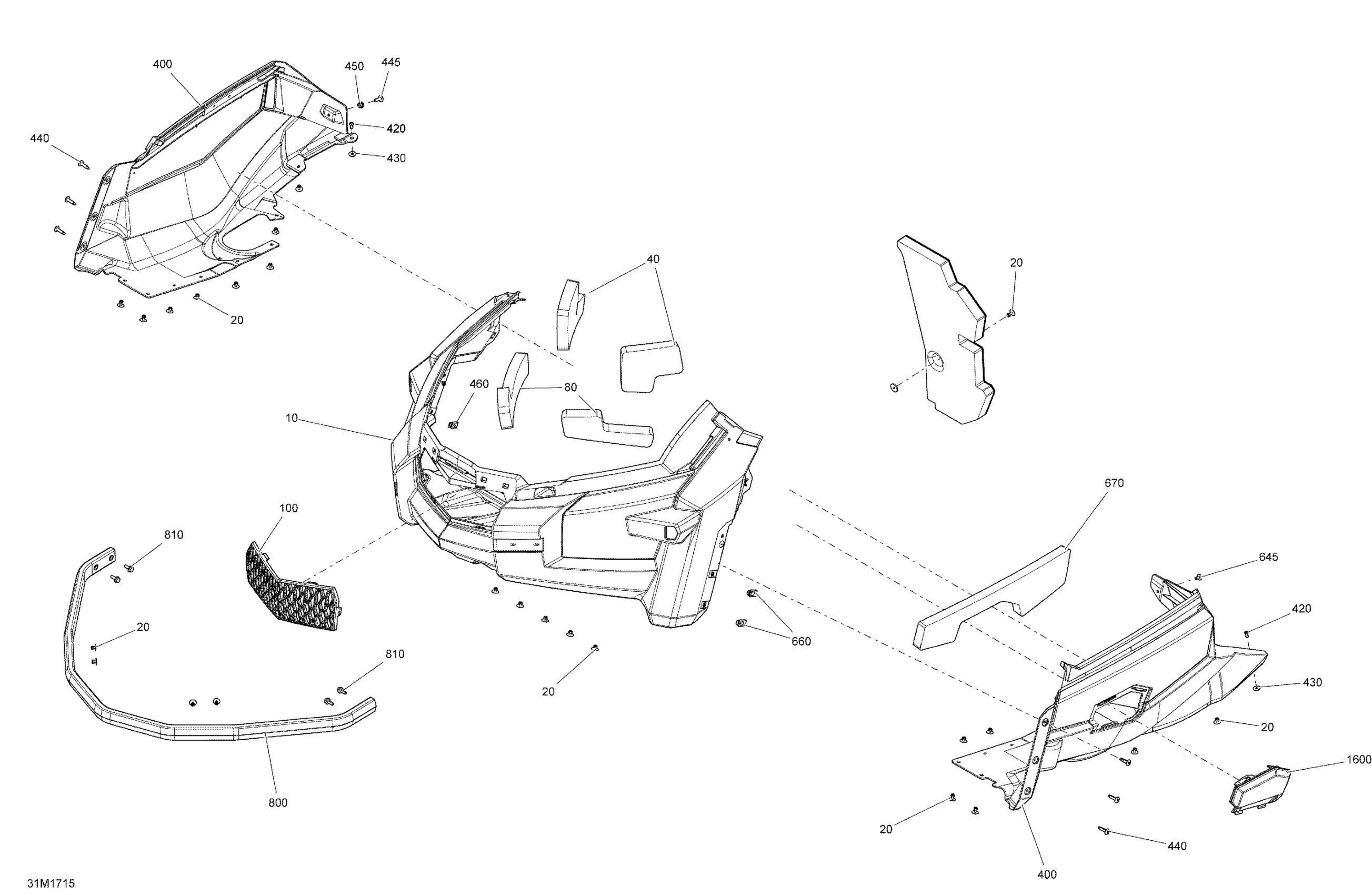

Ski-Doo TUNDRA - 2-STROKE - XTREME, 2017 Bottom Pan - All Models Diagram

#

Description

Price

10

Black, Bottom Pan

502007361

Unavailable

20

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

40

RH Upper Bottom Pan Foam

502007204

Unavailable

40

LH Upper Bottom Pan Foam

502007205

Unavailable

80

RH Lower Bottom Pan Foam

502007206

Unavailable

80

LH Lower Bottom Pan Foam

502007207

Unavailable

100

Botton Pan Grille

502006887

Unavailable

400

Black RH Bottom Pan

502006965

Unavailable

400

Black LH Bottom Pan

502006966

Unavailable

420

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

430

Washer

517124300

Unavailable

440

Torx Screw M6 X 25

250000618

Unavailable

445

Torx Truss Screw M6 X 20

250000705

Unavailable

450

Insert

293450275

Unavailable

460

Panel Nut M6 X 1.0

250100198

Unavailable

645

Torx Truss Screw M6 X 12

250000767

$1.66

660

Panel Nut M6 X 1.0

250100198

Unavailable

670

LH Bottom Pan Foam

502007208

Unavailable

690

Foam On Plate

502007209

Unavailable

695

Pop Rivet 3/16”

293150108

$1.23

700

Washer

250200016

Unavailable

800

Black Front Bumper

502007121

Unavailable

810

Hex. Flange Screw M6 X 16

207661644

Unavailable

1600

Black Bottom Pan Door

502006970

Unavailable
