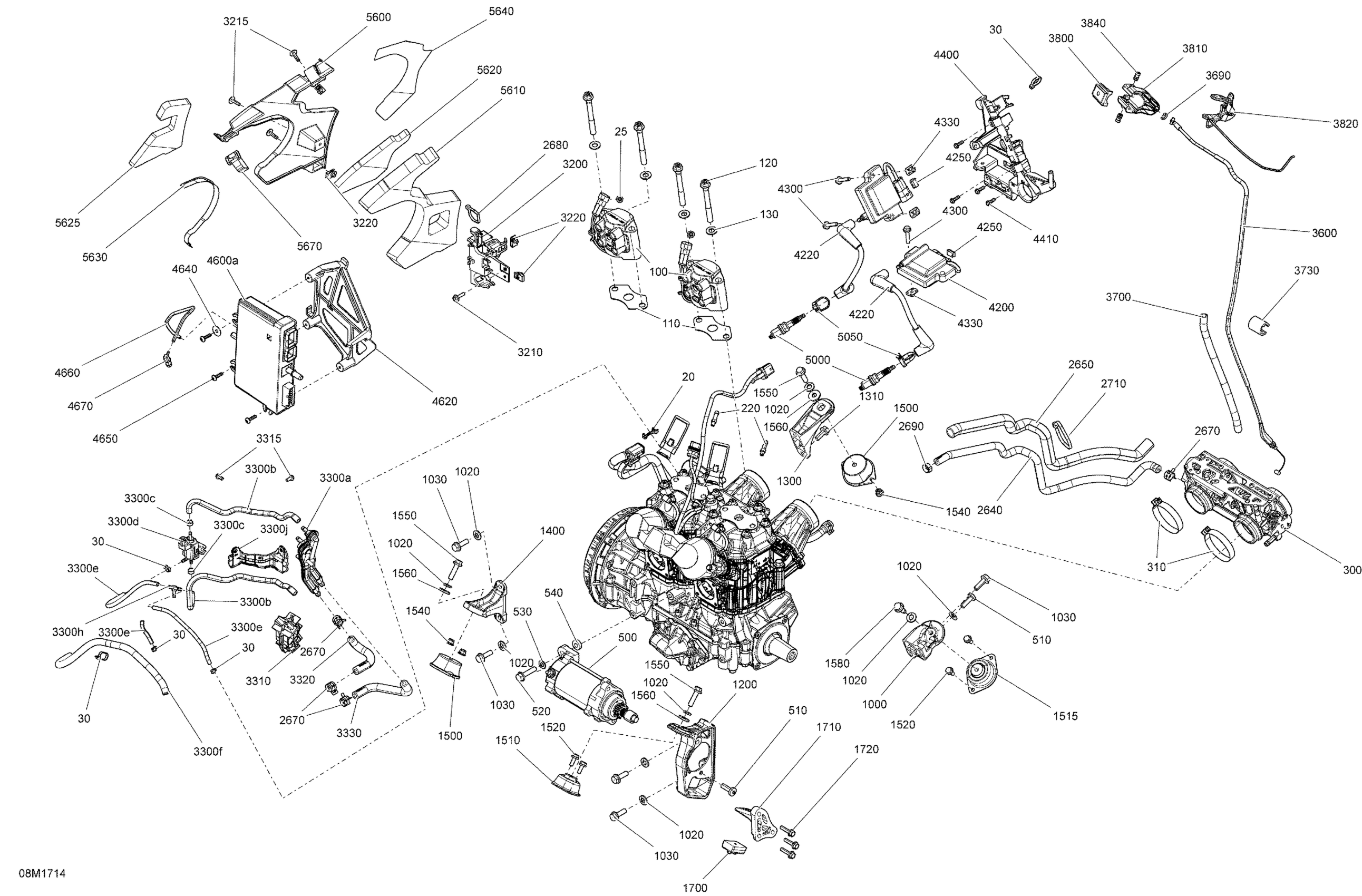

Ski-Doo TUNDRA - 2-STROKE - XTREME, 2017 Engine - All Models Diagram

#

Description
Price

20

Locker

515177770

$2.14

25

Push Nut

732610072

$1.72

30

Tie Wrap 94 mm | 4X4

293750001

$0.83

100

Fuel Injector | Includes 13 to 16b This part replaces 512060727.

512061233

$339.99

110

Gasket

420430930

$4.60

120

Torx Flange Screw M10 X 90 -SW 13/T50

420441187

$17.66

130

Flat Washer 10 mm

234001410

$0.98

220

Hose Nipple

420924724

$12.29

300

Throttle Body

420889201

$1,228.43

310

Gemi Clamp

293650158

$8.34

500

Starter

515178473

$319.49

510

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

520

Hex Flange Screw M8 X 35, Scotch Grip

207583544

$4.28

530

Flat Washer With Teflon 8 mm

250200008

$3.12

540

Washer

515176500

$10.83

1000

Rear Support, PTO

512060478

$29.97

1020

Conical Spring Washer M8

250200146

$0.83

1030

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.26

1200

FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060699.

512060712

Unavailable

1300

Rear Support, MAG

512060559

$29.97

1310

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

1400

Front Support, MAG

512060469

$31.51

1500

Rubber Mount

512060729

$69.97

1510

Rubber Mount

512060387

$42.28

1515

Rubber Mount

512060448

$42.28

1520

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

1540

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

1550

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.30

1560

Yellow, Washer

503183200

$3.00

1580

Hex. Flange Screw M8 X 1.25 X 25

250000796

$1.74

1700

Stopper

512060627

$9.31

1710

Stopper Support

512060576

$28.43

1720

Hex. Flange Screw M6 X 25

207562544

$1.39

2640

Formed Hose, Output

512060740

$31.51

2650

Tubing

513033412

$4.28

2670

Norma Spring Clamp

293650214

$15.35

2680

Tie-Rap 180 mm

414115200

$0.09

2690

Oetiker Clamp

293650046

$2.33

2710

Tie Wrap 368 mm

293750008

$0.85

3200

Solenoid Support

512060298

$12.52

3210

Hex.Flange Screw M5 X 20

207652044

$1.56

3215

Torx Screw M5 X 20

250000528

$1.74

3220

Panel Nut M5 X 0.8

250000958

$3.48

3300a

Manifold

512060692

$43.05

3300b

Polyurethane Hose 10000Mm Long

219704410

$46.12

3300c

Crimp Clamp

293650234

$5.22

3300d

Solenoid Valve

270600005

$39.62

3300e

Was 420660574 Pressure Hose 280 mm

219704352

$208.43

3300f

Was 409901700 Tubing (9 mm)

219704399

$79.97

3300h

T-Fitting

293710068

$6.59

3300j

Hose Support

512060827

$2.06

3300k

Spring | Not Shown

512060934

$81.51

3310

Manifold Support

512060769

$10.52

3315

Hex Flange Screw M5 X 11

210251150

$1.74

3320

LH Formed Hose

512060695

$7.80

3330

RH Formed Hose

512060694

$7.80

3600

Throttle Cable

512060851

$74.58

3690

Circlip

414274500

$0.74

3700

Was 409901700 Tubing (9 mm)

219704399

$79.97

3730

Protector

512060313

$9.31

3800

Upper Housing

512060859

$8.38

3810

Lower Housing

512060860

$16.89

3820

Handle Ass'y

512061250

$117.66

3840

Flange Screw

732601143

$4.02

4200

Ignition Coil

512060953

$129.97

4220

Ignition Cable, 177mm long

512061126

$27.66

4250

Clip

710000992

$4.00

4300

Hex. Flange Screw M6 X 1.0 X 30 | Not Shown

250000253

$2.18

4330

Nut Welded, M6

293100003

$6.32

4400

Ignition Coils Support

512060888

$10.52

4410

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

4600a

Calibrated Module

512060780

$769.99

4620

Calibrated Module Support

512060858

$12.52

4640

Flat Washer

250200040

$1.82

4650

Torx Screw Truss Head K50X20 T20

250000760

$1.74

4660

Was 415080100 Fuel Line Primer 3,2mm

219704409

$9.15

4670

Male Connector

414814100

$2.18

5000

Spark Plug NGK PZFR6F This part replaces 415129375.

415130430

$23.37

5050

Clamp

512060993

$5.22

5600

Noise Shield

512060634

$17.66

5610

Interior Noise Foam

512060343

$18.43

5620

Upper Exterior Noise Foam

512060344

$9.31

5625

Lower Exterior Noise Foam

512060665

$6.26

5630

Heat Shield

512060574

$7.35

5640

Heat Shield

512060666

$5.25

5650

Torx Screw M5 X 20

250000528

$1.74

5670

Velcro Strip

508000599

$12.09
