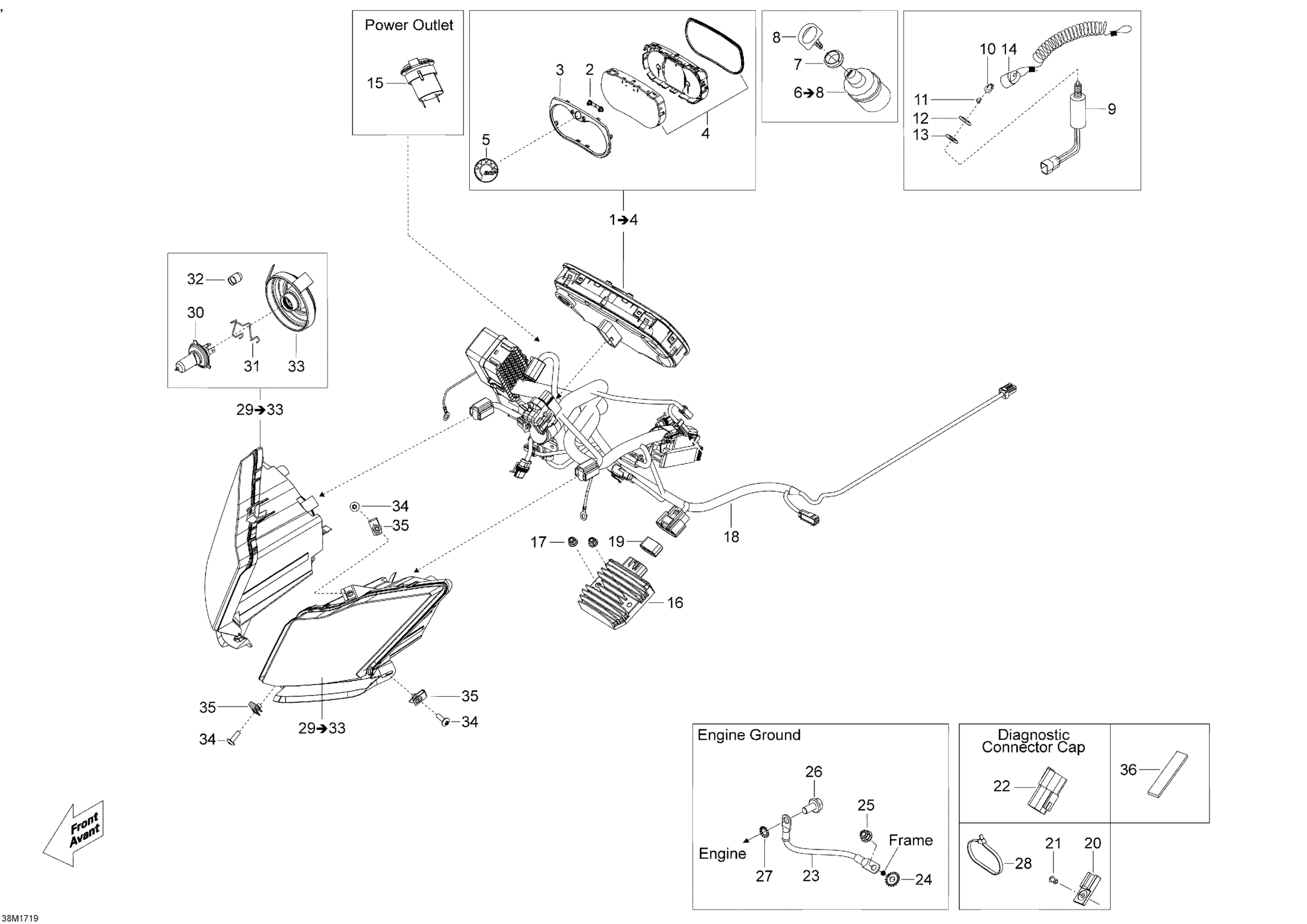

Ski-Doo TUNDRA - 2-STROKE - WT Europe, 2017 Electrical System Diagram

#

Description
Price

1

Indicator | Includes 10 to 10c

515177279

Unavailable

2

Speedometer Button | XTP

415129355

Unavailable

3

Gauge Ring

415129370

$10.66

4

Lens | XTP

415129349

Unavailable

5

BRP Logo 20MM x 2MM | XTP

516006224

Unavailable

6

Ignition Swirch

515177063

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Brake Switch

515175653

$15.57

10

Switch Nut

515145900

$10.83

11

Plunger Cap

570151100

$10.14

12

Flat Washer

250200084

$2.76

13

RH Threaded Hex. Jam Nut M10

732610010

Unavailable

14

Cap Ass'y

515178283

$37.66

15

DC Outlet

710001248

$31.17

16

Voltage Regulator

515176699

Unavailable

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

18

Main Harness

515177505

Unavailable

19

Lock

515176681

Unavailable

20

Clip

270000141

$8.33

21

Pop Rivet 3/16"

390402200

$0.26

22

Connector Plug

710004904

$8.55

23

Ground Wire

515176745

Unavailable

24

Lock Washer Serrated M6

250200041

Unavailable

25

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

26

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

Unavailable

27

Serrated Lock Washer 8 mm

234481608

Unavailable

28

Tie Wrap 94 mm | 4X4

293750001

$0.83

28

Tie Wrap 142 mm

293750002

Unavailable

28

Tie-Rap 180 mm

414115200

$0.09

28

Tie Wrap 368 mm

293750008

$0.85

29

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

Unavailable

29

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

Unavailable

30

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

Unavailable

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Cap

515176498

Unavailable

33

Rubber Cap Protector

219800280

Unavailable

34

Torx Screw M6 X 20

250000722

Unavailable

35

Panel Nut M6 X 1.0

250100198

Unavailable

36

Velcro

293740059

Unavailable
