Description

Price

1

Frame | Inclus 1 à 31

518329362

Unavailable

2

Module E | Includes 10a to 10n

518328817

Unavailable

3

RH Member

518326795

Unavailable

4

LH Member

518325558

Unavailable

5

Front Member | Includes 10as to 10at

518325818

Unavailable

6

Clinch Nut Hexsert M8

605636002

$7.31

7

Avex Rivet

390909100

$0.29

8

Hemlock Rivet 6.5 mm

293150120

$7.23

9

Hemlock Rivet, 6.5 mm

293150119

$4.00

10

Muffler Support

518328433

Unavailable

11

Rivet Hucklok

293150163

$2.82

12

Fastening rail

518326107

$15.35

13

Black - LH Footrest

518328846

Unavailable

13

Black, RH Footrest

518328847

Unavailable

14

Fastening Bracket

605355235

Unavailable

15

LH Drive Axle Cover

518328016

$192.28

15

RH Drive Axle Cover

518328017

$192.28

16

BATTERY SUPPORT PLATE - Call your local BRP dealership

518325986

$73.05

17

Seat Box Bracket

518329164

Unavailable

18

SUPPORT TUBE BRACKET LH - Call your local BRP dealership

518326109

$40.74

18

SUPPORT TUBE BRACKET RH - Call your local BRP dealership

518326110

$40.74

19

Clinch Nut plate

518326430

$45.99

20

LH Frame Corner

518325524

$52.28

20

RH Frame Corner

518328024

$52.28

21

Adhesive Patch

518325560

Unavailable

22

RH Support

518326520

Unavailable

23

Chain Case Support

518327877

Unavailable

24

Rear Profile

518328748

$217.66

25

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

26

Hemlock Rivet, 6.4 mm

293150174

$6.43

27

Avex Rivet

390909100

$0.29

28

Avex Rivet

390909200

Unavailable

29

Hemlock Rivet, 6.5 mm

293150119

$4.00

30

Rivet

293150183

$2.06

31

Hemlock Rivet, 6.5 mm

293150096

$3.17

32

Chain Case Counter Plate Front

518328028

Unavailable

33

Chain Case Counter Plate Rear

518328029

$15.35

34

Pop Rivet 3/16"

390402200

$0.26

35

Engine Support

518326719

Unavailable

36

Rivet Hucklok

293150163

$2.82

37

Avex Rivet

390909200

Unavailable

38

LH Footboard Support Tube

518326963

$126.89

38

RH Footboard Support Tube

518326964

$126.89

39

Avex Rivet

390909100

$0.29

40

Hex. Flange Screw M6 x 20

207662056

$0.98

41

LH Toe Hook

518328881

Unavailable

41

RH Toe Hook

518328882

Unavailable

42

Avex Rivet

390909200

Unavailable

43

Clinch Nut M6 Hexsert

605636003

$4.12

44

Black, Dart

414644300

$0.78

45

Fastening Bracket

518327878

$25.35

46

Hex. Flange Screw M6 x 20

207662056

$0.98

47

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

48

Torx Head Screw M6 X 16

250000717

Unavailable

49

Spring Bracket

514054846

$4.34

50

Avex Rivet

390909200

Unavailable

51

S Module | Includes 300 to 300a

518326213

Unavailable

52

Avex Rivet

390909200

Unavailable

53

Hex. Flange Screw M6 X 25

207662544

Unavailable

54

Hex. Flange Screw M6 X 25

207662544

Unavailable

55

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

56

Avex Rivet

390909100

$0.29

57

Avex Rivet

390909200

Unavailable

58

Pulley Support

518328434

$130.74

59

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

60

Hex. Flange Screw M8 X 30, Scotch Grip

207583086

$3.59

61

Front Member Ass'y | Includes 700 to 700d

518327004

Unavailable

62

LH Bumper Fastener

502007077

Unavailable

62

RH Bumper Fastener

502007078

Unavailable

63

Avex Rivet

390909200

Unavailable

64

Hex. Flange Screw M6 X 20

207662044

Unavailable

65

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

66

Flat Washer

224061201

Unavailable

67

Hex. Flange Screw M6 X 20

207662044

Unavailable

68

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

69

Hex. Flange Screw M6 X 20

207662044

Unavailable

70

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

71

Avex Rivet

390909200

Unavailable

72

Upper Support Tube

518329105

$189.97

73

Hex. Screw M8 X 20

207182044

$0.61

74

Hex. Elastic Stop Nut M8

232581414

Unavailable

75

Guide Tube RER

512060920

$45.99

76

Hex. Flange Screw M6 X 25

207662556

Unavailable

77

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

78

Upper Lateral Column Support

518325114

Unavailable

79

Hex. Flange Screw M6 x 20

207662056

$0.98

80

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

81

Upper Column

518327876

$26.12

82

Hex. Flange Screw M6 X 25

207662556

Unavailable

83

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

84

Adhesive Patch

518325560

Unavailable

85

Hex. Flange Screw M6 X 20

207662044

Unavailable

86

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

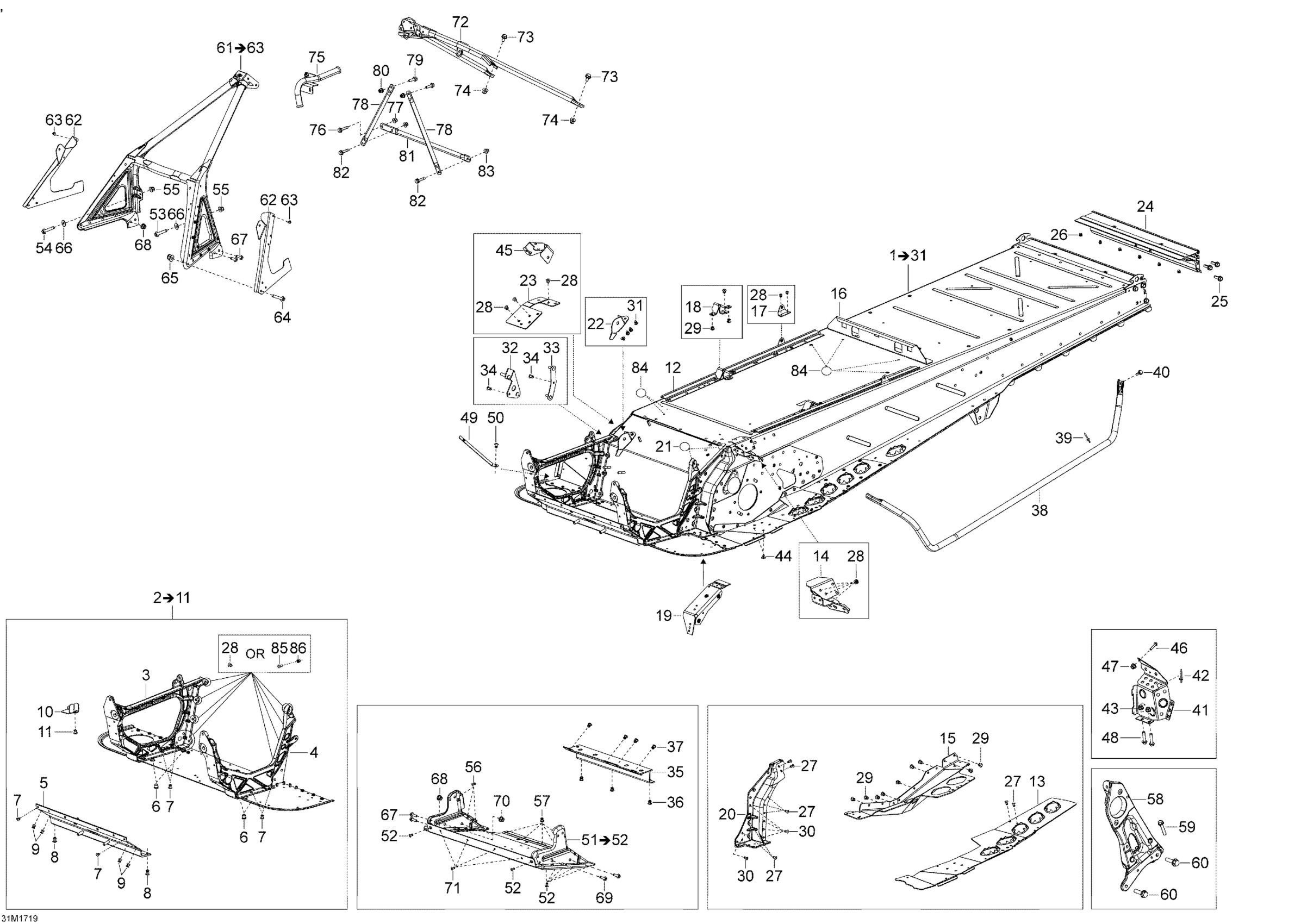

Ski-Doo TUNDRA - 2-STROKE - WT Europe, 2017 Frame Diagram

Frame | Inclus 1 à 31

Module E | Includes 10a to 10n

RH Member

LH Member

Front Member | Includes 10as to 10at

Muffler Support

Black - LH Footrest

Black, RH Footrest

Fastening Bracket

Seat Box Bracket

Adhesive Patch

RH Support

Chain Case Support

Avex Rivet

Chain Case Counter Plate Front

Engine Support

Avex Rivet

LH Toe Hook

RH Toe Hook

Avex Rivet

Hex. Flange Elastic Nut M6 x 1.0

Torx Head Screw M6 X 16

Avex Rivet

S Module | Includes 300 to 300a

Avex Rivet

Hex. Flange Screw M6 X 25

Hex. Flange Screw M6 X 25

Hex. Flange Elastic Nut M6 x 1.0

Avex Rivet

Front Member Ass'y | Includes 700 to 700d

LH Bumper Fastener

RH Bumper Fastener

Avex Rivet

Hex. Flange Screw M6 X 20

Hex. Flange Elastic Nut M6 x 1.0

Flat Washer

Hex. Flange Screw M6 X 20

Hex. Flange Elastic Nut M6 x 1.0

Hex. Flange Screw M6 X 20

Hex. Flange Elastic Nut M6 x 1.0

Avex Rivet

Hex. Elastic Stop Nut M8

Hex. Flange Screw M6 X 25

Hex. Flange Elastic Nut M6 x 1.0

Upper Lateral Column Support

Elastic Flange Nut M6 X 1.0

Hex. Flange Screw M6 X 25

Hex. Flange Elastic Nut M6 x 1.0

Adhesive Patch

Hex. Flange Screw M6 X 20

Hex. Flange Elastic Nut M6 x 1.0
