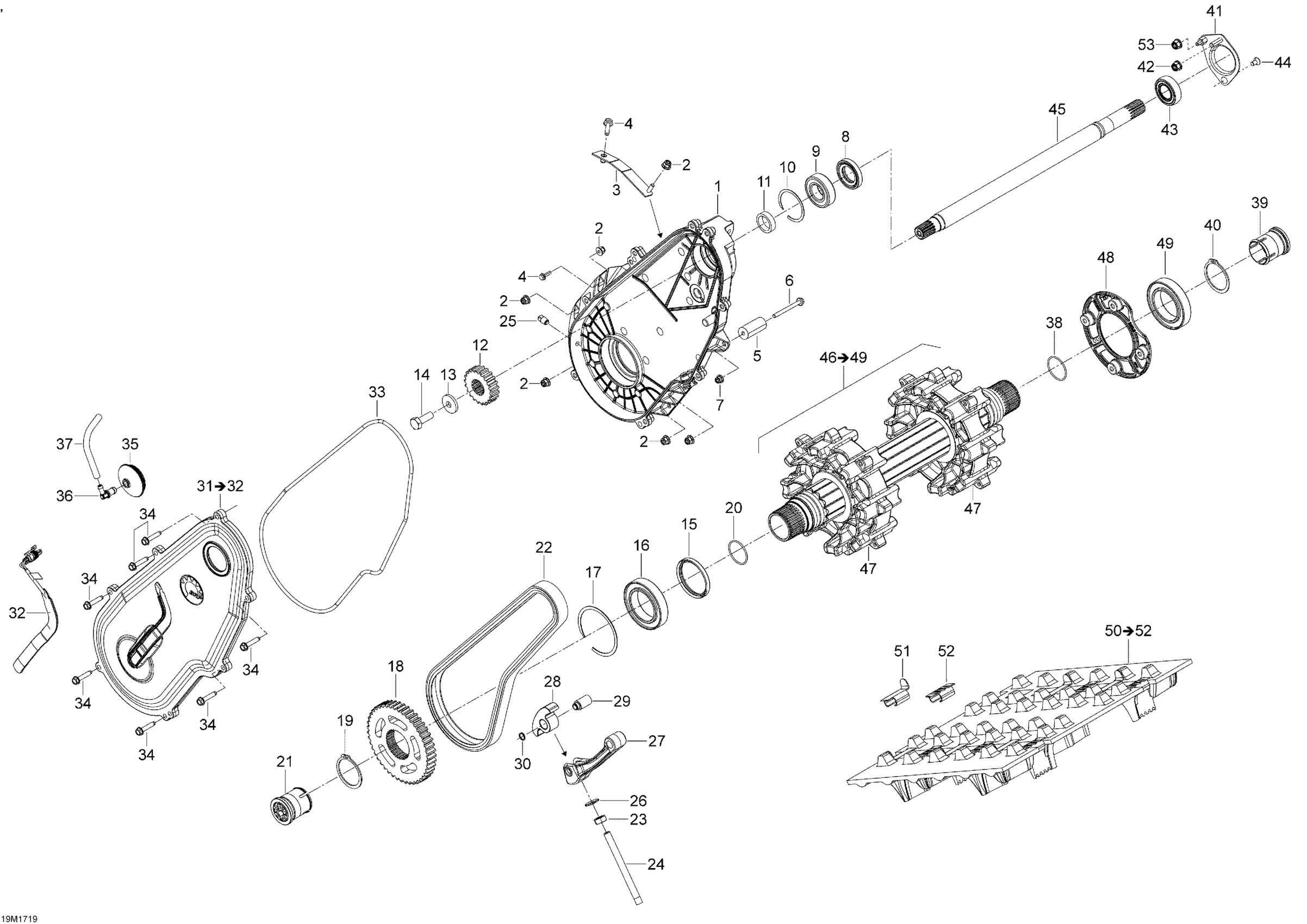

Ski-Doo TUNDRA - 2-STROKE - WT Europe, 2017 Drive System Diagram

#

Description
Price

1

Chaincase

504153181

$324.58

2

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

3

CHAINCASE COUNTER PLATE - Call your local BRP dealership | Includes 3 to 3,2

518328101

Unavailable

4

Hex. Flange Screw M6 x 20

207662056

$0.98

5

Sleeve

518327966

Unavailable

6

Hex. Flange Screw M6 X 70

207667056

$3.61

7

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

8

Oil Seal

293200168

Unavailable

9

Ball Bearing

293350115

Unavailable

10

Circlip

504152576

Unavailable

11

Shim

504152628

$8.40

12

Sprocket, 19 Teeth

504153783

Unavailable

13

Spring Washer M10

504152784

Unavailable

14

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

Unavailable

15

Oil Seal

293200159

Unavailable

16

Ball Bearing

293350059

Unavailable

17

Circlip

504152582

Unavailable

18

Kit Sprocket This part replaces 504152581.

861805539

Unavailable

19

Circlip

504152572

Unavailable

20

O-Ring

293300122

$2.06

21

Magnetic Cap

504152619

$23.05

22

Drive Chain, 104 Links

504152629

Unavailable

23

Hex. Nut M10 X 1.5

232006414

$1.11

24

Adjustment Screw

504152602

$9.62

25

Magnetic Plug 1/8 - 27 NPTF

504152636

$8.95

26

Seal Ring

293200128

Unavailable

27

Tensioner chain

504153429

$13.77

28

Slider Chain

504152739

$67.66

29

Tensioner Axle

504152841

$14.65

30

Circlip

504152282

$3.11

31

Chaincase Cover Ass'y | Includes 1700 to 1700c

504153147

$324.58

32

Rotation Sensor

504152896

$35.35

33

Tight Seal

293300130

$7.31

34

Hex. HD Forming Screw M6 x 30

250000811

Unavailable

35

Cap

504152860

Unavailable

36

Male Connector

414580700

Unavailable

37

Polyurethane Hose 10000Mm Long

219704410

Unavailable

38

O-Ring

293300122

$2.06

39

Magnetic Cap

504152619

$23.05

40

Circlip

504152572

Unavailable

41

Bearing Housing

504153187

$28.43

42

Hex. Flange Elastic Nut M8

233281414

Unavailable

43

Ball Bearing

293350074

Unavailable

44

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

45

Counter Shaft

504153212

Unavailable

46

Drive Axle Ass'y | Includes 43 to 43,4

504153580

Unavailable

47

Not Available As Spare Part - Friction Washer

Unavailable

47

Not Available As Spare Part - Friction Washer

Unavailable

48

Retaining Ring

504153886

Unavailable

49

Ball Bearing

293350059

Unavailable

50

Track 20 X 154 X 1,25 | Includes 3200 to 3200b

504154705

Unavailable

51

Not Available As Spare Part - Friction Washer

Unavailable

52

Not Available As Spare Part - Friction Washer

Unavailable

53

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable
