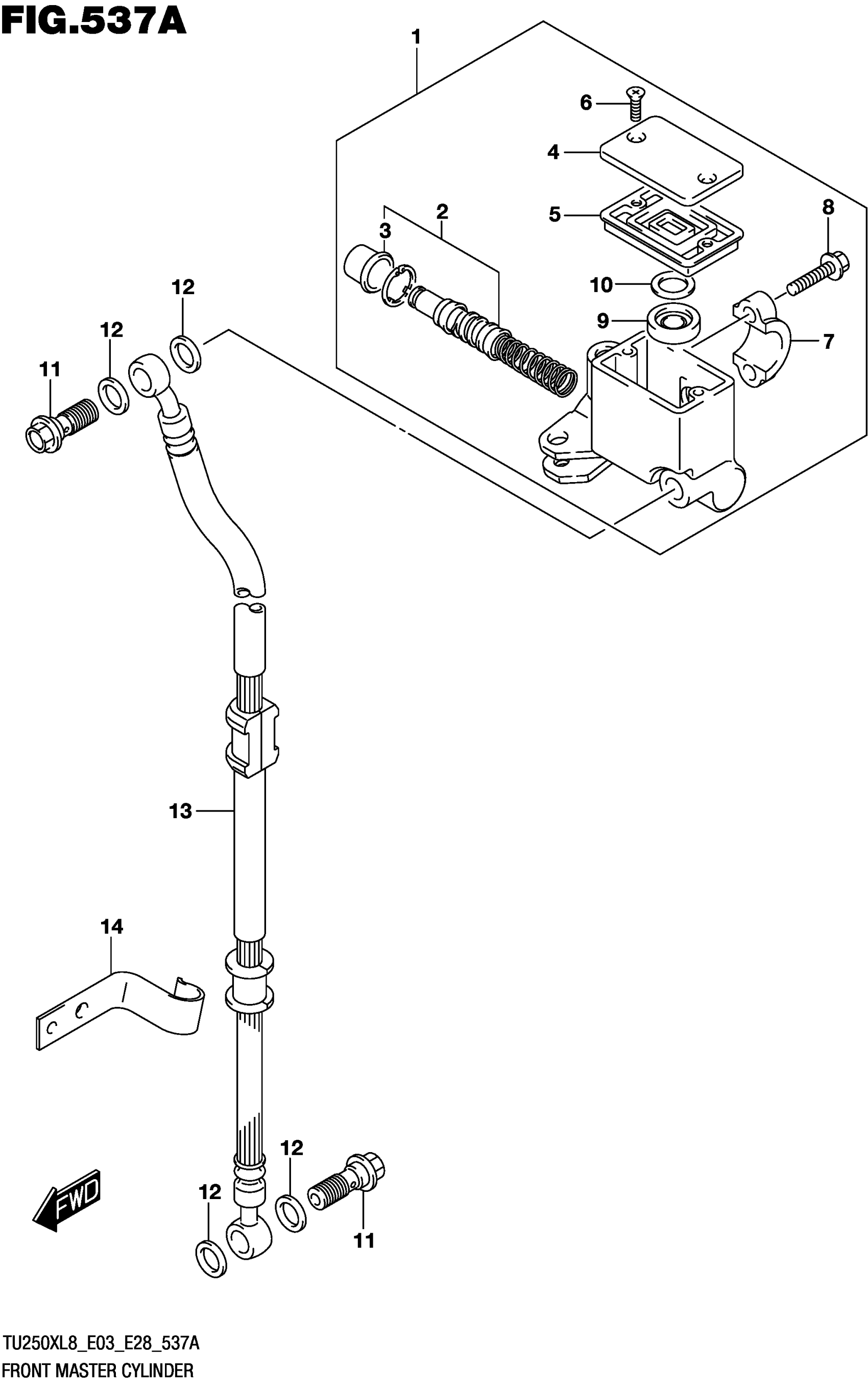

Suzuki TU250XL8 (2018) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY

59600-31D01

$234.57

2

.PISTON/CUP SET

59600-04810

$41.38

3

..BOOT

59666-44300

$5.30

4

.CAP

69669-24A01

$14.23

5

.DIAPHRAGM

59667-44B00

$8.95

6

.SCREW

69689-49300

$1.81

7

.HOLDER

59671-36500

$11.50

8

.BOLT (6X22)

59675-02FA0

$3.49

9

.SEPARATOR

59748-15400

$8.83

10

.PLATE

59749-15400

$2.80

11

UNION (10X1.25X22)

09360-10062

$5.81

12

WASHER (10X15X1.5)

09161-10009

$1.83

13

HOSE

59480-26G01

$138.98

14

CLAMP

59268-26G00

$10.35
