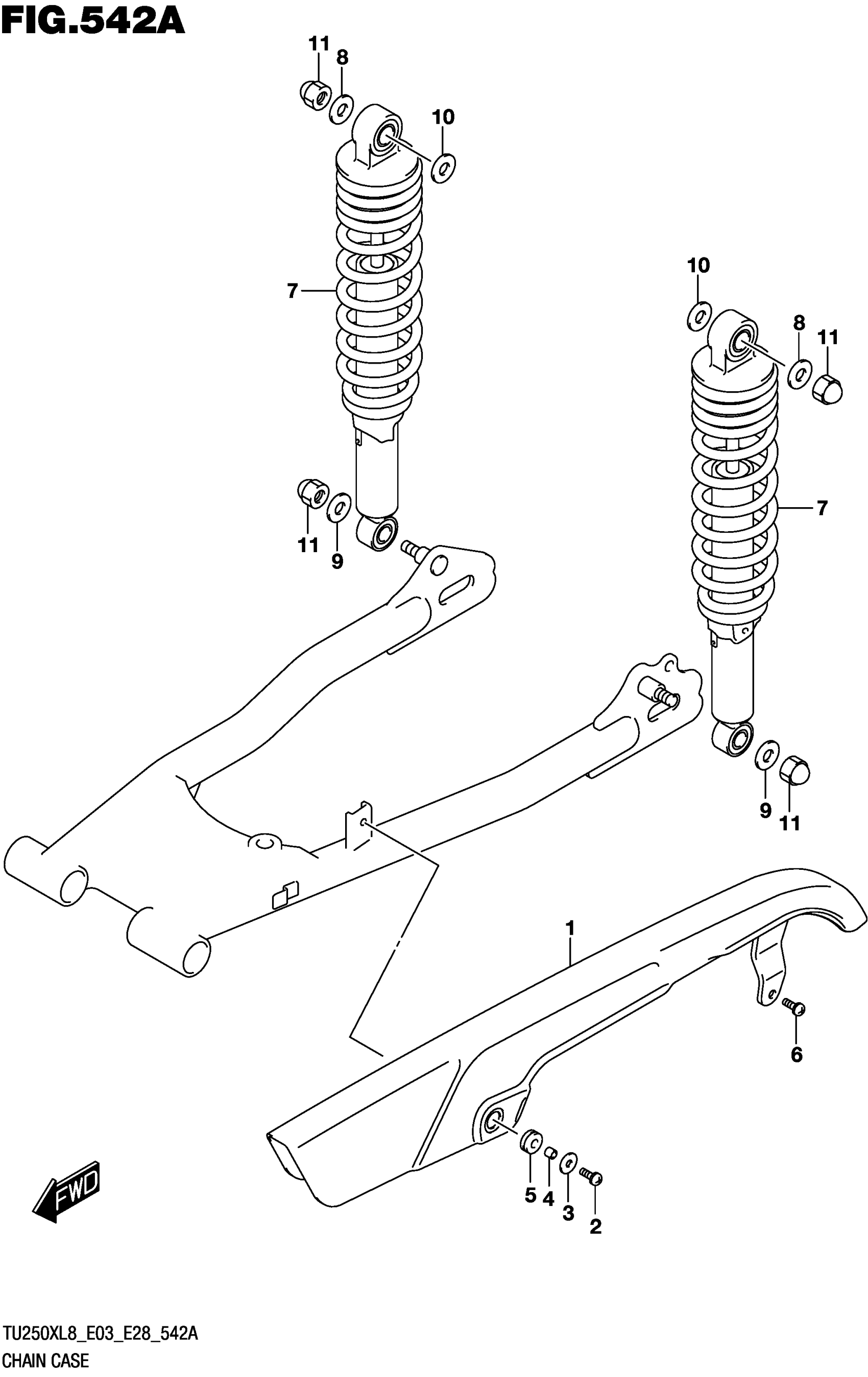

Suzuki TU250XL8 (2018) CHAIN CASE Diagram

#

Description
Price

1

CASE

61310-38300

$151.85

2

SCREW

02112-3616B

$2.53

3

WASHER (6.5X20X1.2)

09160-06077

$1.89

4

WASHER (8.5X20X8)

09169-06065

$4.70

5

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.70

6

SCREW

02112-3616B

$2.53

7

ABSORBER ASSY

62100-26G00

$354.73

8

WASHER (10.5X24X2.3)

09160-10093

$2.19

9

WASHER (10.5X24X2.3)

09160-10093

$2.19

10

WASHER (12.5X24X3.2)

09160-12082

$4.20

11

NUT

08313-10107

$2.53
