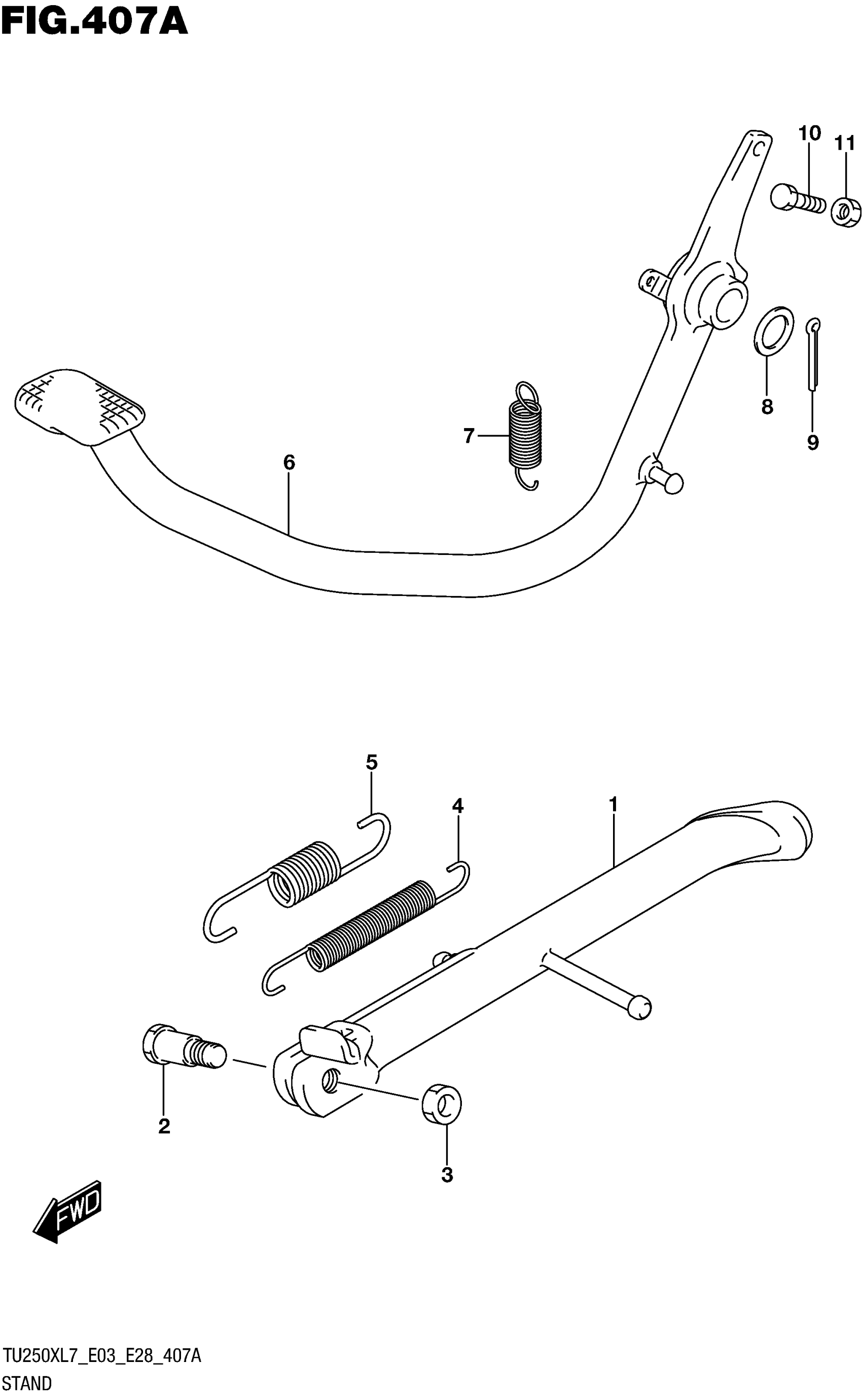

Suzuki TU250XL7 (2017) STAND Diagram

#

Description
Price

1

STAND, PROP

42310-26G10

$197.11

2

BOLT (10X38)

09111-10036

$6.15

3

NUT

08319-3110B

$4.20

4

SPRING

09443-12036

$7.30

5

SPRING

09443-19010

$6.15

6

PEDAL, BRAKE

43110-26G00

$110.73

7

SPRING

09443-14013

$2.83

8

WASHER (15.5X26X2.3)

09160-15002

$1.76

9

COTTER PIN

04111-3025A

$1.43

10

BOLT (6X23)

09100-06009

$1.79

11

NUT

08310-0006B

$2.44
