2017 Suzuki TU250XL7 Front Caliper Diagram

← All diagrams

Find the part on the Front Caliper diagram for your 2017 Suzuki TU250XL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

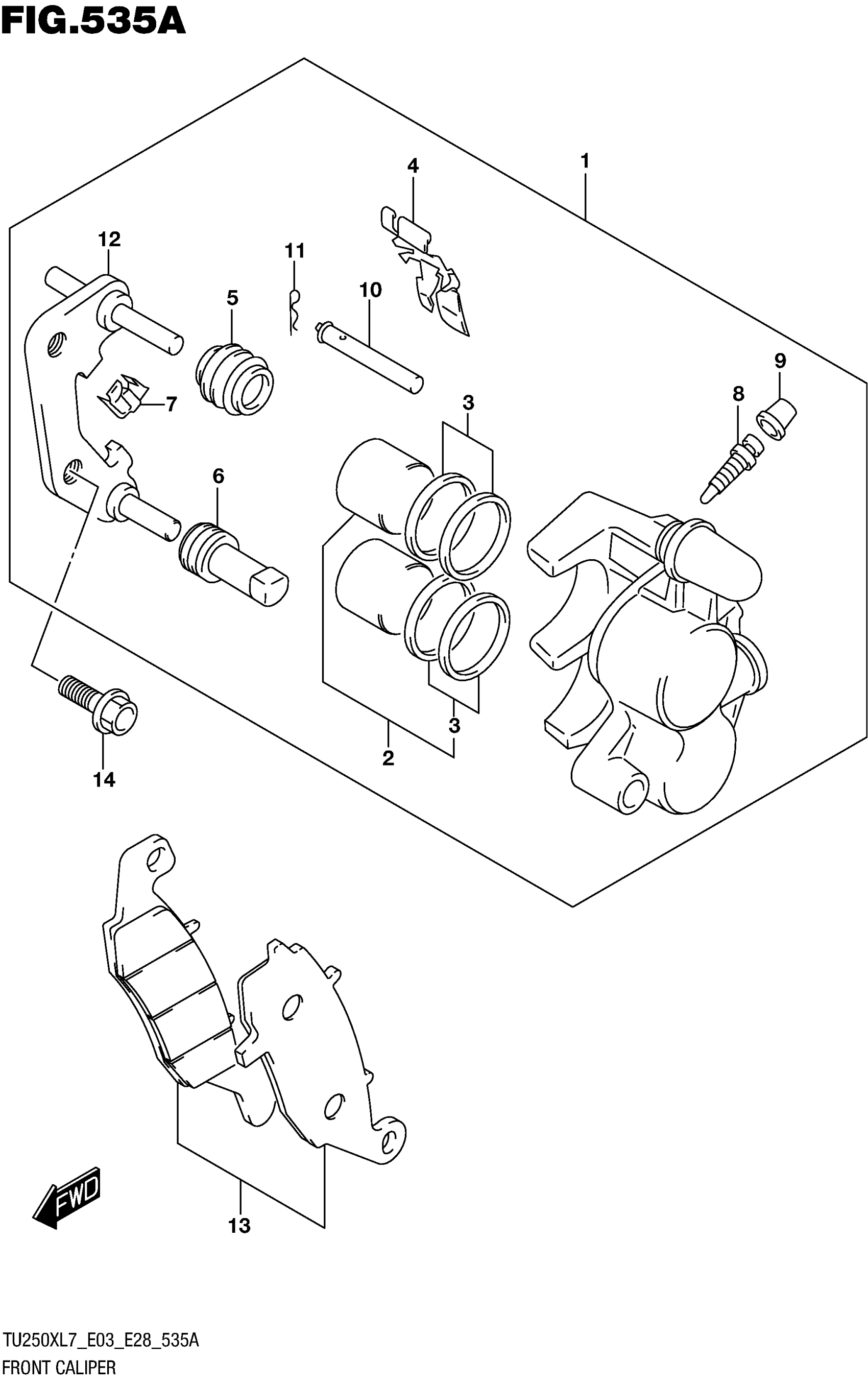

2017 Suzuki TU250XL7 Front Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY, FRONT

59300-33D81-999

1
Out of stock

2

PISTON SET This part replaces 59300-33831.

59301-20820

1
Out of stock

3

..SEAL SET, PISTON

59300-33841

1
Out of stock

4

.SPRING, PAD LH

59315-33D00

1
Out of stock

5

.BOOT, AXLE

59112-44B00

1
Out of stock

6

.INSULATOR, AXLE

59313-36500

1
Out of stock

7

.GUIDE, PAD

59116-33D00

1
Out of stock

8

.BLEEDER

59121-18410

1
Out of stock

9

.CAP, BLEEDER PLUG

55156-66310

1
Out of stock

10

.PIN, PAD

59141-44B01

1
Out of stock

11

.CLIP, PAD PIN

69142-45000

1
Out of stock

12

.CARRIER, CALIPER LH

59350-33D01

1
Out of stock

13

PAD SET

59301-33840

1
Out of stock

14

BOLT

01550-1025B

2
Out of stock
