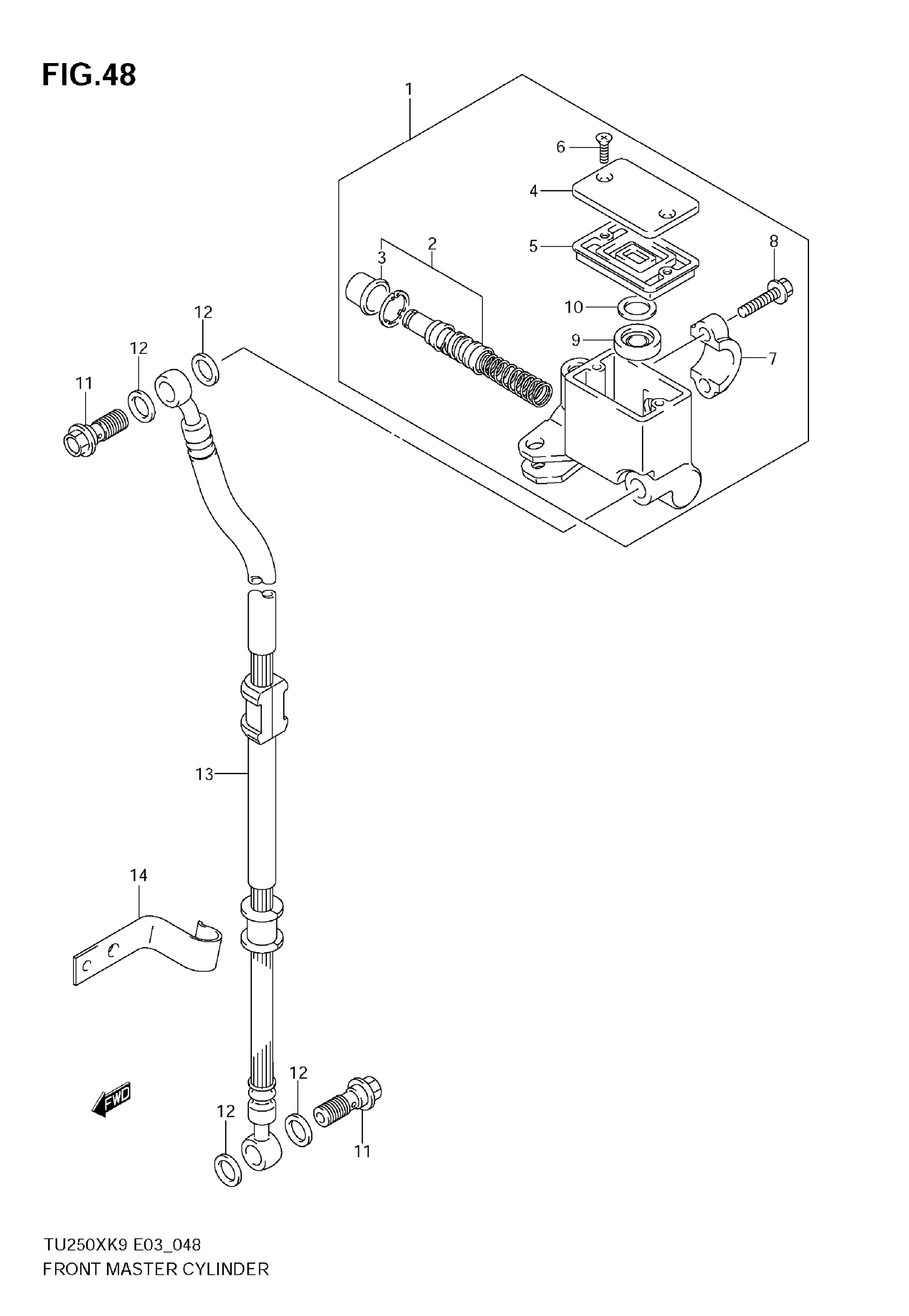

Suzuki TU250X (2009) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER | Includes Item(s) 2 - 10

59600-31D20

$337.88

2

PISTON/CUP SET

59600-04810

$41.38

3

BOOT

59666-44300

$5.30

4

CAP

69669-20C00

$21.87

5

DIAPHRAGM

59667-44B00

$8.95

6

SCREW

69689-49300

$1.81

7

.HOLDER

59671-36500

$11.50

8

BOLT HOLDER SET

59675-19C00

$4.53

9

SEPARATOR

59748-15400

$8.83

10

PLATE

59749-15400

$2.80

11

BOLT

09360-10062

$5.81

12

WASHER (10X15X1.5)

09161-10009

$1.83

13

HOSE, FRONT BRAKE

59480-26G01

$138.98

14

CLAMP, FR BRAKE HOSE LOWER

59268-26G00

$10.35
