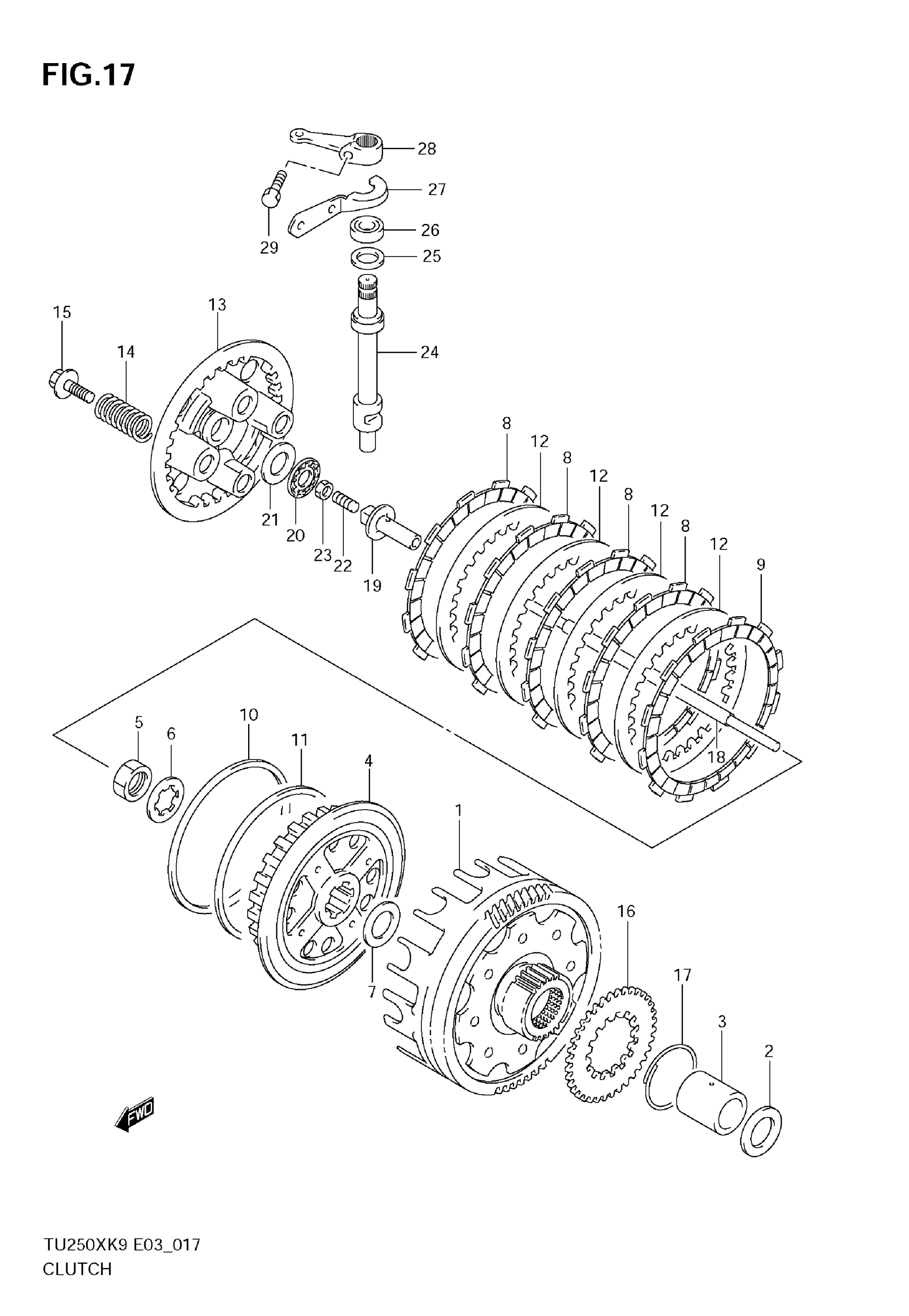

Suzuki TU250X (2009) CLUTCH Diagram

GEAR ASSY,PRI D | NT:68/16 This part replaces 21200-38201.

21200-38202

$315.23

WASHER, PRIMARY DRIVEN GEAR

08211-22363

$4.35

SPACER (22X28X37.5)

09180-22024

Unavailable

HUB, CLUTCH SLEEVE

21411-38201

$136.77

NUT, CLUTCH SLEEVE HUB

09140-22005

$4.20

WASHER, LOCK

09167-22010

$3.58

WASHER

08211-22363

$4.35

PLATE, CLUTCH DRIVE NO.1

21441-37400

$16.59

PLATE, CLUTCH DRIVE NO.2

21442-37401

$17.09

SEAT, WAVE WASHER

21471-37400

$8.95

WASHER, CLUTCH SLEEVE

09164-00004

$10.39

PLATE, CLUTCH DRIVEN

21451-14A00

$8.71

DISC, CLUTCH PRESSURE

21462-27A00

$65.10

SPRING, CLUTCH

21413-13F00

$2.97

BOLT (6X20)

09116-06167

$2.19

GEAR, ENGINE OIL PUMP (NT:38)

16321-38210

Unavailable

CIRCLIP

09380-50001

Unavailable

ROD, CLUTCH PUSH

23110-38201

$20.33

PIECE, CLUTCH PUSH

23121-38201

$30.18

BEARING (15X28X2)

09263-15003

$7.49

WASHER (15.5X28X1)

09160-15045

$3.52

SCREW (6X25)

09134-06010

$2.81

NUT

09140-06023

$2.07

CAMSHAFT, CLUTCH RELEASE

23122-38200

Unavailable

WASHER (14.5X22X1)

09160-14054

$2.25

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$5.70

PLATE, CAMSHAFT OIL SEAL

23117-38200

$6.22

ARM, CLUTCH RELEASE

23271-12D10

Unavailable

BOLT

01500-06207

$1.99
