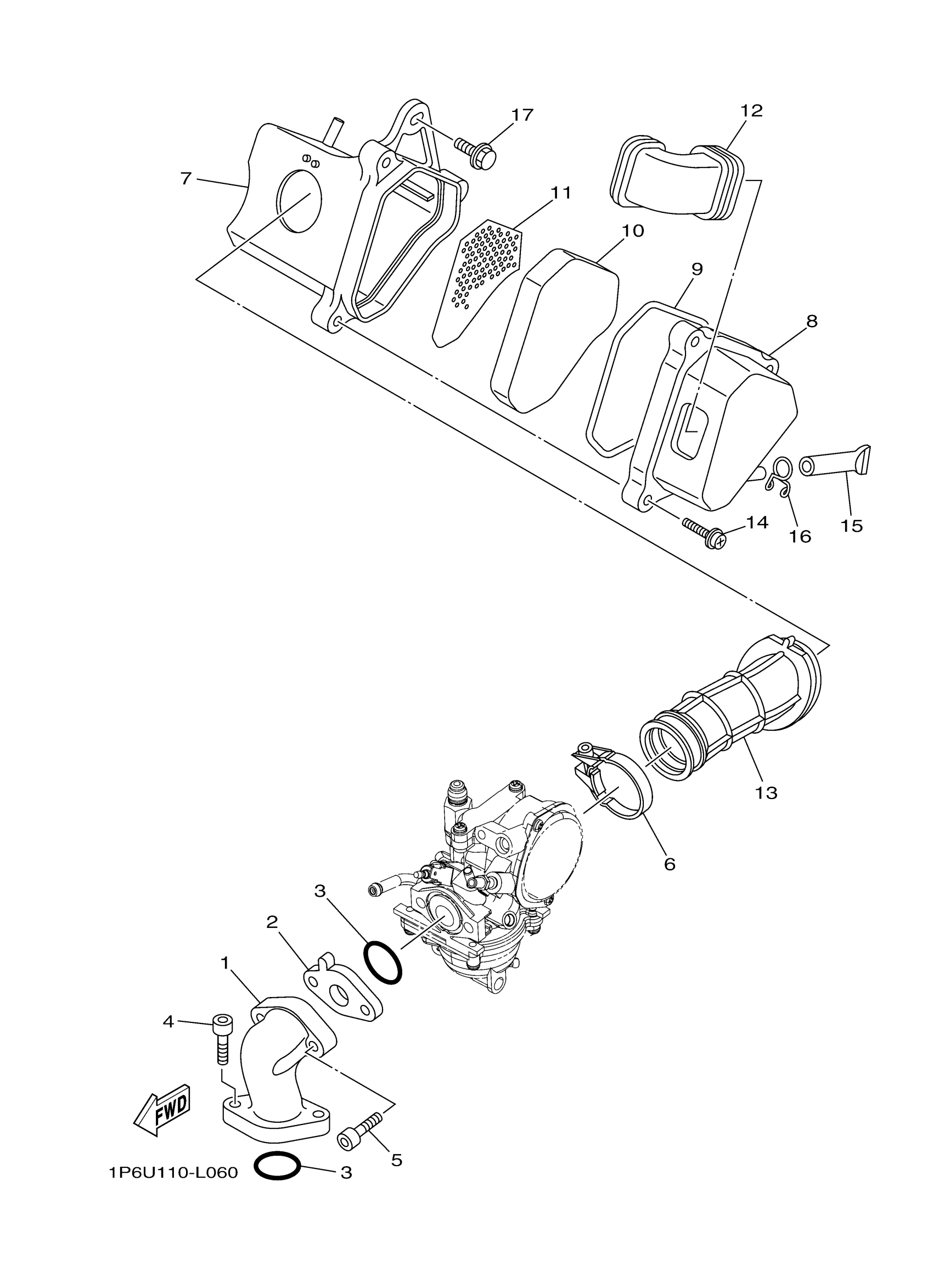

Yamaha TTR50EH (TTR50E) 2CJH 2017 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR

1P6-E3586-20-00

$59.41

2

JT

1P6-E3595-00-00

$6.45

3

O-RING(MF1)

93210-223A2-00

$3.32

4

BOLT,SOCKET

91317-06020-00

Unavailable

5

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$3.56

6

BAND

1P6-E3575-01-00

$24.59

7

CASE, AIR CLEANER 1

1P6-E4411-01-00

Unavailable

8

CAP,CASE 1

1P6-E4412-00-00

$37.99

9

SEAL

1P6-E4452-00-00

$15.19

10

ELEMENT, AIR CLEANER

1P6-E4451-01-00

$5.11

11

PLATE, ELEMENT

1P6-E4472-00-00

$8.26

12

DUCT

1P6-E4437-00-00

$11.76

13

JOINT, AIR CLEANER 1

1P6-E4453-10-00

Unavailable

14

SCREW,PAN HEAD W/WASHER

97602-05225-00

$4.21

15

PIPE,DRAIN

4FP-E443E-00-00

$6.45

16

CLIP

90467-100A1-00

Unavailable

17

BOLT, WITH WASHER

90119-06242-00

Unavailable
