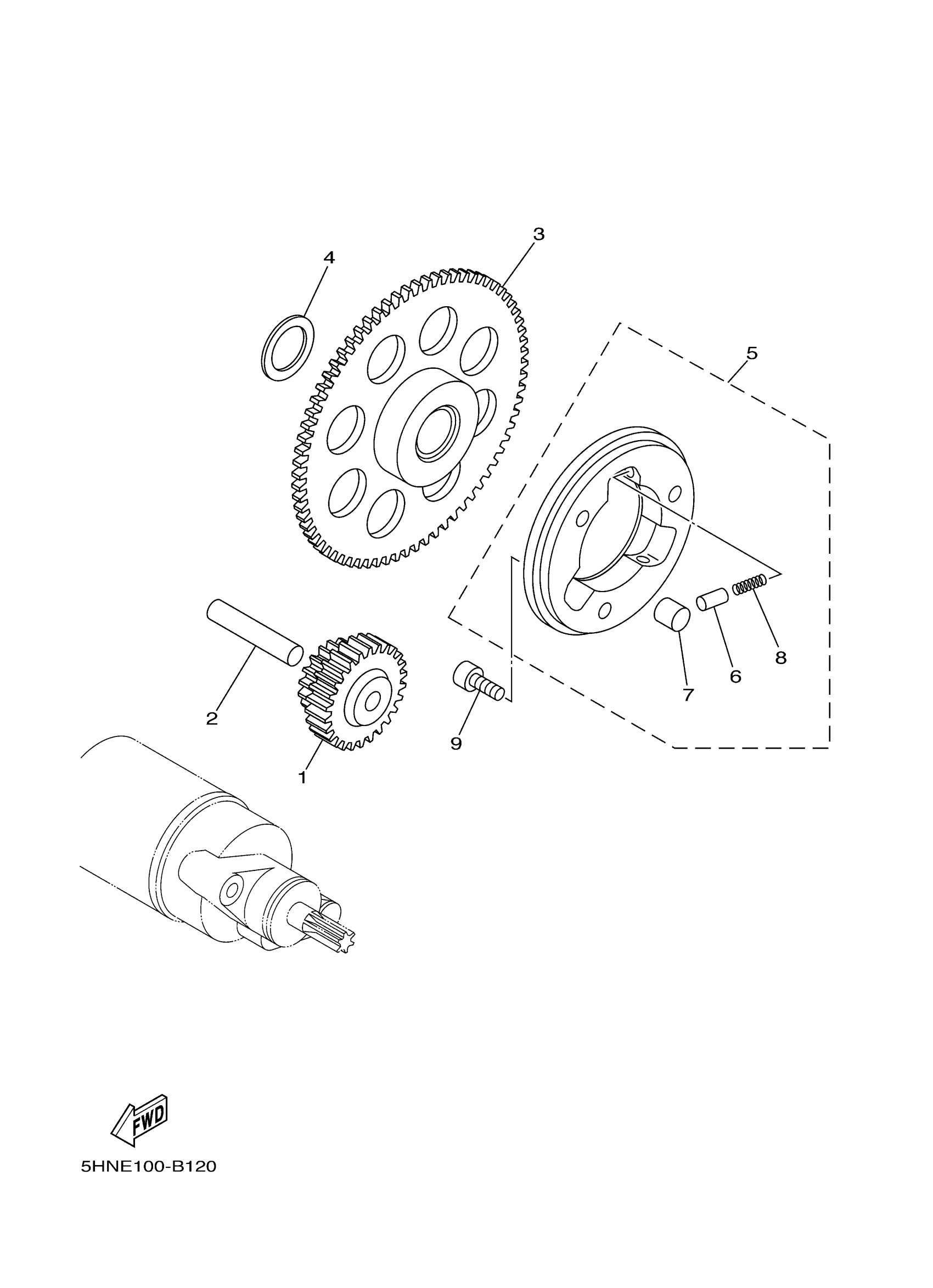

Yamaha TTR50EG (TTR50E) 2CJD 2016 STARTER Diagram

#

Description
Price

1

GEAR, IDLER 1

1P6-E5512-10-00

$21.12

2

PIN, DOWEL

93608-43800-00

$14.66

3

WHEEL, STARTER

4ST-15524-00-00

Unavailable

4

SHIM

296-15644-00-00

$5.19

5

STARTER CLUTCH OUTER ASSY

B7E-E5580-00-00

$163.10

6

CAP, STARTER CLUTCH SPRING

3AY-15583-00-00

$2.38

7

PIN, DOWEL (5J3)

93610-10174-00

$3.57

8

SPRING, COMPRESSION (5J3)

90501-02639-00

$2.37

9

BOLT,SOCKET

91317-06012-00

$5.75
