2014 Yamaha TTR50E (TTR50EE) Starter Diagram

← All diagrams

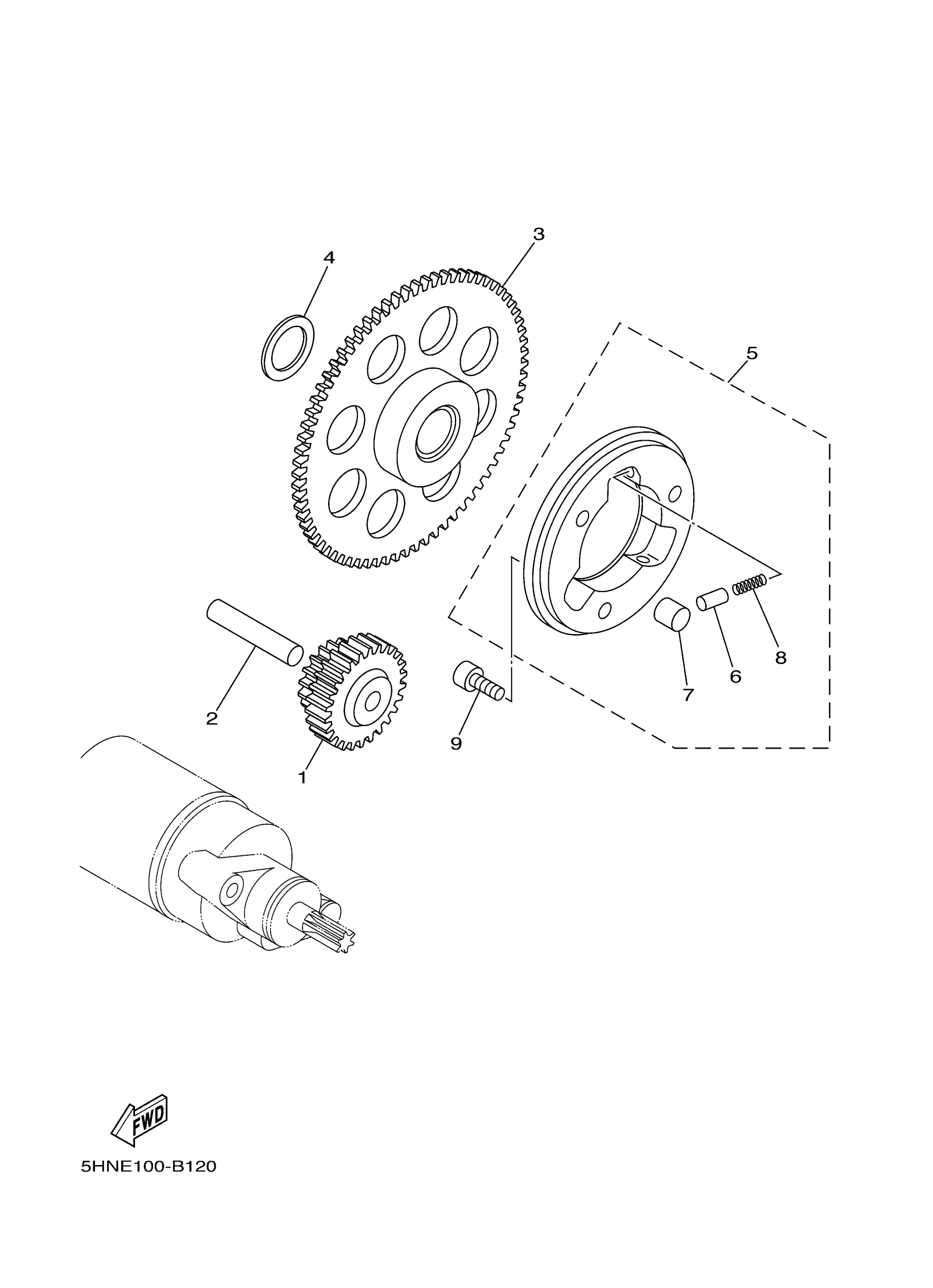

Find the part on the Starter diagram for your 2014 Yamaha TTR50E (TTR50EE), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Yamaha TTR50E (TTR50EE) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, IDLER 1

1P6-E5512-10-00

1

$22.09

In stock

2

PIN, DOWEL

93608-43800-00

1

$15.34

In stock

3

WHEEL, STARTER

4ST-15524-00-00

—

$109.66

In stock

4

SHIM

296-15644-00-00

1

$5.43

In stock

5

STARTER CLUTCH OUTER ASSY

B7E-E5580-00-00

1

$170.63

In stock

6

CAP, STARTER CLUTCH SPRING

3AY-15583-00-00

1

$2.49

In stock

7

PIN, DOWEL (5J3)

93610-10174-00

1

$3.74

In stock

8

SPRING, COMPRESSION (5J3)

90501-02639-00

1

$2.48

In stock

9

BOLT,SOCKET

91317-06012-00

1

$6.17

In stock
