2014 Yamaha TTR50E (TTR50EE) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2014 Yamaha TTR50E (TTR50EE), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

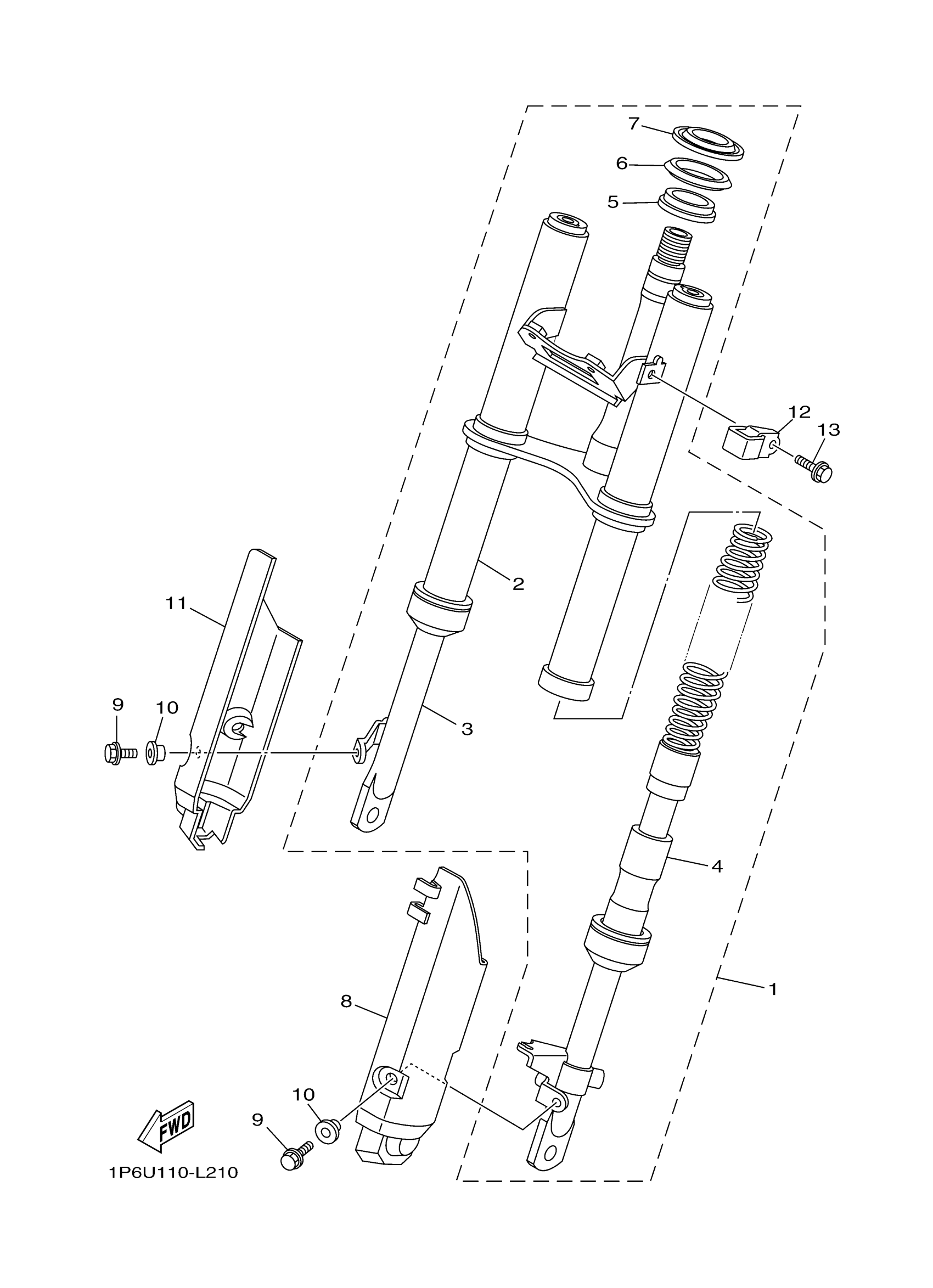

2014 Yamaha TTR50E (TTR50EE) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSY

1P6-F3100-20-00

1
Out of stock

2

UNDER BRACKET COMP.

1P6-F3340-20-00

—
Out of stock

3

. SHOCK ABSORBER ASSY

1P6-F3350-00-00

1
Out of stock

4

. SHOCK ABSORBER ASSY 2

1P6-F3390-00-00

1
Out of stock

5

SPACER

1P6-F3118-00-00

—
Out of stock

6

SEAL, STEERING

1P6-F3462-00-00

—
Out of stock

7

RACE,BALL 1

4FP-F3411-10-00

1

$22.17

In stock

8

PROTECTOR 1

1P6-F315H-10-00

—
Out of stock

9

BOLT, FLANGE(4MY)

95027-06012-00

1

$3.28

In stock

10

COLLAR

90387-07818-00

1

$6.25

In stock

11

PROTECTOR 2

1P6-F315J-10-00

—
Out of stock

12

HOLDER

1P6-F3857-00-00

1

$25.09

In stock

13

BOLT, WASHER BASED

90105-05002-00

1

$1.32

In stock
