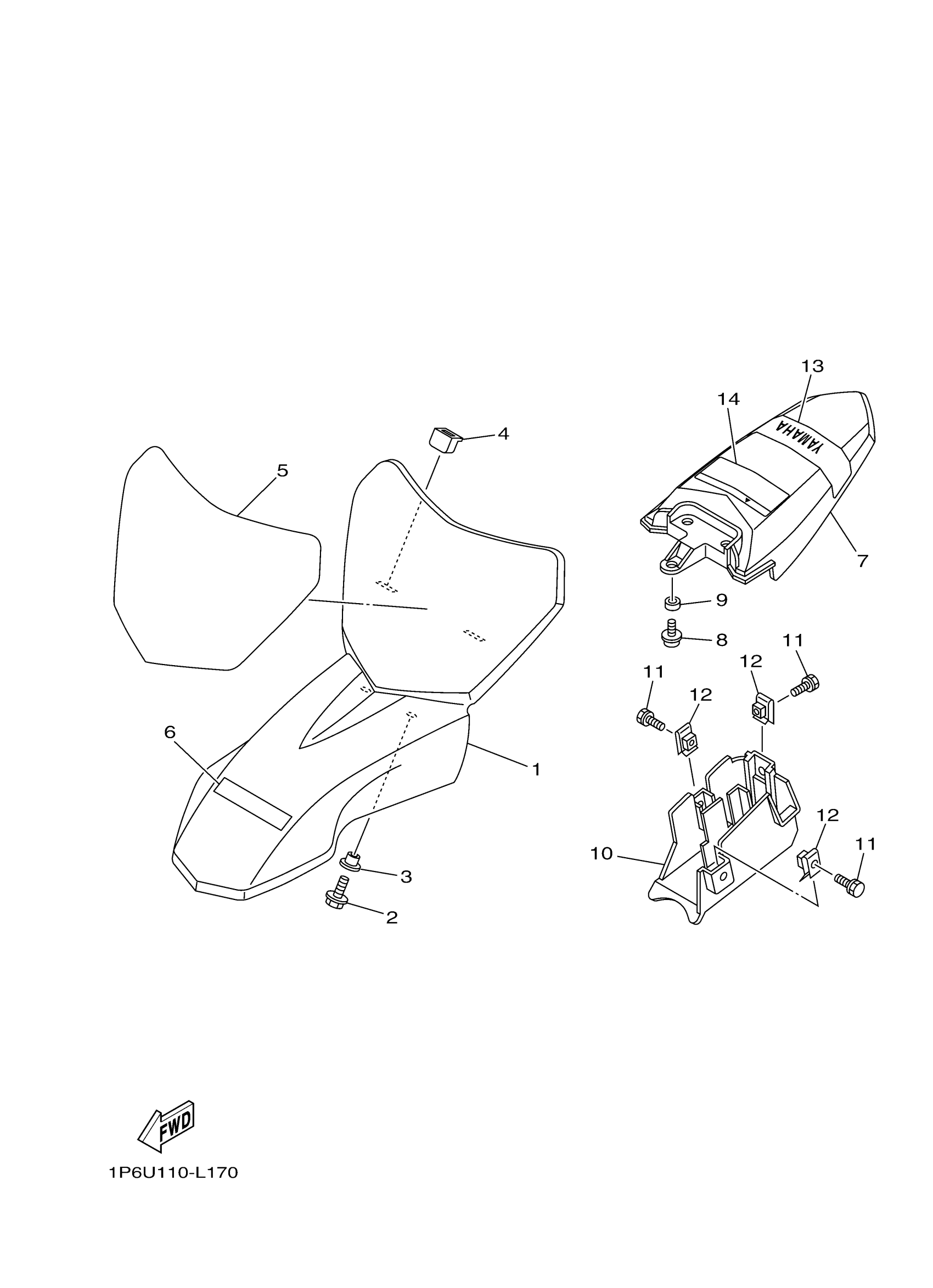

Yamaha TTR50EE (TTR50E) 2CJ5 2014 FENDER Diagram

#

Description
Price

1

FENDER

1P6-F1511-00-00

$47.41

2

BOLT, FLANGE

95817-06012-00

$1.40

3

COLLAR

90387-07818-00

$5.81

4

GROMMET

90480-16185-00

$6.22

5

GRAPHIC 1

1P6-F1569-10-00

$24.88

6

LABEL 1

1P6-F151A-40-00

$4.87

7

FENDER,REAR

1P6-F1611-10-00

$46.00

8

SCREW, WITH WASHER(3YJ)

90159-06182-00

$5.98

9

COLLAR

90387-07808-00

$5.86

10

BOX

1P6-F160E-01-00

$19.30

11

BOLT,HEX.HEADW/WASHER

97502-06514-00

$2.44

12

NUT, SPRING (26H)

90183-06023-00

$6.94

13

EMBLEM 1

1P6-F163G-20-00

$8.83

14

LABEL, CAUTION

3PT-2118K-A2-00

$4.40
