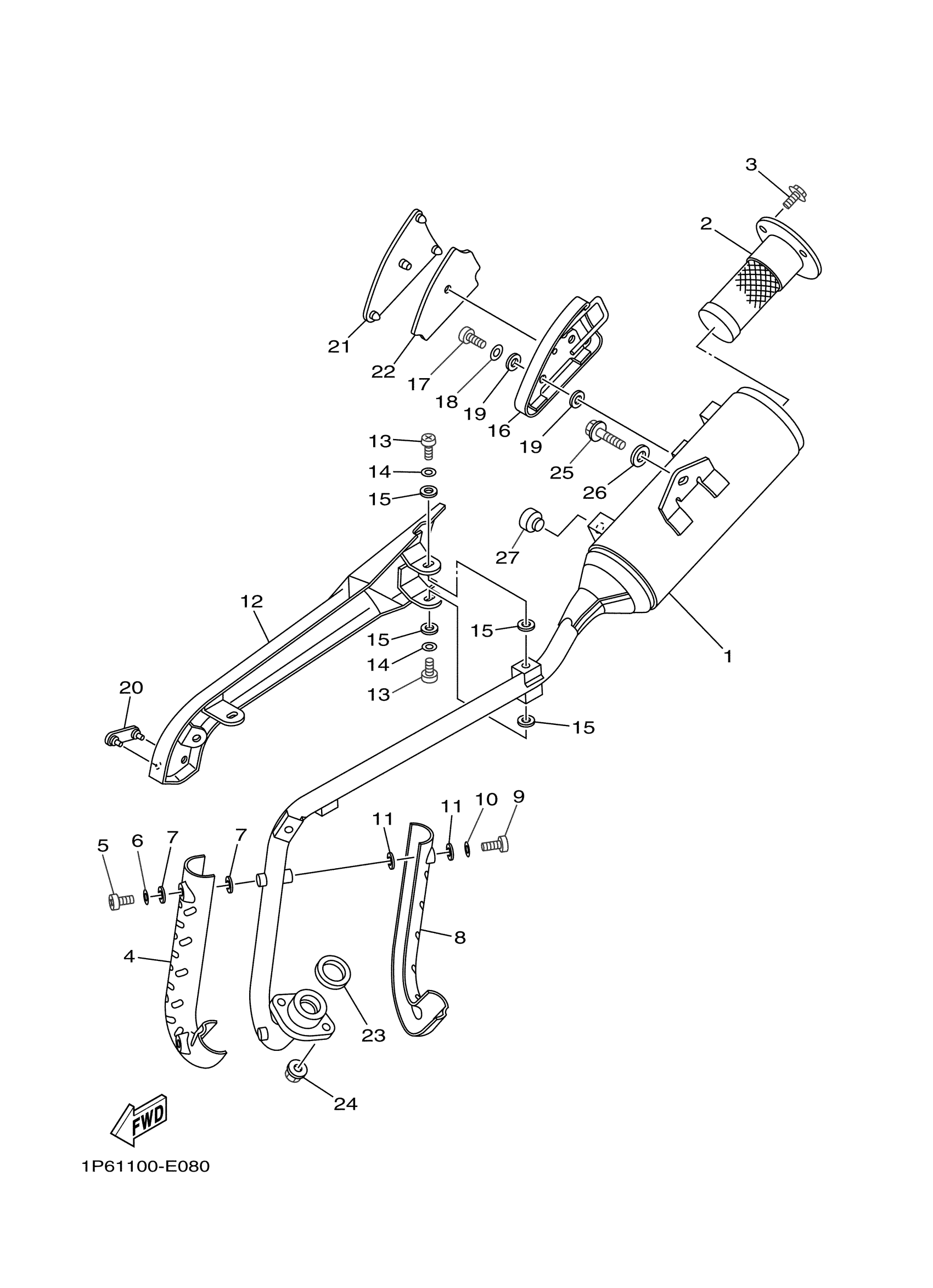

Yamaha TTR50EE (TTR50E) 2CJ5 2014 EXHAUST Diagram

#

Description
Price

1

MUFFLER 1

1P6-E4711-00-00

$318.32

2

SPARK ARRESTER ASSY

1P6-14780-00-00

$125.76

3

BOLT, FLANGE(4MY)

95027-06010-00

$2.31

4

PROTECTOR,MUFFLER

1P6-E4718-00-00

$63.30

5

GASKET, EXHAUST

98507-05008-00

$2.52

6

WASHER(1RW)

92907-05600-00

$0.77

7

WASHER

1P6-E4766-00-00

Unavailable

8

PROTECTOR,MUFFLER

1P6-E4728-00-00

$35.83

9

GASKET, EXHAUST

98507-05008-00

$2.52

10

WASHER(1RW)

92907-05600-00

$0.77

11

WASHER

1P6-E4766-00-00

Unavailable

12

PROTECTER,MUFFLER 3

1P6-E4738-00-00

$91.58

13

SCREW, PAN

98507-06010-00

$2.52

14

WASHER(6TA)

92907-06600-00

$0.73

15

WASHER, PLATE

90201-05017-00

Unavailable

16

PROTECTER,SILENCER

1P6-E4758-00-00

Unavailable

17

SCREW, PAN

98507-06010-00

$2.52

18

WASHER(6TA)

92907-06600-00

$0.73

19

WASHER, PLATE

90201-05017-00

Unavailable

20

COVER,1

1P6-E479H-00-00

Unavailable

21

COVER,2

1P6-E479J-00-00

Unavailable

22

MAT

1P6-E4733-00-00

Unavailable

23

GASKET,EXT.1

1P6-E4613-00-00

Unavailable

24

NUT, FLANGE

95702-06500-00

Unavailable

25

BOLT, FLANGE

95812-08030-00

Unavailable

26

WASHER, PLATE

90201-08048-00

Unavailable

27

DAMPER, LOCATING 1

22W-24181-00-00

Unavailable
