2002 Yamaha TTR250 CA (TTR250PC) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 2002 Yamaha TTR250 CA (TTR250PC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

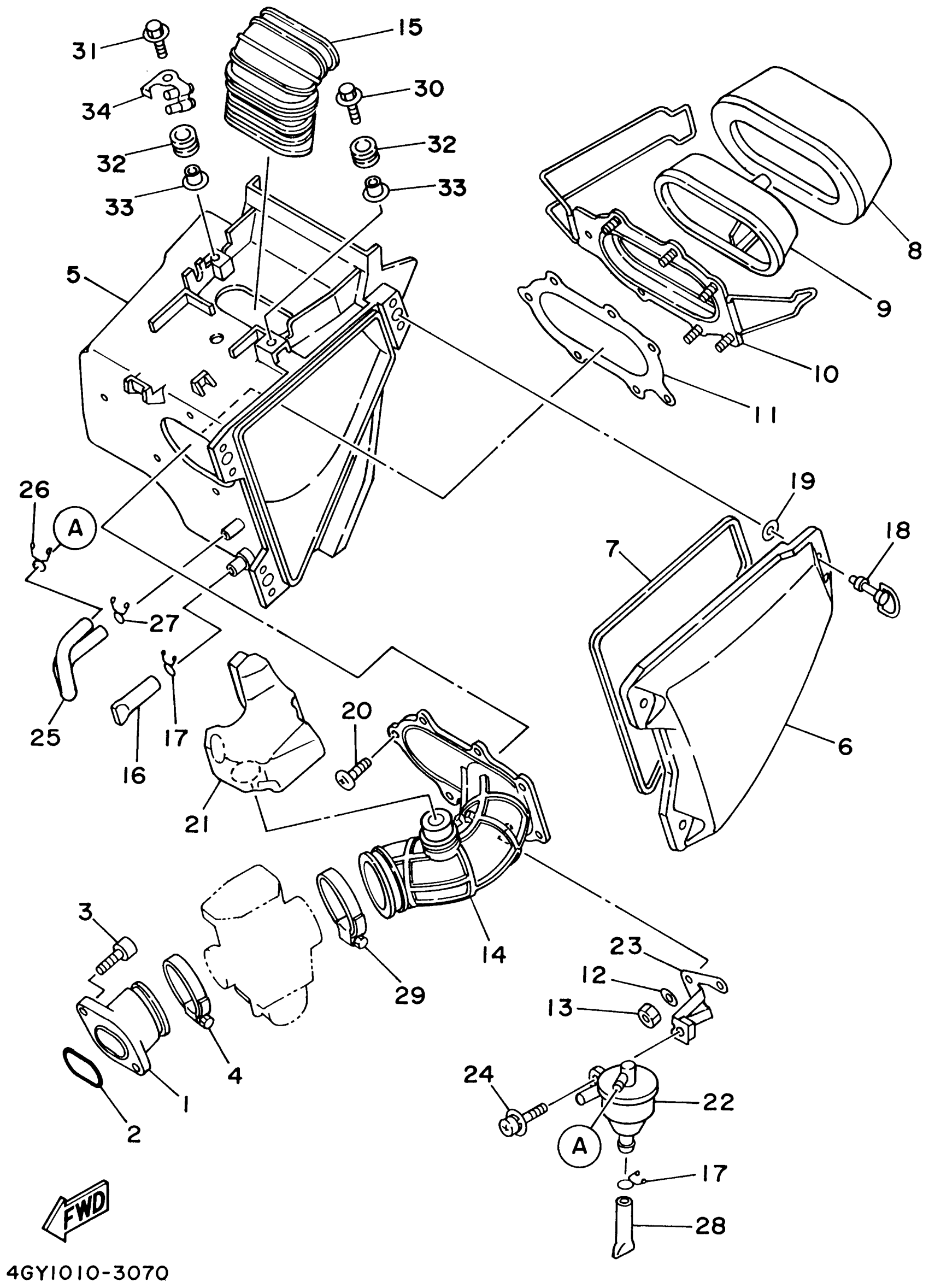

2002 Yamaha TTR250 CA (TTR250PC) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR 1

4GY-13586-00-00

1
Out of stock

2

O-RING(36Y)

93210-40659-00

—
Out of stock

3

BOLT,SOCKET

91317-06020-00

—
Out of stock

4

CLAMP,HOSE

90460-52210-00

1
Out of stock

5

AIR CLEANER CASE ASSY

4GY-14401-01-00

—
Out of stock

6

CAP, CLEANER CASE 1

4GY-14412-00-00

1
Out of stock

7

SEAL

1VJ-14462-00-00

1
Out of stock

8

ELEMENT, AIR CLEANER

1LN-14451-01-00

1
Out of stock

9

GUIDE

4GY-14458-00-00

1
Out of stock

10

HOLDER, GUIDE

4GY-14459-00-00

—
Out of stock

11

SEAL

1LN-14462-00-00

—
Out of stock

12

WASHER, PLAIN LARGE

92907-05200-00

1
Out of stock

13

NUT, U

95617-05100-00

1
Out of stock

14

JOINT, AIR CLEANER 1

4GY-14453-01-00

1
Out of stock

15

DUCT

4GY-14437-00-00

—
Out of stock

16

PIPE, DRAIN

3AJ-1443E-00-00

1
Out of stock

17

CLIP (806-24358-00)

90467-15012-00

—
Out of stock

18

HEAD

4GY-28386-00-00

—
Out of stock

19

WASHER, SPECIAL 1

2TK-21757-00-00

—
Out of stock

20

SCREW, C.R. BINDING (2T4)

90154-05004-00

—
Out of stock

21

CHAMBER, AIR 2

4GY-13591-00-00

1
Out of stock

22

BREATHER ASSY

4GY-15370-00-00

—
Out of stock

23

STAY

4GY-14413-00-00

—
Out of stock

24

SCREW, WITH WASHER (5U8)

90159-06056-00

—
Out of stock

25

PIPE, BREATHER 2

4GY-11167-00-00

—
Out of stock

26

CLIP(1JH)

90467-11106-00

—
Out of stock

27

CLIP (4X4)

90467-12052-00

—
Out of stock

28

PIPE, DRAIN

4GY-1443E-00-00

—
Out of stock

29

HOSE CLAMP ASSY

90450-58002-00

—
Out of stock

30

BOLT, WITH WASHER (30X)

90119-06096-00

—
Out of stock

31

BOLT, WITH WASHER(2WG)

90119-06172-00

—
Out of stock

32

GROMMET(80K)

90480-13428-00

—
Out of stock

33

COLLAR (3L6)

90387-06737-00

—
Out of stock

34

PIPE, JOINT

4GY-14485-00-00

—
Out of stock
