2002 Yamaha TTR250 CA (TTR250PC) Headlight Diagram

← All diagrams

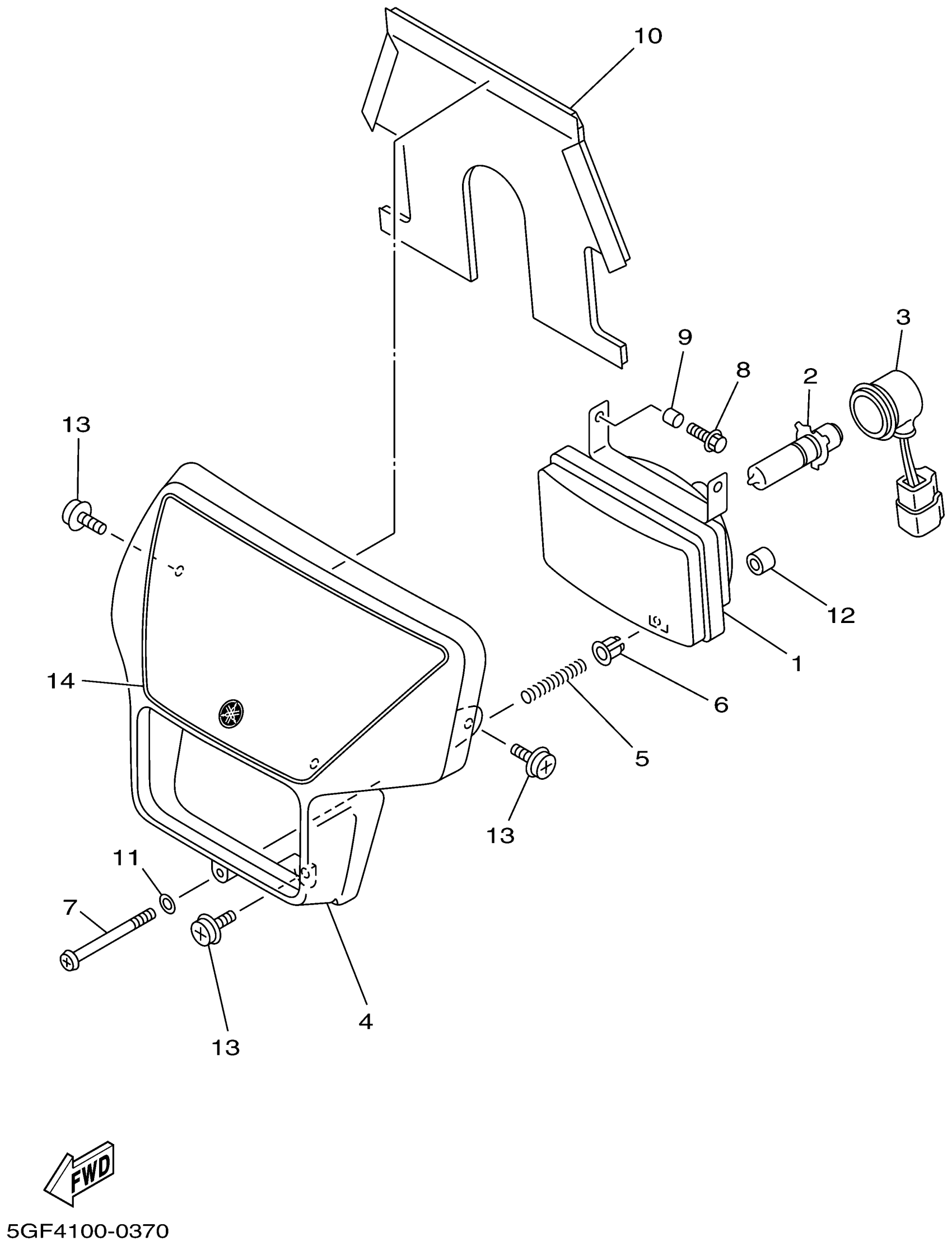

Find the part on the Headlight diagram for your 2002 Yamaha TTR250 CA (TTR250PC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Yamaha TTR250 CA (TTR250PC) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LENS ASSY

4GY-84320-01-00

1
Out of stock

2

BULB, HEADLIGHT

3FW-84314-00-00

1
Out of stock

3

SOCKET CORD ASSY 1

3FW-84340-01-00

1
Out of stock

4

BODY, HEADLIGHT

4GY-84311-30-00

—
Out of stock

5

SPRING, SCREW

4GY-84332-00-00

1
Out of stock

6

NUT, ADJUSTING

50W-84334-00-00

1
Out of stock

7

SCREW, PANHEAD (4G7)

98580-04055-00

—
Out of stock

8

BOLT, SPECIAL

55U-84337-00-00

—
Out of stock

9

SPACER

55U-84328-00-00

1
Out of stock

10

COVER, SOCKET

3XP-84196-00-00

1
Out of stock

11

WASHER, PLAIN (646)

92990-04600-00

1
Out of stock

12

PLUG

2RR-84178-00-00

1
Out of stock

13

SCREW, WITH WASHER(3YJ)

90159-06182-00

1
Out of stock

14

GRAPHIC 1

5GF-28391-10-00

1
Out of stock
