2002 Yamaha TTR250 CA (TTR250PC) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2002 Yamaha TTR250 CA (TTR250PC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

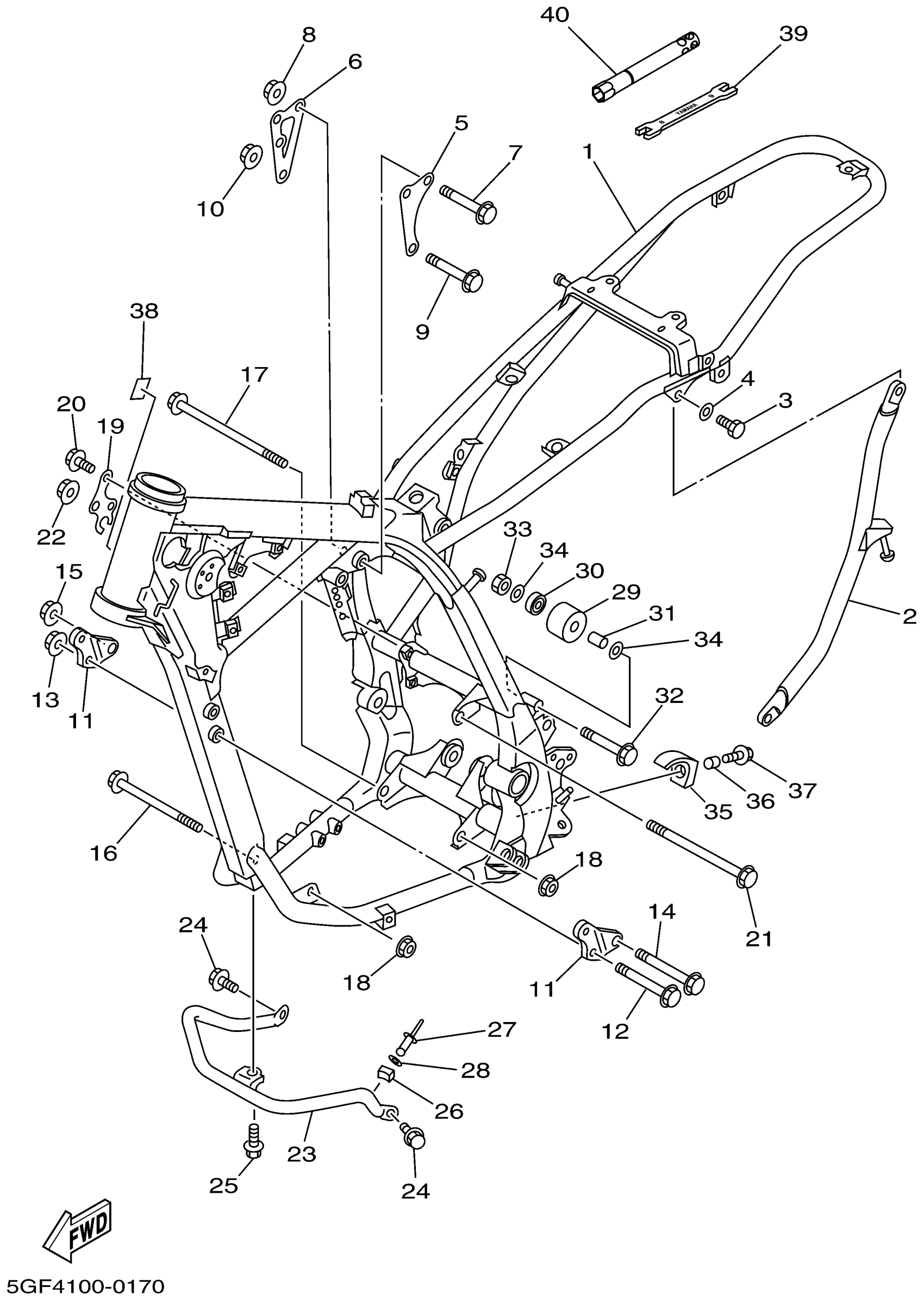

2002 Yamaha TTR250 CA (TTR250PC) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

5GF-21110-00-P0

1
Out of stock

2

BACK STAY SUB COMP. 1

5GF-21105-00-P0

1
Out of stock

3

BOLT(4EW)

90106-08051-00

—

$19.88

In stock

4

WASHER (1T1)

90201-08649-00

1
Out of stock

5

STAY, ENGINE 2

4GY-21315-00-00

—
Out of stock

6

STAY, ENGINE 5

4GY-21318-01-00

—
Out of stock

7

BOLT, FLANGE

95817-08055-00

1

$2.82

In stock

8

NUT, SELF-LOCKING

90185-08169-00

1

$7.09

In stock

9

BOLT, WASHER BASED (4K0)

90105-10169-00

1

$9.98

In stock

10

NUT, SELF-LOCKING(JN5)

95607-10200-00

1

$3.32

In stock

11

STAY, ENGINE 6

4GY-21319-00-00

—
Out of stock

12

BOLT, FLANGE(JN5)

95817-08070-00

1

$3.20

In stock

13

NUT, SELF-LOCKING

90185-08169-00

1

$7.09

In stock

14

BOLT, WASHER BASED(3MA)

90105-10609-00

1

$6.18

In stock

15

NUT, SELF-LOCKING(JN5)

95607-10200-00

1

$3.32

In stock

16

BOLT, WASHER BASED (2H7)

90105-10105-00

—
Out of stock

17

BOLT, WASHER BASED (2T4)

90105-10117-00

—
Out of stock

18

NUT, SELF-LOCKING(JN5)

95607-10200-00

1

$3.32

In stock

19

STAY, ENGINE 3

4GY-21317-00-00

—
Out of stock

20

BOLT, FLANGE(JN5)

95817-08016-00

—

$4.12

In stock

21

BOLT, WASHER BASED (5E3)

90105-10183-00

—

$10.25

In stock

22

NUT, SELF-LOCKING(JN5)

95607-10200-00

1

$3.32

In stock

23

PROTECTOR, ENGINE

4GY-21471-00-00

—
Out of stock

24

BOLT, FLANGE

95817-06012-00

—

$1.49

In stock

25

BOLT, FLANGE

95817-06012-00

—

$1.49

In stock

26

DAMPER 2

4GY-21486-00-00

—
Out of stock

27

RIVET, BLIND (15A)

90267-32071-00

—

$1.21

In stock

28

WASHER, PLATE 8077743700

90201-03313-00

—

$5.20

In stock

29

TENSIONER

4EW-22178-01-00

—
Out of stock

30

BEARING (3X3)

93300-60804-00

—

$11.18

In stock

31

COLLAR(1NL)

90387-086N4-00

—

$8.31

In stock

32

BOLT, FLANGE(4GY)

95027-08060-00

—
Out of stock

33

NUT, HEXAGON (509)

90170-08158-00

—

$1.10

In stock

34

WASHER, PLATE(3XP)

90201-086P8-00

—

$4.35

In stock

35

TENSIONER SET

99999-04397-00

—

$17.12

In stock

36

COLLAR (3H5)

90387-060A3-00

—

$7.22

In stock

37

BOLT, WITH WASHER(81H)

90119-06118-00

—

$6.17

In stock

38

SEAL

1JK-21268-00-00

—
Out of stock

39

WRENCH, SPORKE NIPPLE

23X-28166-00-00

—
Out of stock

40

BOX, SPARK PLUG

1WG-2814F-00-00

1
Out of stock
