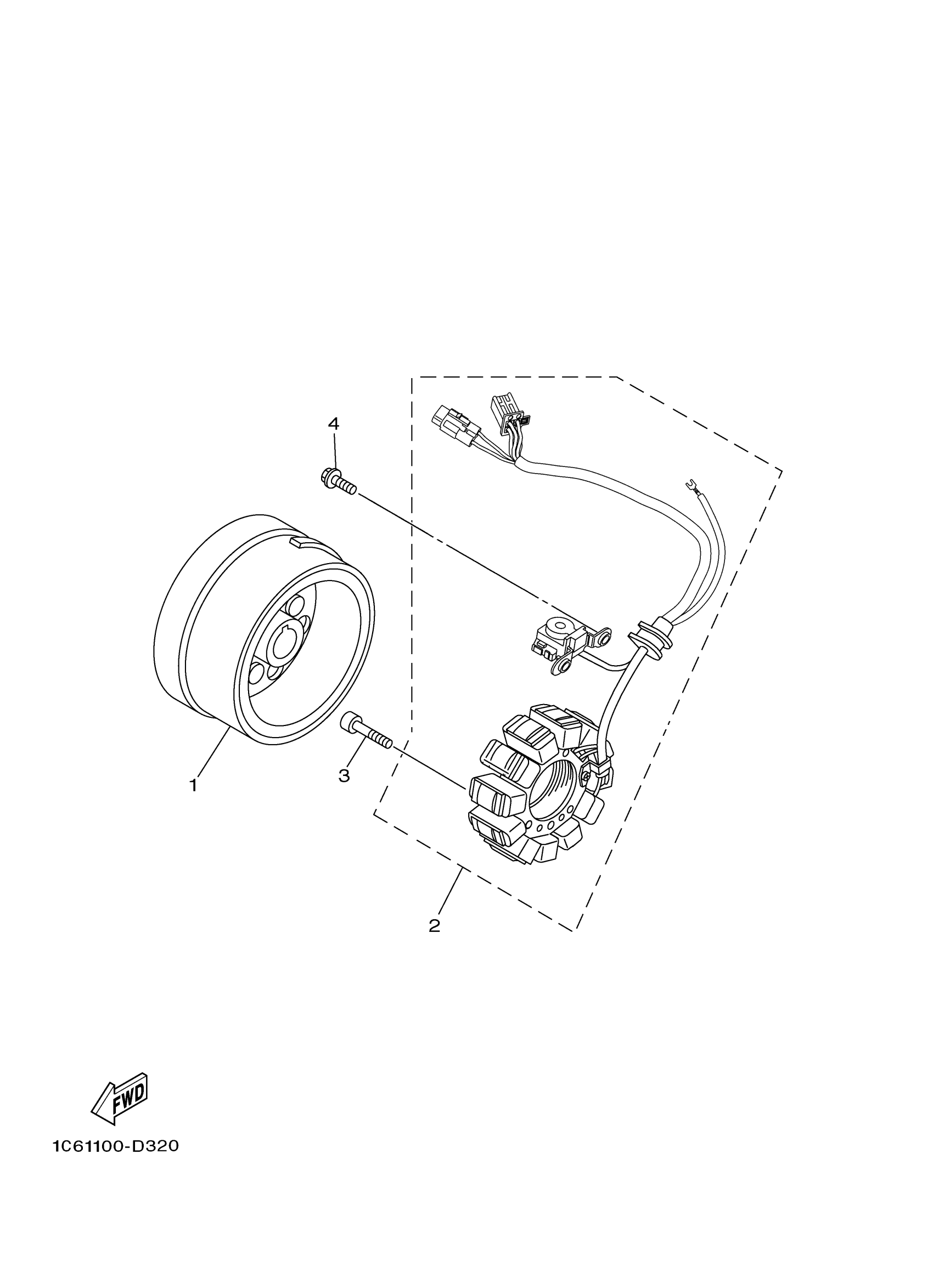

Yamaha TTR230X (TTR230) 1C6B 2008 GENERATOR Diagram

#

Description

Price

1

ROTOR ASSY

1C6-H1450-00-00

$149.41

2

STATOR ASSY

1C6-H1410-00-00

$116.54

3

BOLT, BUTTON HEAD

9201M-06020-00

$0.84

4

BOLT, SMALL FLANGE

95027-06025-00

$2.95
