2018 Yamaha TTR230 (TTR230J) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2018 Yamaha TTR230 (TTR230J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

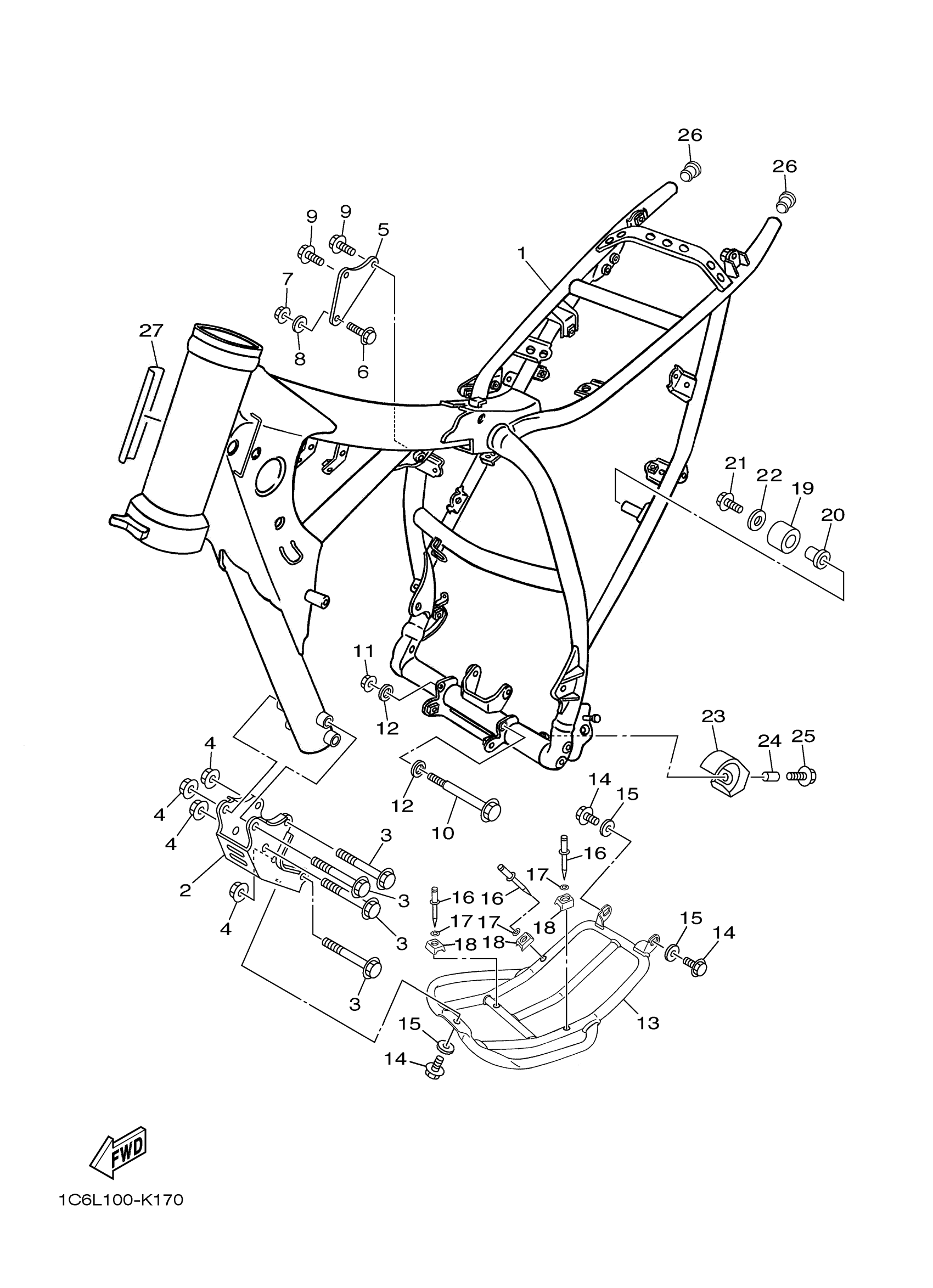

2018 Yamaha TTR230 (TTR230J) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

1C6-F1110-10-33

1
Out of stock

2

STAY, ENGINE 2

1C6-F1316-10-00

—
Out of stock

3

BOLT, FLANGE

90105-08852-00

1
Out of stock

4

NUT, SELF-LOCKING

90185-08169-00

1
Out of stock

5

STAY, ENGINE 1

1C6-F1315-00-00

1
Out of stock

6

BOLT, FLANGE

95817-08055-00

1
Out of stock

7

NUT, SELF-LOCKING

90185-08169-00

1
Out of stock

8

WASHER, PLATE

90201-09801-00

1
Out of stock

9

BOLT, WASHER BASED(JN9)

90105-082A0-00

1
Out of stock

10

BOLT, FLANGE

90105-08856-00

1
Out of stock

11

NUT, SELF-LOCKING

90185-08169-00

1
Out of stock

12

WASHER, PLATE

90201-09801-00

1
Out of stock

13

PROTECTOR, ENGINE

1C6-F1471-00-00

1
Out of stock

14

BOLT, FLANGE

95817-10020-00

1
Out of stock

15

WASHER, PLATE(47X)

90201-101J1-00

1
Out of stock

16

RIVET, BLIND

90267-40W05-00

1
Out of stock

17

WASHER, PLATE

90201-042E0-00

—
Out of stock

18

DAMPER, RUBBER 1

1C6-F1485-00-00

—
Out of stock

19

TENSIONER

5RM-F2178-00-00

—
Out of stock

20

BUSH

5RM-F2184-00-00

—
Out of stock

21

BOLT, SMALL FLANGE

95027-08012-00

—
Out of stock

22

WASHER, PLATE(8AT)

90201-081R9-00

—
Out of stock

23

TENSIONER SET

99999-04397-00

—
Out of stock

24

COLLAR (3H5)

90387-060A3-00

—
Out of stock

25

BOLT, WITH WASHER(81H)

90119-06118-00

—
Out of stock

26

PLUG(55K)

90338-16148-00

—
Out of stock

27

PROTECTOR, FUEL TANK

30S-24141-00-00

—
Out of stock
