2012 Yamaha TTR230 (TTR230B) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 2012 Yamaha TTR230 (TTR230B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

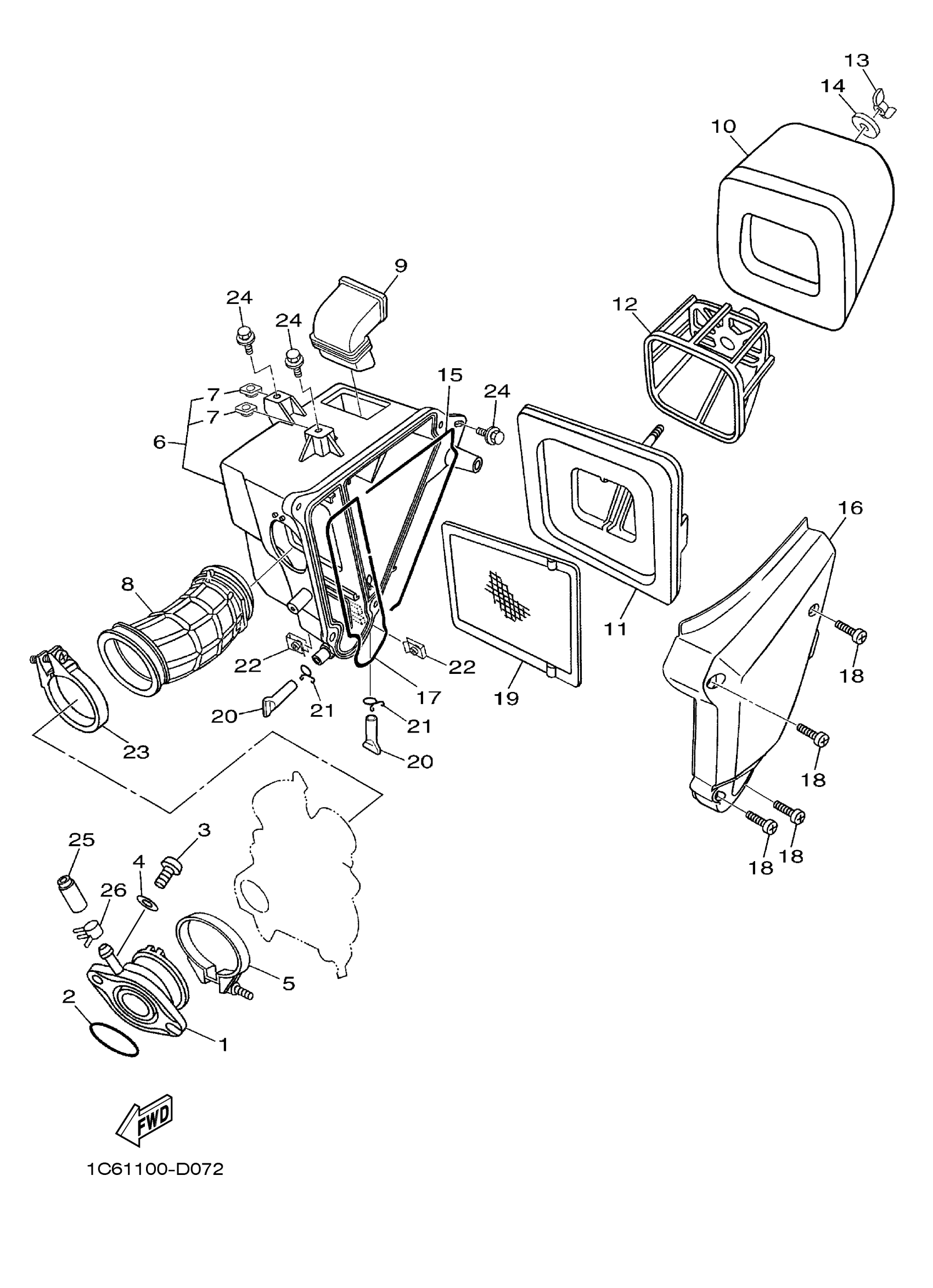

2012 Yamaha TTR230 (TTR230B) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR 1

1C6-E3586-00-00

1

$29.94

In stock

2

O-RING (16G)

93210-35537-00

1

$11.32

In stock

3

BOLT,SOCKET HEAD

91314-06020-00

1

$2.05

In stock

4

WASHER,PLAIN

9290M-06600-00

—

$0.34

In stock

5

HOSE CLAMP ASSY

90450-47002-00

1

$7.15

In stock

6

CASE, AIR CLEANER 1

1C6-E4411-00-00

1

$56.02

In stock

7

. PLATE

1B2-E4477-00-00

1

$1.02

In stock

8

JOINT, AIR CLEANER 1

1C6-E4453-00-00

1

$19.00

In stock

9

DUCT

1C6-E4437-00-00

1

$12.80

In stock

10

ELEMENT, AIR CLEANER

1C6-14451-01-00

1
Out of stock

11

HOLDER, GUIDE

1C6-E4459-00-00

1

$29.74

In stock

12

GUIDE

1C6-E4458-00-00

1

$1.57

In stock

13

NUT, WING (646)

90175-06008-00

1

$1.88

In stock

14

WASHER, PLATE

90201-06086-00

1
Out of stock

15

SEAL

1C6-E4462-00-00

1

$23.66

In stock

16

CAP, CLEANER CASE 1

1C6-E4412-00-00

—

$19.79

In stock

17

SEAL

1C6-E4452-00-00

—

$4.74

In stock

18

SCREW, BINDING

98907-06020-00

—

$6.18

In stock

19

PLATE, ELEMENT

1C6-E4472-00-00

—

$7.88

In stock

20

PIPE, DRAIN

5HH-E443E-01-00

1

$1.23

In stock

21

CLIP (806-24358-00)

90467-15012-00

—
Out of stock

22

NUT, SPRING (26H)

90183-06023-00

—

$7.45

In stock

23

HOSE CLAMP ASSY

90450-49001-00

—
Out of stock

24

BOLT, WITH WASHER

90119-06242-00

—

$5.86

In stock

25

PLUG, BLIND

16G-13569-00-00

—
Out of stock

26

CLIP (3G0)

90467-10039-00

—
Out of stock
