2002 Yamaha TTR225 CA (TTR225PC) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2002 Yamaha TTR225 CA (TTR225PC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

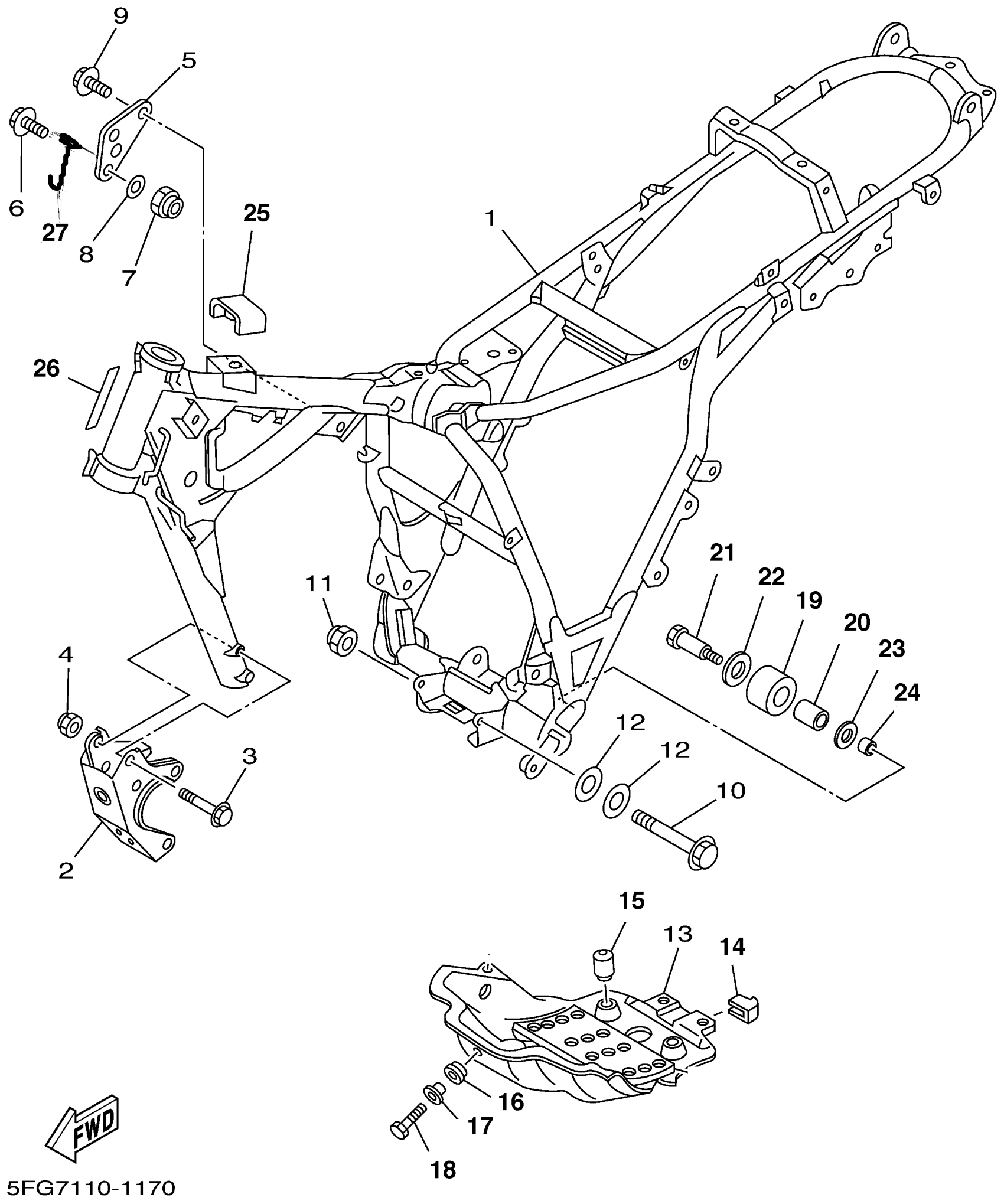

2002 Yamaha TTR225 CA (TTR225PC) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

4VW-F1110-00-P0

1
Out of stock

2

STAY, ENGINE 2

3RW-21316-01-P9

1
Out of stock

3

BOLT, WASHER BASED

90105-084A1-00

1
Out of stock

4

NUT, SELF-LOCKING

90185-08169-00

1
Out of stock

5

STAY, ENGINE 2

1KH-21315-01-00

—
Out of stock

6

BOLT, FLANGE

95817-08050-00

1
Out of stock

7

NUT, SELF-LOCKING

90185-08169-00

1
Out of stock

8

WASHER, PLATE (33N)

90201-094G1-00

1
Out of stock

9

BOLT WASHER BASED (1J7)

90105-08066-00

—
Out of stock

10

BOLT

90105-08024-00

1
Out of stock

11

NUT, SELF-LOCKING

90185-08169-00

1
Out of stock

12

WASHER, PLATE (33N)

90201-094G1-00

1
Out of stock

13

PROTECTOR, ENGINE

4VW-F1471-00-00

1
Out of stock

14

DAMPER, RUBBER 1

36X-21485-00-00

1
Out of stock

15

DAMPER, RUBBER 1

34L-21485-00-00

1
Out of stock

16

GROMMET 839774310000

90480-14023-00

—
Out of stock

17

COLLAR 437216330000

90387-07391-00

—
Out of stock

18

BOLT, HEXAGON

97017-06025-00

—
Out of stock

19

TENSIONER

30X-22178-00-00

—
Out of stock

20

BUSH

4V4-22184-00-00

—
Out of stock

21

BOLT (23X)

90109-08705-00

—
Out of stock

22

WASHER, PLATE(3RR)

90201-133P2-00

—
Out of stock

23

WASHER, PLATE(8AT)

90201-081R9-00

—
Out of stock

24

COLLAR (7R4)

90387-085E1-00

—
Out of stock

25

DAMPER, LOCATING 5

4LR-F4185-00-00

1
Out of stock

26

PLATE, EPA

5FG-2179X-00-00

1
Out of stock

27

GUIDE, WIRE

4VW-F1397-01

1
Out of stock
