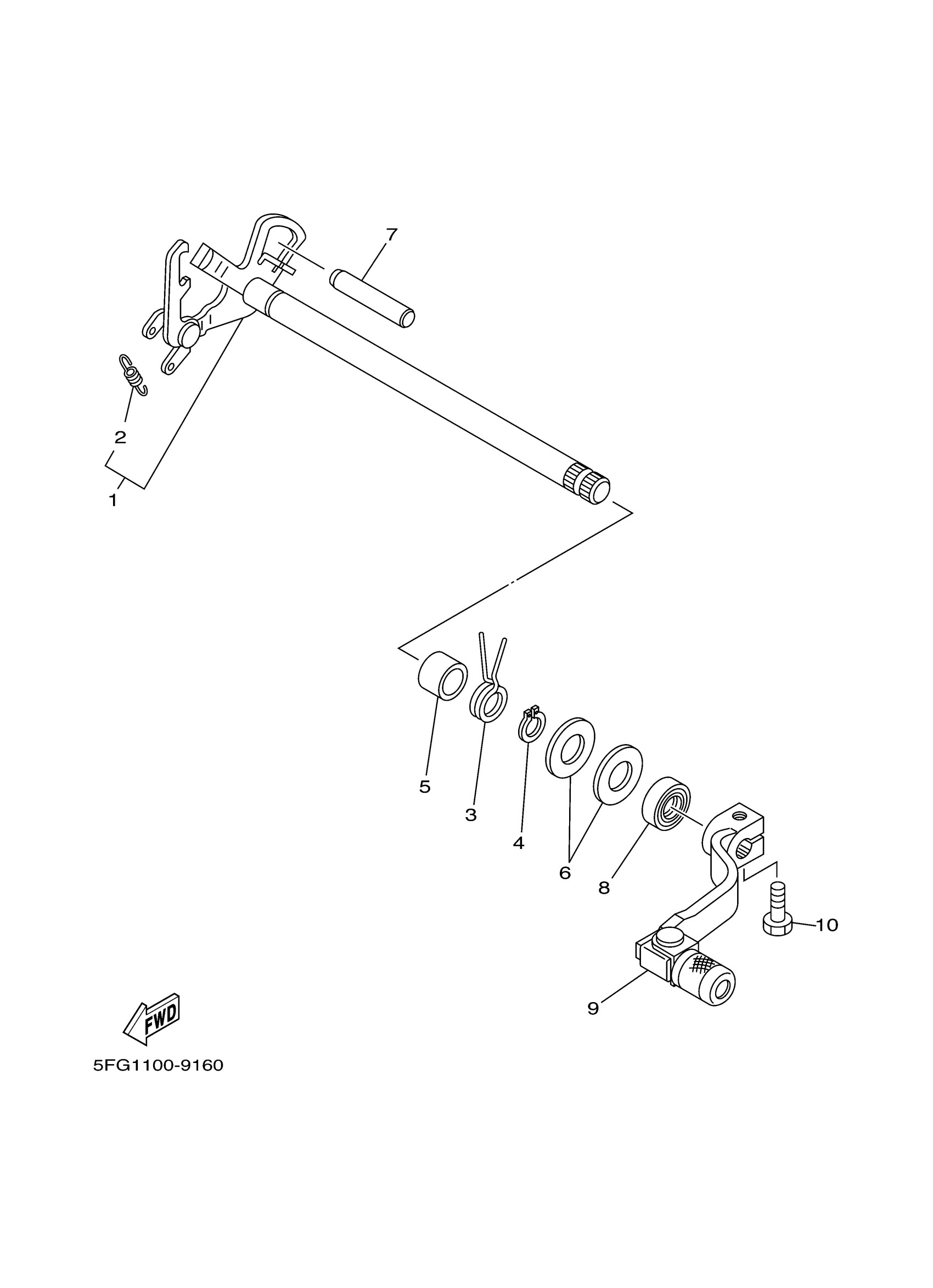

Yamaha TTR225MC (TTR225 CA) 5FG5 2000 SHIFTER Diagram

#

Description
Price

1

SHIFT LEVER ASSY

5H0-18120-02-00

$87.43

2

SPRING, TENSION (4H7)

90506-08227-00

$2.80

3

SPRING, TORSION(1KH)

90508-26705-00

$8.09

4

CIRCLIP

99006-10600-00

$6.45

5

COLLAR

90387-12033-00

$6.08

6

WASHER

90201-12588-00

$5.93

7

PIN, DOWEL (4H7)

93608-50158-00

$6.58

8

OIL SEAL (12X22X5-371)

93102-12106-00

$9.45

9

SHIFT PEDAL ASSY

2HF-18110-02-00

$47.56

10

BOLT, HEXAGON

97017-06020-00

$2.37
