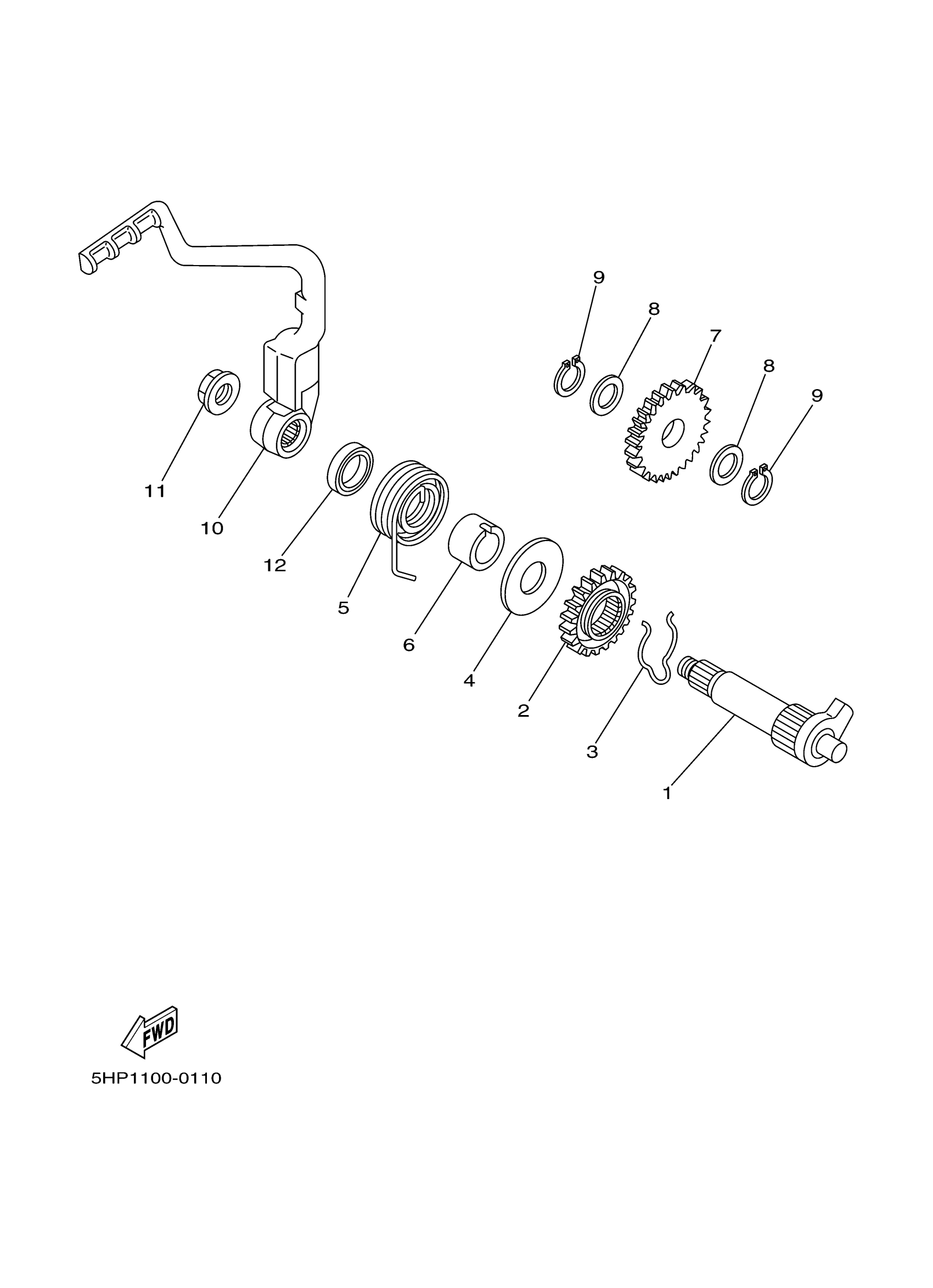

Yamaha TTR125LEX (TTR125LE) 1B2S 2008 STARTER Diagram

#

Description
Price

1

KICK AXLE ASSY

5VL-E5660-01-00

Unavailable

2

GEAR, KICK

10V-15641-00-00

Unavailable

3

CLIP 315156870000

90468-26048-00

$4.89

4

WASHER, PLATE (10V)

90201-202F9-00

$6.77

5

SPRING, TORSION(37F)

90508-26667-00

$8.45

6

SPACER (3C11)

3C1-E5666-00-00

Unavailable

7

GEAR, KICK IDLE

5HP-15651-00-00

Unavailable

8

WASHER, PLATE(JA8)

90201-153P0-00

$6.76

9

CIRCLIP(1AR)

99009-15400-00

$4.89

10

KICK CRANK ASSY

5HP-15620-10-00

$193.79

11

NUT(1EE)

90179-12659-00

$5.02

12

OIL SEAL

93109-20069-00

$6.95
