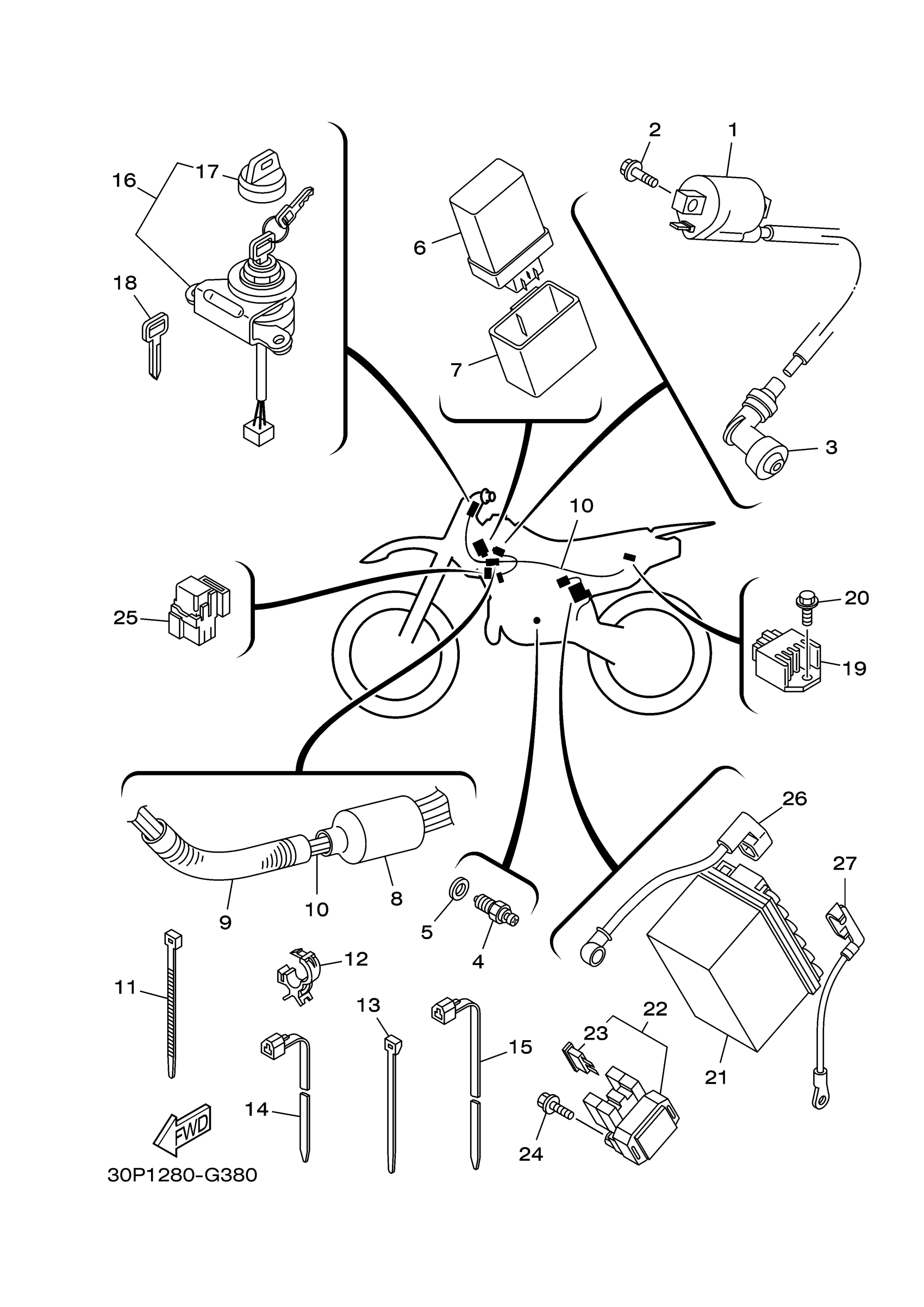

Yamaha TTR125LEB (TTR125LE) 19CS 2012 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITION COIL ASSY

3KJ-82310-13-00

Unavailable

2

BOLT, FLANGE(JL8)

95880-06016-00

$3.41

3

PLUG CAP ASSY

4BP-82370-01-00

$29.71

4

NEUTRAL SWITCH ASSY

5HH-H2540-02-00

$16.92

5

GASKET

90430-09809-00

$0.26

6

C.D.I. UNIT ASSY

5HP-85540-01-00

Unavailable

7

BAND

1B2-H5546-00-00

Unavailable

8

COVER, CONNECTER

1B2-H2599-00-00

Unavailable

9

HOSE, WITH SPRING

90447-19004-00

$2.73

10

WIRE HARNESS ASSY

19C-H2590-10-00

Unavailable

11

CLAMP(MF1)

90464-15152-00

$4.07

12

CLAMP(4HM)

90464-15192-00

$5.75

13

BAND

1UA-82591-00-00

$3.85

14

CLAMP

90464-13077-00

$6.22

15

CLAMP(4FM)

90464-15195-00

$2.57

16

MAIN SWITCH ASSY

5HP-82510-01-00

Unavailable

17

CAP, KEY

3HN-82579-00-00

Unavailable

18

KEY, BLANK (A-TYPE)

90890-56001-00

Unavailable

18

KEY, BLANK (B-TYPE)

90890-56002-00

Unavailable

19

RECTIFIER & REGULATOR ASSY

4CK-81960-01-00

Unavailable

20

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

21

BATTERY ASSY (GT4L-BS)

GTX-4LBS0-00-00

$46.68

22

STARTER RELAY ASSY (RC19-028)

5HH-81940-02-00

Unavailable

23

FUSE (10A)

42X-82151-00-00

Unavailable

24

BOLT, SMALL FLANGE

95027-06008-00

Unavailable

25

RELAY ASSY (8DM-00)

8DM-81950-00-00

Unavailable

26

WIRE, PLUS LEAD

1B2-H2115-00-00

Unavailable

27

WIRE, MINUS LEAD

1B2-H2116-00-00

Unavailable
