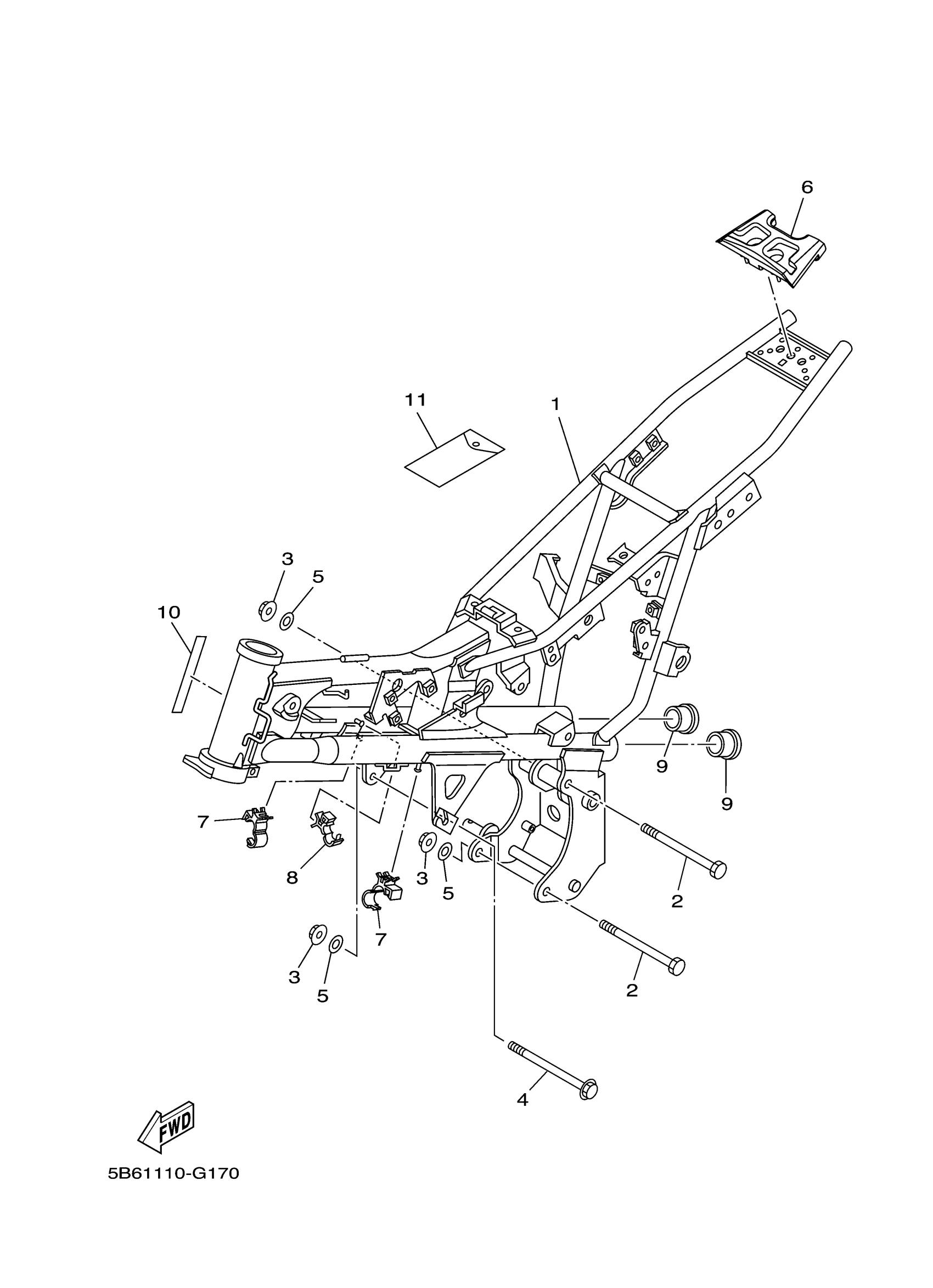

Yamaha TTR110EM (TTR110E) B51S 2021 FRAME Diagram

#

Description
Price

1

FRAME COMP.

5B6-21110-00-00

$1,174.99

2

BOLT, FLANGE(4EM)

95817-08120-00

$3.57

3

NUT(4KM)

90179-08674-00

$5.31

4

BOLT, WASHER BASED HEXAGON (5T

90105-08223-00

$4.05

5

WASHER, PLATE

90201-084K5-00

$1.08

6

DAMPER

5B6-2139X-00-00

Unavailable

7

CLAMP(4HM)

90464-15192-00

$5.75

8

CLAMP(4GY)

90464-10190-00

$6.76

9

PLUG, BLIND

5B6-21279-00-00

$13.42

10

PROTECTOR, FUEL TANK

3HA-24141-00-00

Unavailable

11

TOOL KIT

5HN-28100-01-00

Unavailable
