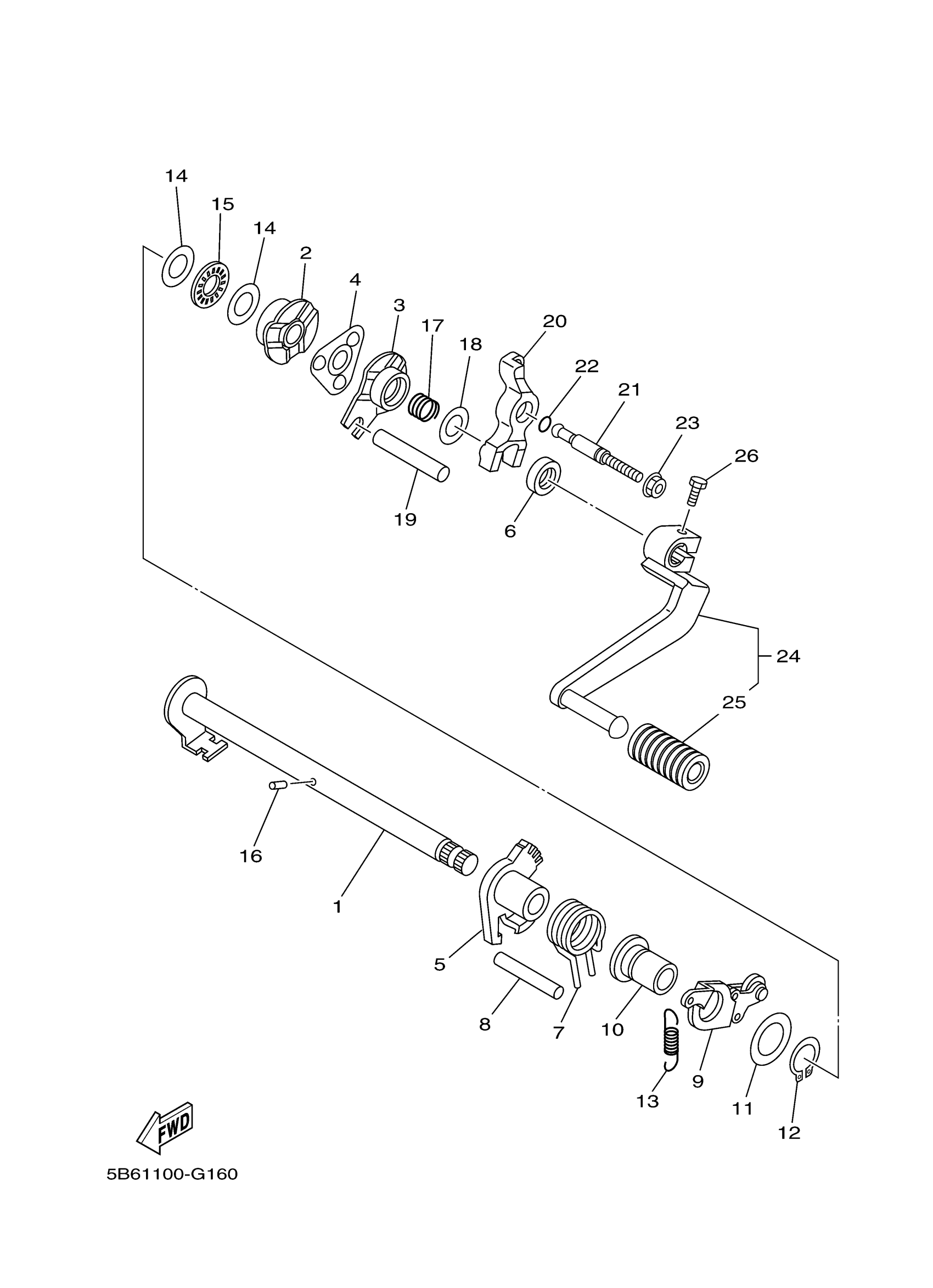

Yamaha TTR110EJ (TTR110E) B51D 2018 SHIFT SHAFT Diagram

#

Description
Price

1

SHIFT SHAFT ASSY (45C1)

5TP-E8101-01-00

$17.29

2

GUIDE (JUPITER Z)

5TP-E8179-00-00

Unavailable

3

GUIDE, SHIFT (45C1)

5TP-E8172-01-00

$6.49

4

HOLDER, PAWL

4GL-18181-00-00

$4.97

5

LEVER, SHIFT 4 (JUPITER-Z)

5TP-E8152-10-00

$15.21

6

OIL SEAL (12X22X5-371)

93102-12106-00

$9.45

7

SPRING, TORSION

90508-29007-00

$9.03

8

PIN, DOWEL (722)

93608-50149-00

$6.88

9

STOPPER LEVER ASSY

5TP-E8140-00-00

$8.14

10

BOSS 1

1DY-E8699-00-00

$2.12

11

WASHER, PLATE (30X)

90201-177G4-00

$6.34

12

CIRCLIP(1EY)

99009-17400-00

$3.65

13

SPRING (JUPITER-Z)

5TP-E8337-00-00

$0.90

14

WASHER, PLATE(2JG)

90201-126L0-00

$4.85

15

BEARING

93340-21210-00

Unavailable

16

PIN,DOWEL (603)

93604-10011-00

Unavailable

17

SPRING, COMPRESSION(2JG)

90501-125E9-00

Unavailable

18

WASHER, PLATE (4N0)

90201-126A7-00

Unavailable

19

PIN, SHIFT (VEGA-R)

5LM-E8173-00-00

Unavailable

20

ARM, SHIFT 3

5WT-E817A-00-00

Unavailable

21

SCREW, ADJUSTING

4YS-E8186-00-00

Unavailable

22

O-RING (26H)

93210-06632-00

Unavailable

23

NUT, FLANGE

95702-06500-00

Unavailable

24

SHIFT PEDAL ASSY

5B6-18110-00-00

Unavailable

25

COVER, CHANGE PEDAL

132-18113-01-00

Unavailable

26

BOLT, HEXAGON

97017-06020-00

Unavailable
