2018 Yamaha TTR110E (TTR110EJ) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2018 Yamaha TTR110E (TTR110EJ), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

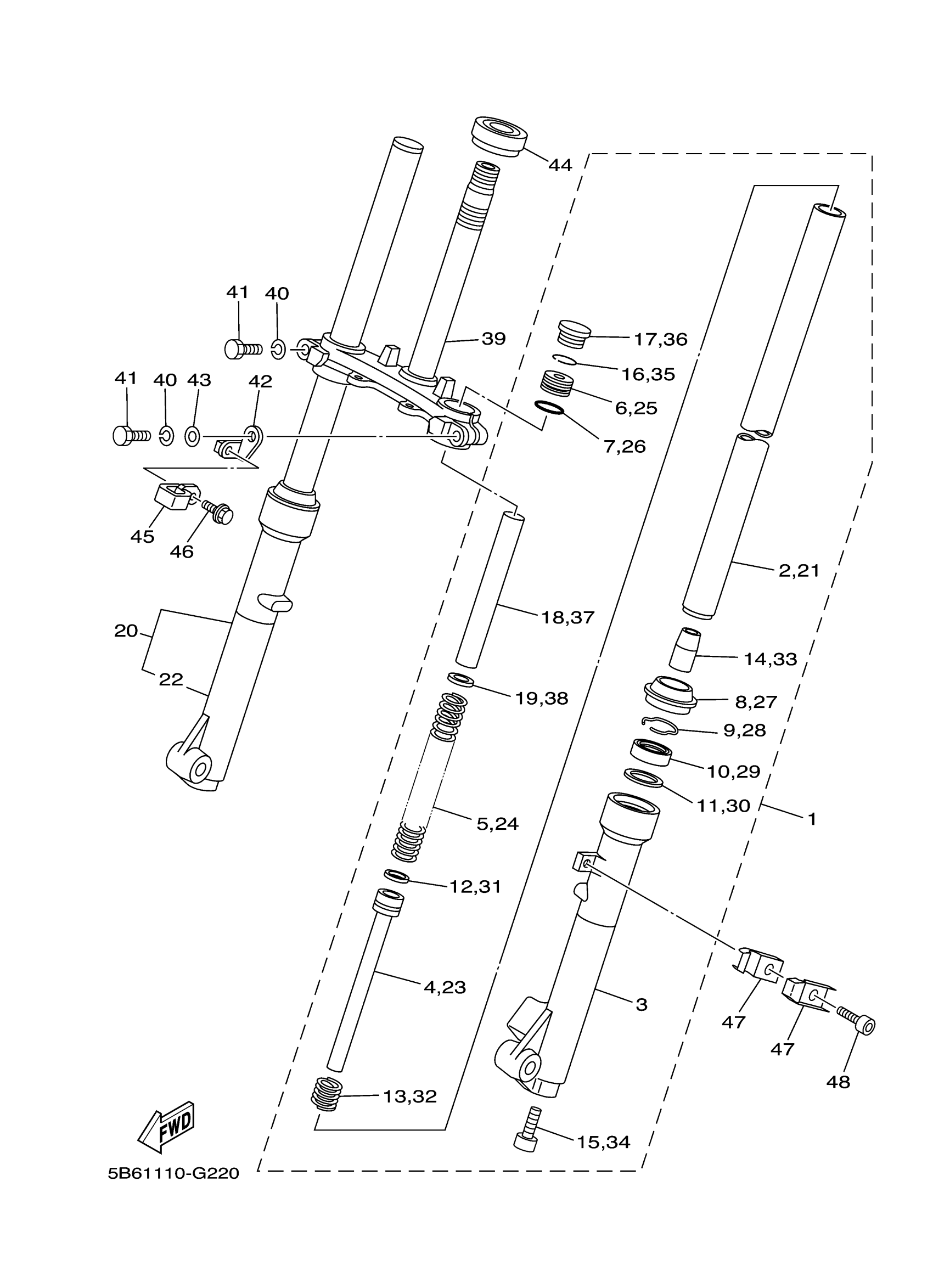

2018 Yamaha TTR110E (TTR110EJ) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSY (L.H)

5B6-23102-00-00

1
Out of stock

2

INNER TUBE COMP.1

5B6-23110-00-00

—
Out of stock

3

TUBE, OUTER (LEFT)

5B6-23126-00-00

1
Out of stock

4

CYLINDER COMP., FRONT FORK

5B6-23170-00-00

1
Out of stock

5

SPRING, FRONT FORK

5B6-23141-00-00

1
Out of stock

6

CAP

5B6-2319U-00-00

1
Out of stock

7

O-RING

5B6-23147-00-00

1
Out of stock

8

SEAL, DUST

5B6-23144-00-00

1
Out of stock

9

CLIP, OIL SEAL

2A6-23156-00-00

1
Out of stock

10

OIL SEAL

5B6-23145-00-00

1
Out of stock

11

WASHER, OIL SEAL

5B6-23146-00-00

1
Out of stock

12

RING, PISTON

5B6-23157-00-00

1
Out of stock

13

SPRING, REBOUND

5B6-23151-00-00

1
Out of stock

14

SPINDLE, TAPER

5B6-23173-00-00

1
Out of stock

15

BOLT

3M7-23181-00-00

1
Out of stock

16

RING, STOPPER

1L9-23183-00-00

—
Out of stock

17

CAP, FRONT FORK

3V2-23154-00-00

—
Out of stock

18

SPACER

5B6-23118-00-00

—
Out of stock

19

WASHER, SPRING UPPER

5B6-23149-00-00

—
Out of stock

20

FRONT FORK ASSY (R.H)

5B6-23103-00-00

—
Out of stock

21

INNER TUBE COMP.1

5B6-23110-00-00

—
Out of stock

22

TUBE, OUTER (RIGHT)

5B6-23136-00-00

—
Out of stock

23

CYLINDER COMP., FRONT FORK

5B6-23170-00-00

1
Out of stock

24

SPRING, FRONT FORK

5B6-23141-00-00

1
Out of stock

25

CAP

5B6-2319U-00-00

1
Out of stock

26

O-RING

5B6-23147-00-00

1
Out of stock

27

SEAL, DUST

5B6-23144-00-00

1
Out of stock

28

CLIP, OIL SEAL

2A6-23156-00-00

1
Out of stock

29

OIL SEAL

5B6-23145-00-00

1
Out of stock

30

WASHER, OIL SEAL

5B6-23146-00-00

1
Out of stock

31

RING, PISTON

5B6-23157-00-00

1
Out of stock

32

SPRING, REBOUND

5B6-23151-00-00

1
Out of stock

33

SPINDLE, TAPER

5B6-23173-00-00

1
Out of stock

34

BOLT

3M7-23181-00-00

1
Out of stock

35

RING, STOPPER

1L9-23183-00-00

—
Out of stock

36

CAP, FRONT FORK

3V2-23154-00-00

—
Out of stock

37

SPACER

5B6-23118-00-00

—
Out of stock

38

WASHER, SPRING UPPER

5B6-23149-00-00

—
Out of stock

39

UNDER BRACKET COMP.

5B6-23340-00-00

—
Out of stock

40

YBS67-10 WASHER, SPRING

92990-10100-00

—
Out of stock

41

BOLT

451-23346-01-00

—
Out of stock

42

BRACKET 1

5B6-2334G-00-00

—
Out of stock

43

WASHER, PLATE

92990-10600-00

1
Out of stock

44

BEARING(4ES)

93332-00079-00

—
Out of stock

45

HOLDER

5HN-23857-00-00

—
Out of stock

46

BOLT, FLANGE

90105-05014-00

—
Out of stock

47

CLAMP (3R0)

90462-14055-00

—
Out of stock

48

BOLT,SOCKET

91317-06012-00

—
Out of stock
