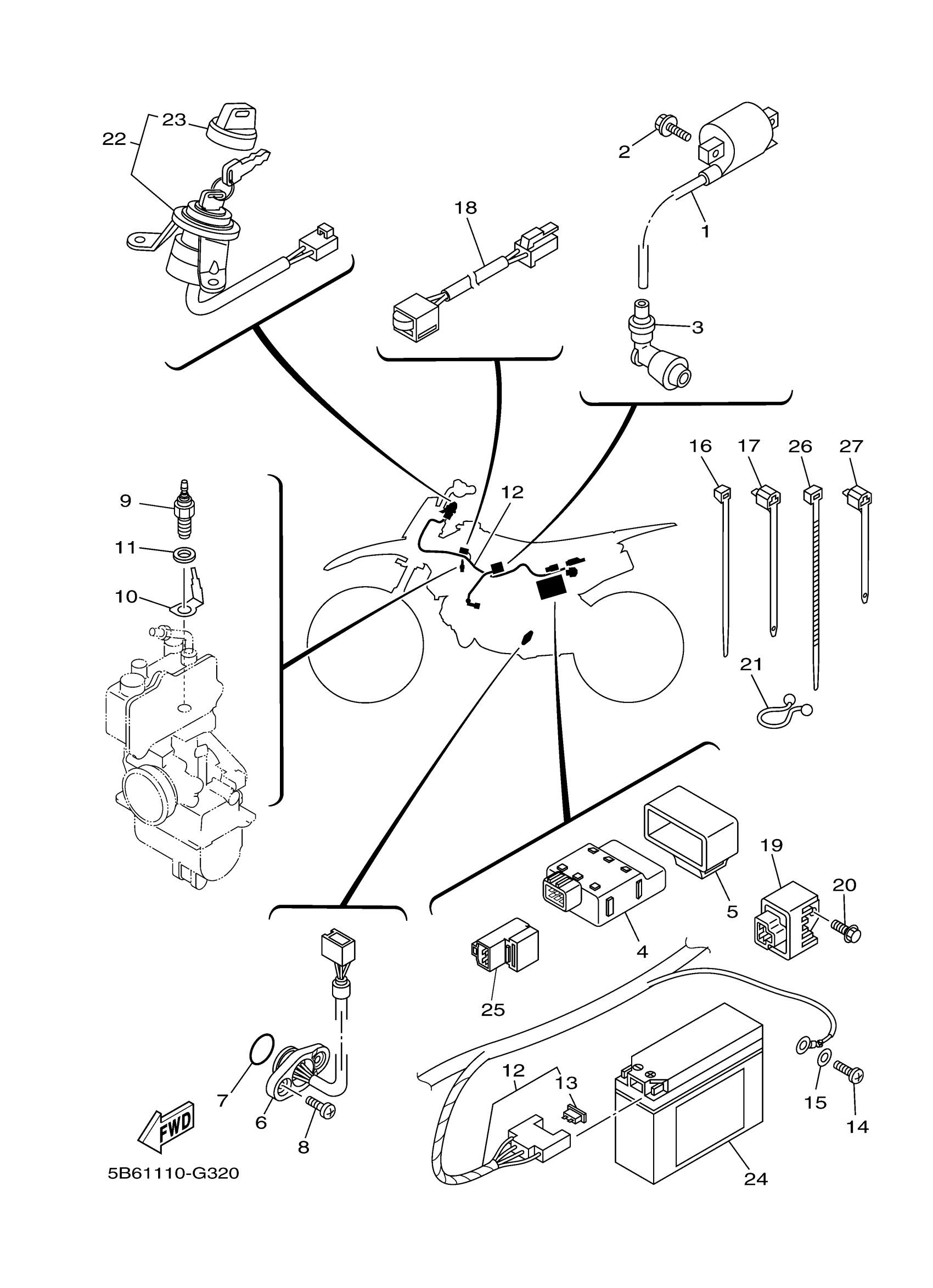

Yamaha TTR110EH (TTR110E) B519 2017 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITION COIL ASSY

3KJ-82310-13-00

Unavailable

2

BOLT, FLANGE

95022-06016-00

$3.11

3

PLUG CAP ASSY

4BP-82370-01-00

$29.71

4

C.D.I. UNIT ASSY

5B6-85540-01-00

Unavailable

5

BAND

3MB-85546-00-00

Unavailable

6

NEUTRAL SWITCH ASSY

3S0-H2540-00-00

$17.77

7

O-RING (25G)

93210-20573-00

$5.75

8

SCREW, PAN HEAD(3LA)

98517-05010-00

$3.29

9

HEATER ASSY

5FU-83790-20-00

$40.91

10

TERMINAL 1

5FU-82103-00-00

$6.29

11

WASHER, PLATE

90201-08016-00

$5.81

12

WIRE HARNESS ASSY

5B6-82590-01-00

$181.86

13

FUSE (10A)

42X-82151-00-00

$2.07

14

SCREW, PAN HEAD(62J)

97885-06012-00

$2.88

15

WASHER, PLAIN (646)

92990-06600-00

$1.84

16

BAND

1UA-82591-00-00

Unavailable

17

BAND, SWITCH CORD

437-83936-11-00

Unavailable

18

THERMO SWITCH ASSY

5FU-82560-50-00

Unavailable

19

RECTIFIER & REGULATOR ASSY

3LA-81960-01-00

Unavailable

20

BOLT, FLANGE

95022-06012-00

Unavailable

21

CLAMP (3Y2)

90464-16039-00

Unavailable

22

MAIN SWITCH ASSY

5B6-82510-01-00

Unavailable

23

CAP, KEY

3HN-82579-00-00

Unavailable

24

GT4B5 GS BATTERY - FA

GT4-B5000-00-00

$79.79

25

RELAY ASSY (29U-93)

29U-81950-93-00

Unavailable

26

BAND

1UA-82591-00-00

Unavailable

27

CLAMP(6E8)

90465-13M39-00

Unavailable
