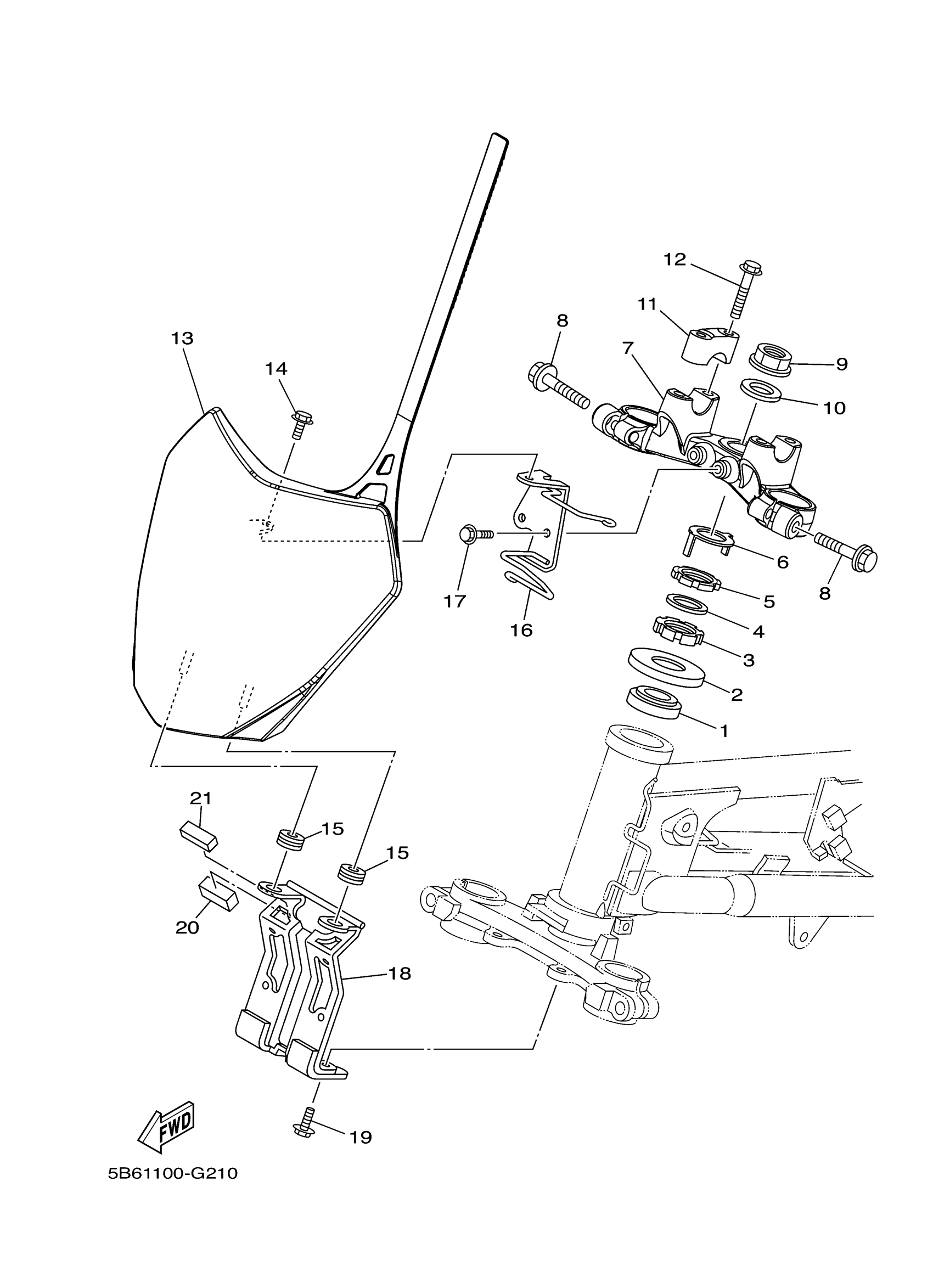

Yamaha TTR110EF (TTR110E) B511 2015 STEERING Diagram

#

Description
Price

1

BEARING

93399-99949-00

$47.41

2

COVER, BALL RACE 2

5HP-23416-00-00

Unavailable

3

NUT

90179-25003-00

$16.53

4

WASHER, PLATE (26H)

90202-26142-00

$7.52

5

NUT(3XP)

90179-25615-00

$19.86

6

WASHER, SPECIAL

3YF-23418-00-00

Unavailable

7

CROWN, HANDLE

5B6-23435-01-00

$178.24

8

BOLT, FLANGE

95022-08035-00

$3.04

9

NUT (26H)

90179-22412-00

$17.61

10

WASHER, PLATE

90201-22018-00

$3.82

11

HOLDER, HANDLE UPPER

1E6-23441-10-35

$20.20

12

BOLT, FLANGE

95022-08035-00

$3.04

13

PLATE, NUMBER

5B6-23485-00-00

$33.34

14

BOLT, FLANGE

95817-06012-00

$1.40

15

GROMMET(80K)

90480-13428-00

$4.89

16

STAY

5B6-2317E-00-00

Unavailable

17

BOLT, FLANGE

95817-06012-00

$1.40

18

STAY, PLATE

5B6-23486-00-00

Unavailable

19

BOLT, FLANGE

95817-06012-00

$1.40

20

DAMPER

5B6-23445-00-00

Unavailable

21

DAMPER

5B6-23455-00-00

Unavailable
