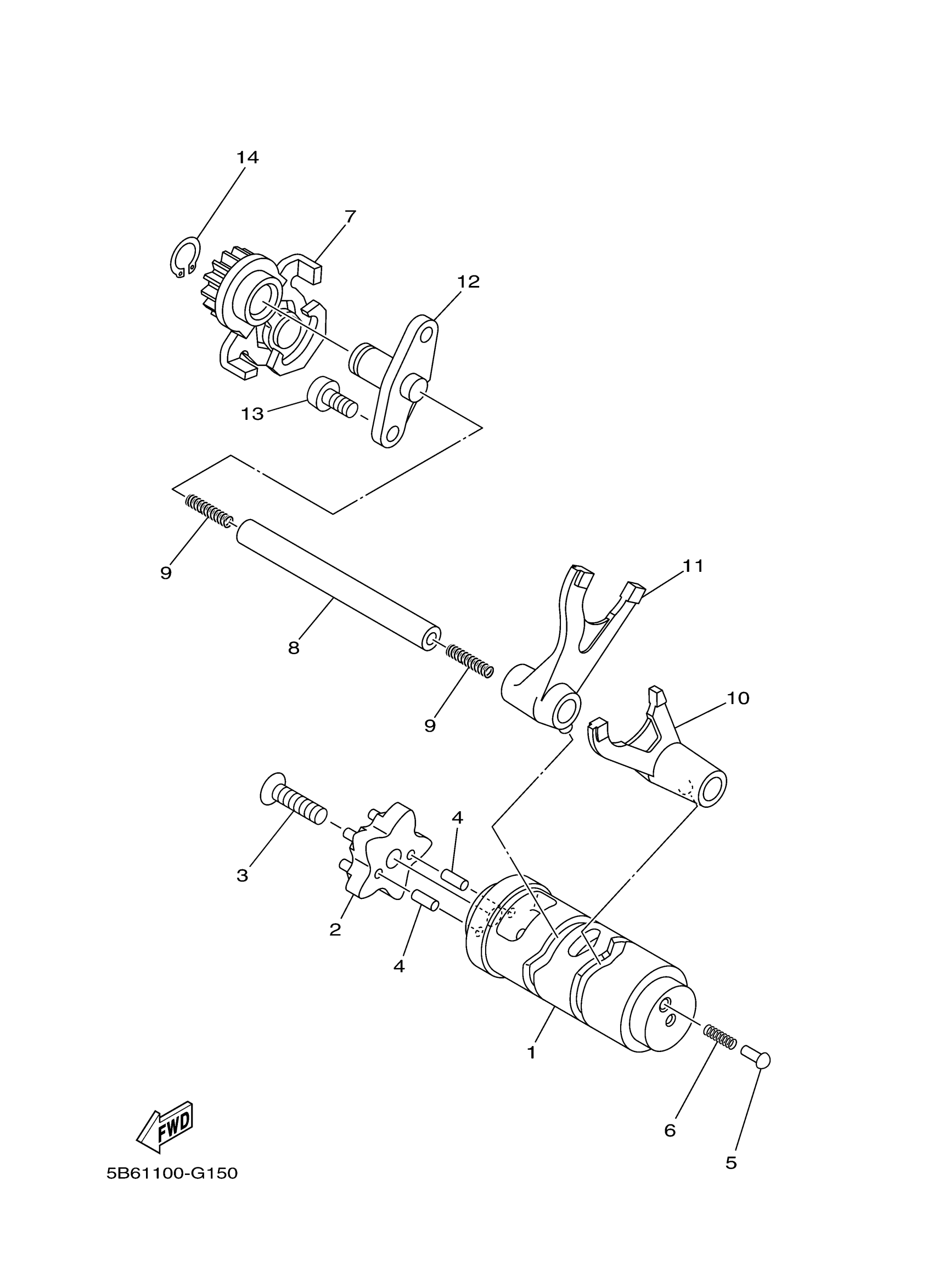

Yamaha TTR110EF (TTR110E) B511 2015 SHIFT CAM FORK Diagram

#

Description
Price

1

SHIFT CAM ASSY

BMA-E8540-00-00

$16.30

2

SEGMENT

5C6-E8185-00-00

Unavailable

3

SCREW(7YA)

90149-06N01-00

$1.58

4

PIN,DOWEL (168)

93604-12037-00

$4.89

5

POINT, NEUTRAL

4BA-18542-00-00

$9.61

6

SPRING COMPRESSION278185450000

90501-06022-00

$5.75

7

SHIFT LEVER ASSY (JUPITER-Z)

5TP-E8120-00-00

$27.36

8

BAR, SHIFT FORK GUIDE 1

5TP-E8531-00-00

$9.20

9

SPRING, COMPRESSION

90501-06800-00

$1.27

10

FORK, SHIFT 1 (VEGA-R)

5LM-E8511-00-00

$10.11

11

FORK, SHIFT 2

5LM-E8512-00-00

$10.59

12

BOSS

5TP-E818A-00-00

Unavailable

13

BOLT, BUTTON HEAD

92017-06016-00

$5.75

14

CIRCLIP(10Y)

99009-12400-00

$2.87
