2015 Yamaha TTR110E (TTR110EF) Intake Diagram

← All diagrams

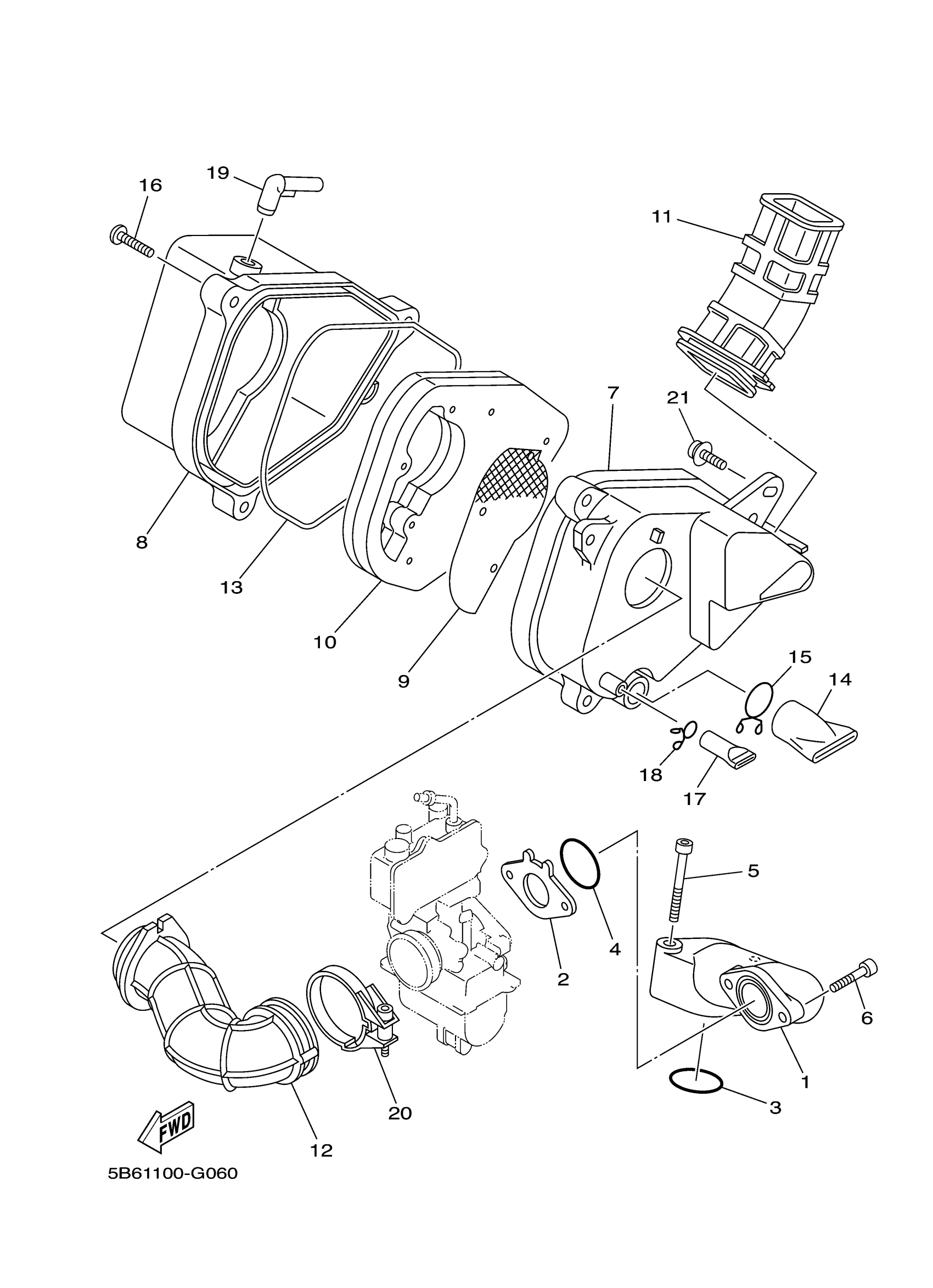

Find the part on the Intake diagram for your 2015 Yamaha TTR110E (TTR110EF), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Yamaha TTR110E (TTR110EF) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR 1 (5B61)

5B6-E3586-00-00

1

$6.72

In stock

2

JOINT

4GL-13595-01-00

1

$19.97

In stock

3

O-RING (22F)

93210-25552-00

1

$11.71

In stock

4

O-RING (22F)

93210-25552-00

1

$11.71

In stock

5

BOLT,SOCKET

91317-06040-00

1

$3.45

In stock

6

BOLT,SOCKET

91317-06025-00

1

$2.05

In stock

7

CASE, AIR CLEANER 1

5B6-14411-00-00

1

$85.71

In stock

8

CAP, CLEANER CASE 1

5B6-14412-00-00

1

$20.91

In stock

9

PLATE, ELEMENT

5B6-14472-00-00

1

$11.47

In stock

10

ELEMENT, AIR CLEANER

5B6-14451-00-00

1

$9.10

In stock

11

DUCT

5B6-14437-01-00

1

$27.55

In stock

12

JOINT, AIR CLEANER 1

5B6-14453-01-00

1

$34.91

In stock

13

SEAL

1VJ-14462-00-00

1

$16.08

In stock

14

SEAL

59V-14457-00-00

1
Out of stock

15

CLIP (21V)

90467-22080-00

1

$6.17

In stock

16

SCREW, BINDING

98907-06025-00

—

$6.18

In stock

17

PIPE, DRAIN

5XT-1443E-00-00

—

$5.08

In stock

18

CLIP(1JH)

90467-11106-00

—
Out of stock

19

PIPE

5Y1-14419-00-00

—

$6.43

In stock

20

BAND

4TR-13474-02-00

—

$9.52

In stock

21

SCREW, WITH WASHER (5U8)

90159-06056-00

—
Out of stock
