2014 Yamaha TTR110E (TTR110EE) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 2014 Yamaha TTR110E (TTR110EE), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

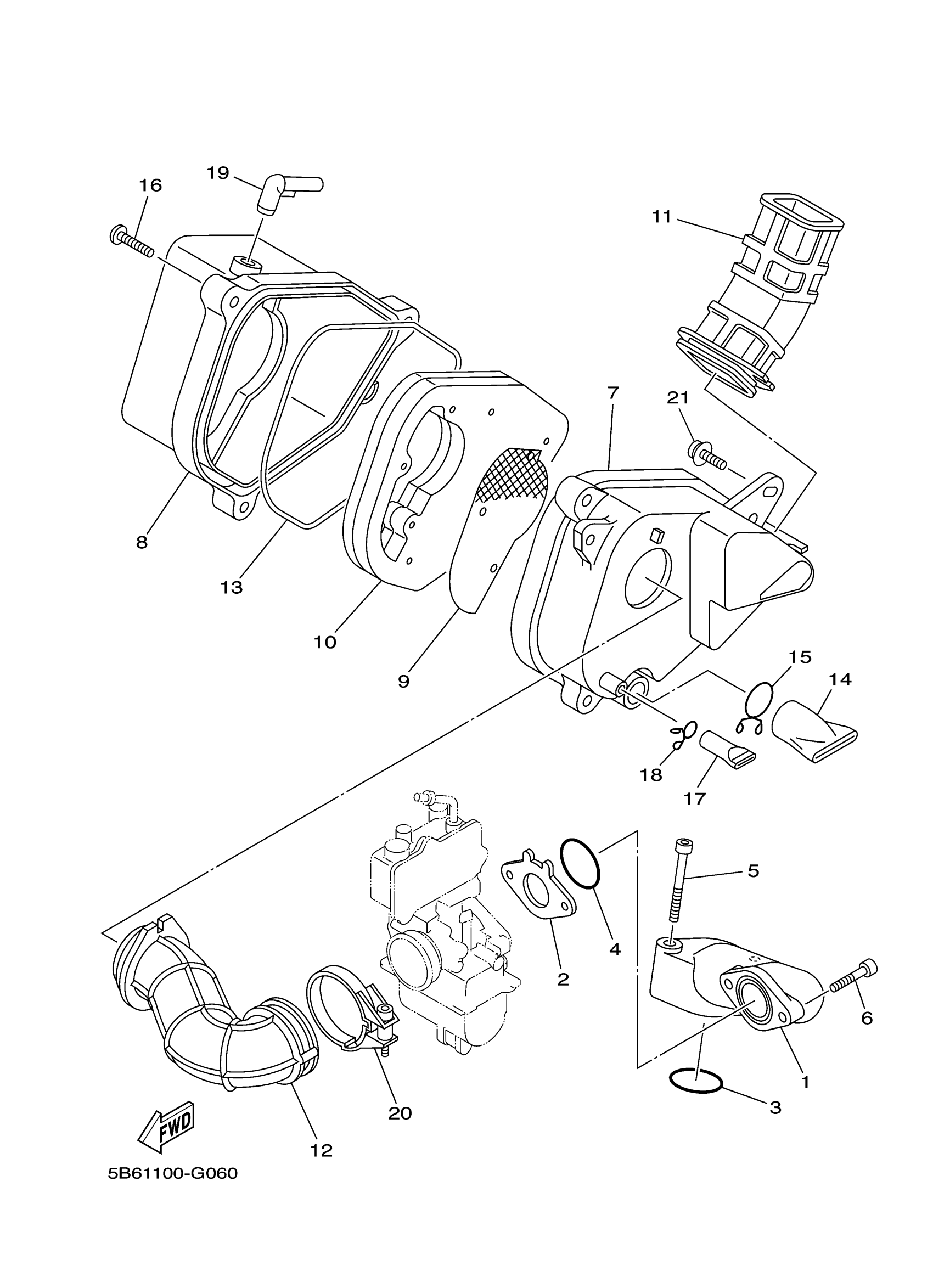

2014 Yamaha TTR110E (TTR110EE) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR 1 (5B61)

5B6-E3586-00-00

1
Out of stock

2

JOINT

4GL-13595-01-00

1
Out of stock

3

O-RING (22F)

93210-25552-00

1
Out of stock

4

O-RING (22F)

93210-25552-00

1
Out of stock

5

BOLT,SOCKET

91317-06040-00

1
Out of stock

6

BOLT,SOCKET

91317-06025-00

1
Out of stock

7

CASE, AIR CLEANER 1

5B6-14411-00-00

1
Out of stock

8

CAP, CLEANER CASE 1

5B6-14412-00-00

1
Out of stock

9

PLATE, ELEMENT

5B6-14472-00-00

1
Out of stock

10

ELEMENT, AIR CLEANER

5B6-14451-00-00

1
Out of stock

11

DUCT

5B6-14437-01-00

1
Out of stock

12

JOINT, AIR CLEANER 1

5B6-14453-01-00

1
Out of stock

13

SEAL

1VJ-14462-00-00

1
Out of stock

14

SEAL

59V-14457-00-00

1
Out of stock

15

CLIP (21V)

90467-22080-00

1
Out of stock

16

SCREW, BINDING

98907-06025-00

—
Out of stock

17

PIPE, DRAIN

5XT-1443E-00-00

—
Out of stock

18

CLIP(1JH)

90467-11106-00

—
Out of stock

19

PIPE

5Y1-14419-00-00

—
Out of stock

20

BAND

4TR-13474-02-00

—
Out of stock

21

SCREW, WITH WASHER (5U8)

90159-06056-00

—
Out of stock
