2011 Yamaha TTR110E (TTR110EA) Valve Diagram

← All diagrams

Find the part on the Valve diagram for your 2011 Yamaha TTR110E (TTR110EA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

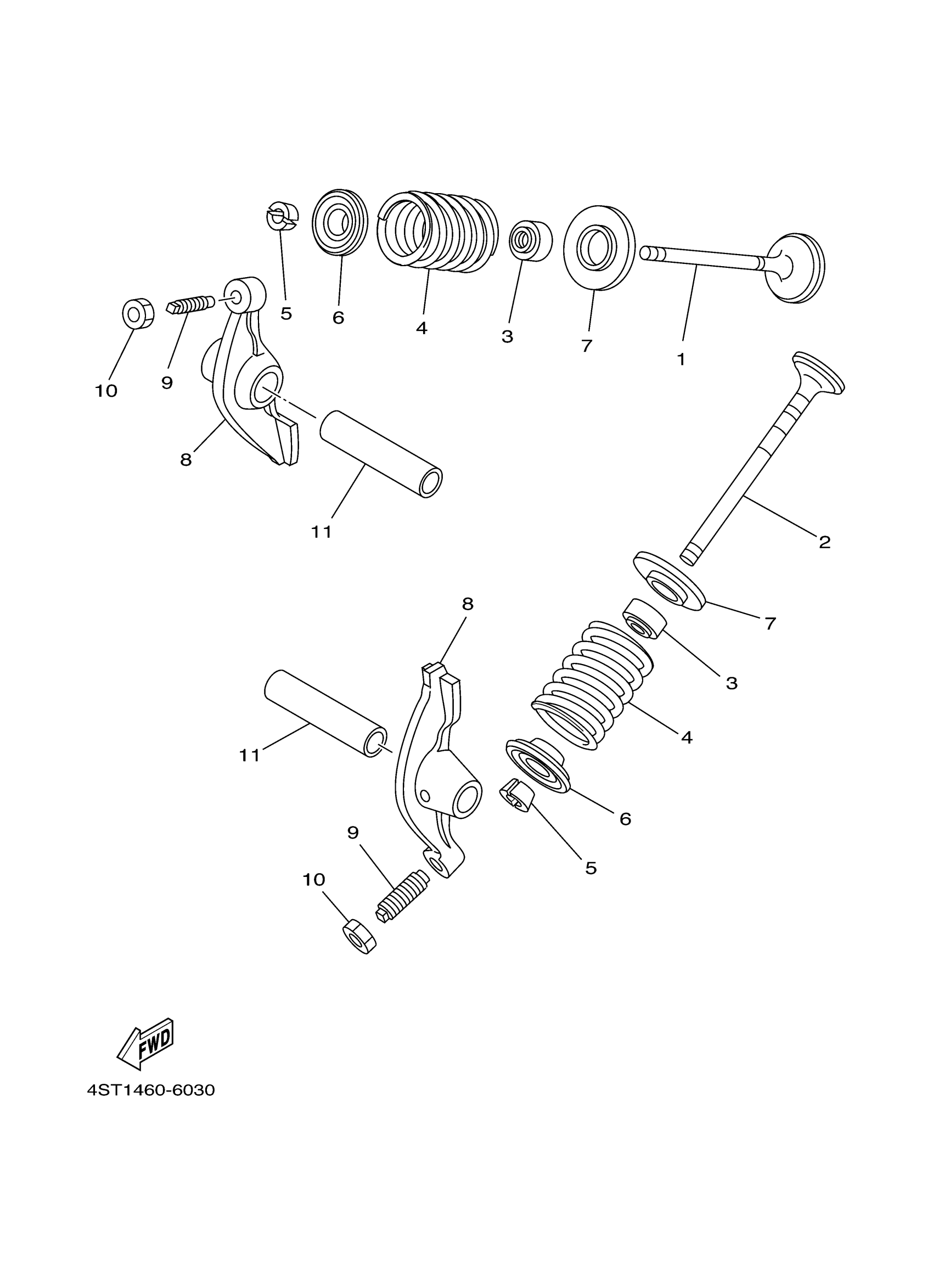

2011 Yamaha TTR110E (TTR110EA) Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

VALVE, INTAKE

4S9-E2111-00-00

1

$14.25

In stock

2

VALVE, EXHAUST

4S9-E2121-00-00

1

$66.48

In stock

3

SEAL, VALVE STEM

4SV-12119-00-00

1

$19.85

In stock

4

SPRING, VALVE OUTER

5TN-E2114-00-00

1

$19.79

In stock

5

COTTER, VALVE

1WG-12118-00-00

1

$5.50

In stock

6

RETAINER, VALVE SPRING

5TN-12117-00-00

1

$9.15

In stock

7

SEAT, VALVE SPRING 2

4S9-E2126-00-00

1

$6.05

In stock

8

ARM, VALVE ROCKER (2P22)

2P2-E2151-00-00

—

$20.92

In stock

9

SCREW, VALVE ADJUSTING

22F-12159-00-00

1

$8.70

In stock

10

NUT (22F)

90170-05302-00

1

$0.71

In stock

11

SHAFT, ROCKER 2

22F-12156-00-00

1

$19.09

In stock
← OIL Pump Carburetor →
