2011 Yamaha TTR110E (TTR110EA) Side Cover Diagram

← All diagrams

Find the part on the Side Cover diagram for your 2011 Yamaha TTR110E (TTR110EA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

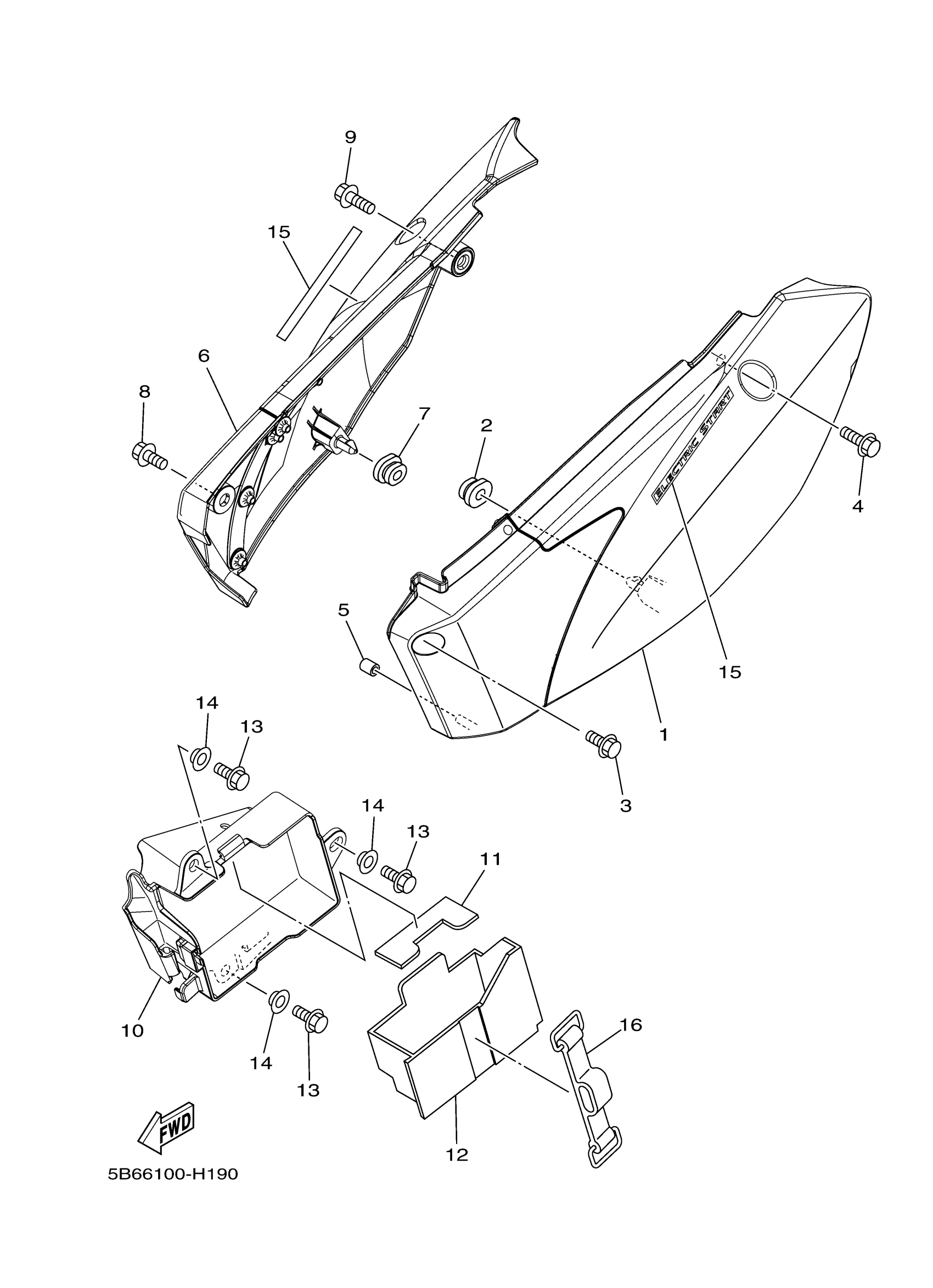

2011 Yamaha TTR110E (TTR110EA) Side Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SIDE COVER ASSY 1

5B6-21710-00-00

1

$75.97

In stock

2

GROMMET(4DN)

90480-01558-00

1

$3.95

In stock

3

BOLT, FLANGE

95817-06014-00

—

$2.15

In stock

4

BOLT, FLANGE

95817-06016-00

1

$1.49

In stock

5

DAMPER, LOCATING 1

5B6-21778-00-00

1

$6.58

In stock

6

SIDE COVER ASSY 2

5B6-21720-00-00

1

$76.28

In stock

7

GROMMET(4DN)

90480-01558-00

1

$3.95

In stock

8

BOLT, FLANGE

95817-06014-00

—

$2.15

In stock

9

BOLT, FLANGE

95817-06016-00

1

$1.49

In stock

10

BOX, BATTERY

5B6-2177G-01-00

1

$26.46

In stock

11

DAMPER

5HN-21746-00-00

1

$6.43

In stock

12

COVER

5HN-2172W-00-00

1

$17.41

In stock

13

BOLT, FLANGE

95817-06014-00

—

$2.15

In stock

14

COLLAR (8G8)

90387-06681-00

1

$6.62

In stock

15

EMBLEM

5B6-21737-00-00

1
Out of stock

16

BAND, BATTERY

34M-82131-00-00

—

$8.92

In stock
