1985 Yamaha TT600 (TT600N) Stand-Footrest Diagram

← All diagrams

Find the part on the Stand-Footrest diagram for your 1985 Yamaha TT600 (TT600N), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

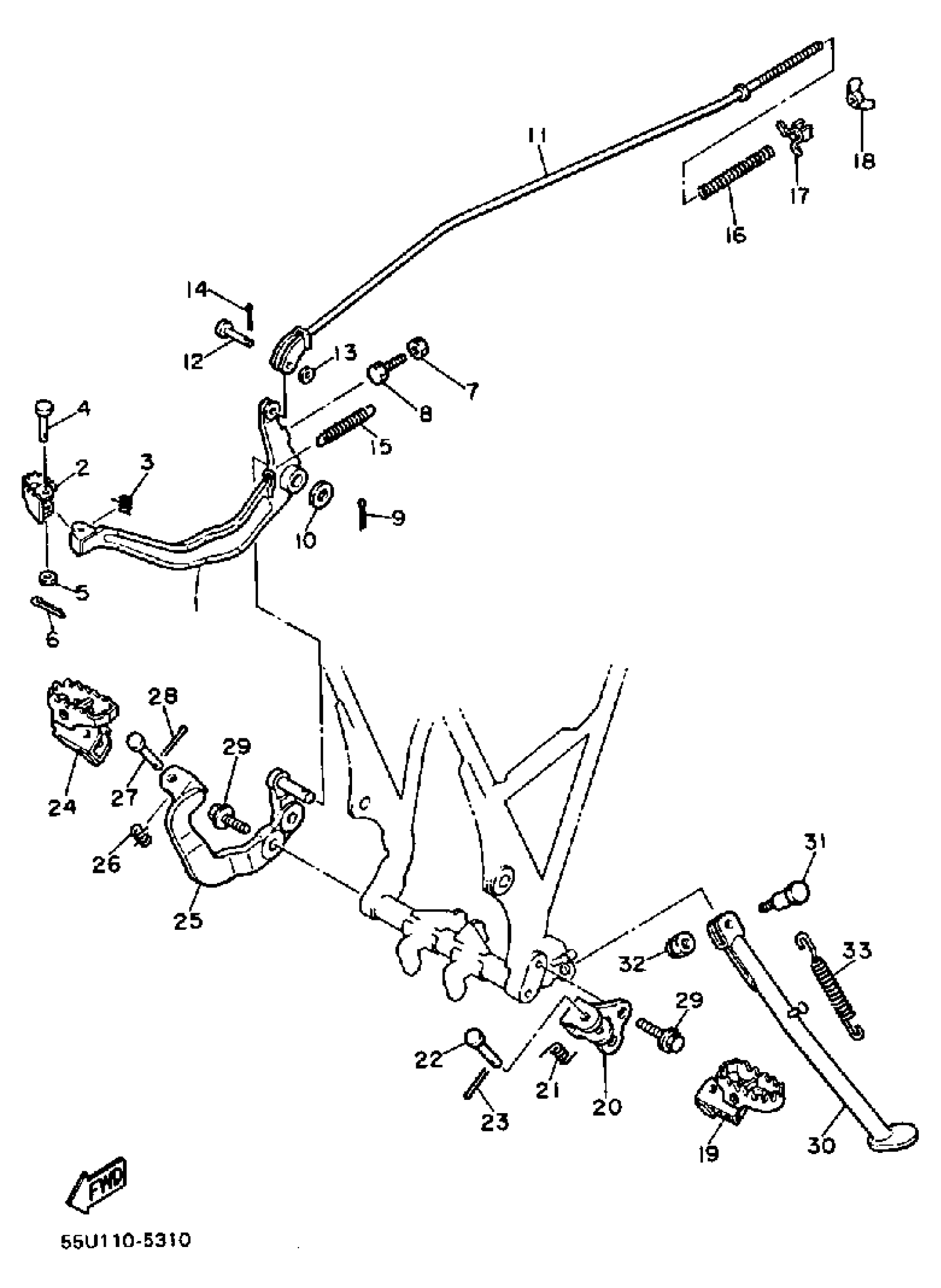

1985 Yamaha TT600 (TT600N) Stand-Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL, BRAKE

36A-27211-01-90

1
Out of stock

2

PEDAL, BRAKE

3R8-27242-00-00

1
Out of stock

3

SPRING, TORSION

90508-14429-00

1
Out of stock

4

PIN, CLEVIS

91702-06028-00

1
Out of stock

5

WASHER, PLATE (4H7)

90201-061A5-00

1
Out of stock

6

PIN, COTTER

91490-20025-00

1
Out of stock

7

BOLT, HEXAGON

97017-06025-00

1
Out of stock

8

NUT, HEXAGON

95380-06600-00

1
Out of stock

9

PIN COTTER

91490-30025-00

1
Out of stock

10

WASHER, PLAIN (434)

90201-14411-00

1
Out of stock

11

ROD, BRAKE

34K-27231-00-00

1
Out of stock

12

PIN, CLEVIS (24X)

90240-06103-00

1
Out of stock

13

YBS66-6 WASHER, PLAIN

92990-06200-00

1
Out of stock

14

PIN, COTTER

91490-20025-00

1
Out of stock

15

SPRING, TENSION (23X)

90506-18305-00

1
Out of stock

16

SPRING, (180-27236-00)

90501-10245-00

—
Out of stock

17

SEAT, SPRING

1W2-27239-00-00

1
Out of stock

18

NUT (25K)

90179-06411-00

—
Out of stock

19

FOOTREST 1

23X-27411-03-00

1
Out of stock

20

BRACKET, FOOTREST 1

34K-27412-00-R4

1
Out of stock

21

SPRING, TORSION (23X)

90508-20583-00

—
Out of stock

22

PIN, CLEVIS (23X)

90240-10101-00

—
Out of stock

23

PIN, COTTER

91490-25020-00

—
Out of stock

24

FOOTREST 2

34K-27421-00-00

1
Out of stock

25

BRACKET, FOOTREST 2

34K-27422-00-R4

1
Out of stock

26

SPRING, TORSION (23X)

90508-20583-00

—
Out of stock

27

PIN, CLEVIS (23X)

90240-10101-00

—
Out of stock

28

PIN, COTTER

91490-25020-00

—
Out of stock

29

BOLT, FLANGE(3GD)

95817-10025-00

—
Out of stock

30

STAND, SIDE

55U-27311-00-R4

1
Out of stock

31

BOLT, WASHER BASED

90105-12616-00

1
Out of stock

32

NUT, SELF LOCKING (23X)

90185-12119-00

—
Out of stock

33

SPRING (434)

90507-29008-00

—
Out of stock
