1985 Yamaha TT600 (TT600N) Crankcase Diagram

← All diagrams

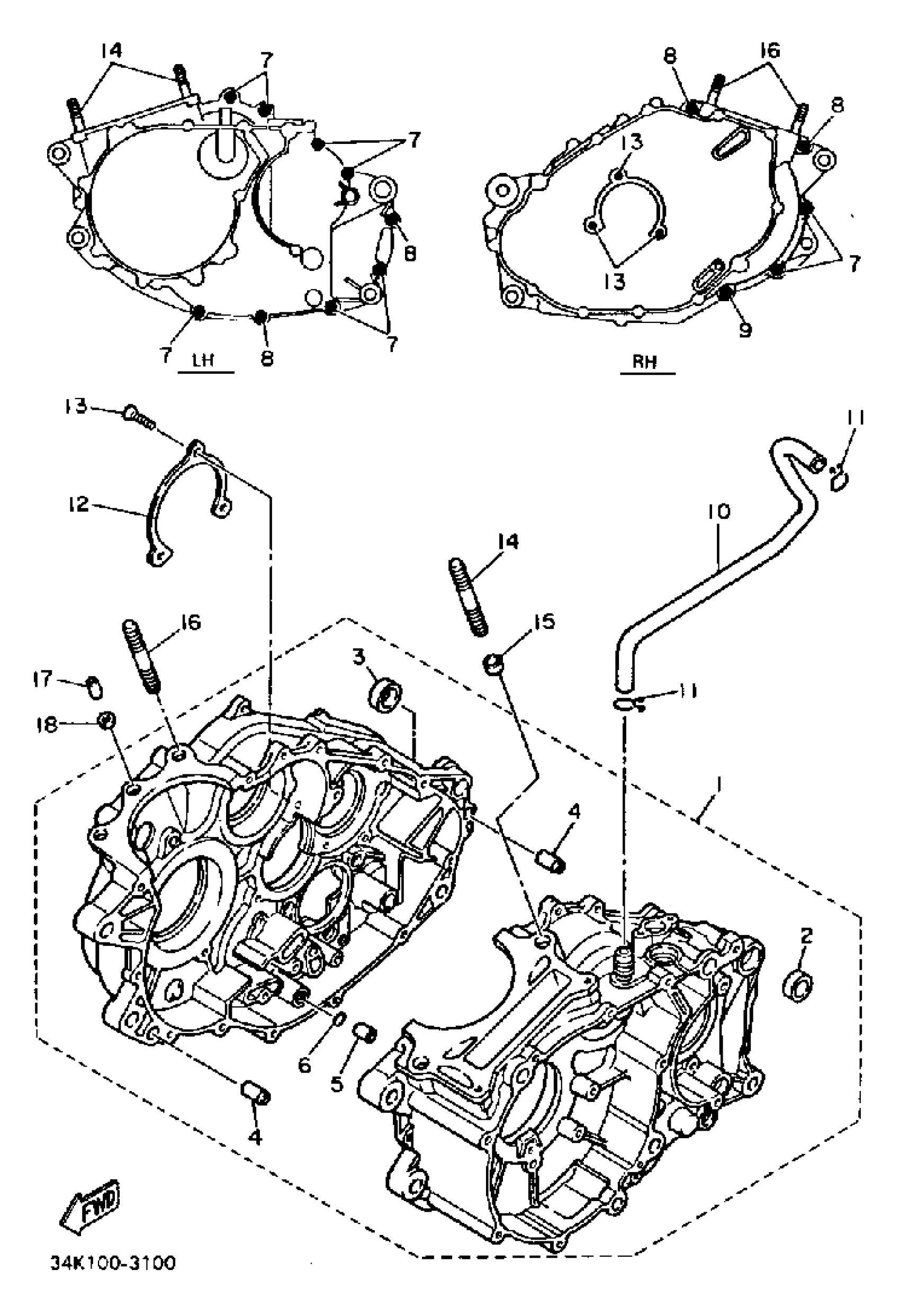

Find the part on the Crankcase diagram for your 1985 Yamaha TT600 (TT600N), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Yamaha TT600 (TT600N) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSEMBLY

34L-15100-05-00

1
Out of stock

2

COLLAR

90387-17009-00

1
Out of stock

3

COLLAR (3Y1)

90387-16782-00

1

$4.65

In stock

4

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

5

PIN, DOWEL(3XW)

91808-16023-00

1

$5.48

In stock

6

O-RING (583 OIL DRAIN BOLT)

93210-07135-00

1
Out of stock

7

1

$3.82

In stock

8

BOLT,SOCKET

91317-06045-00

1
Out of stock

9

BOLT,SOCKET

91317-06060-00

1
Out of stock

10

PIPE, BREATHER 1

34L-11166-00-00

1
Out of stock

11

CLIP (371)

90467-14015-00

1

$7.51

In stock

12

PLATE, BEARING COVER

5Y1-15383-00-00

1
Out of stock

13

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

1
Out of stock

14

BOLT (363-11361-00)

90116-10087-00

1
Out of stock

15

PIN, DOWEL

99530-14016-00

1

$3.20

In stock

16

BOLT, STUD (1W4)

90116-10263-00

—

$9.80

In stock

17

PIN, DOWEL(3XW)

91808-16023-00

1

$5.48

In stock

18

GASKET (5Y1)

90430-08178-00

—

$4.83

In stock
