CARBURETOR

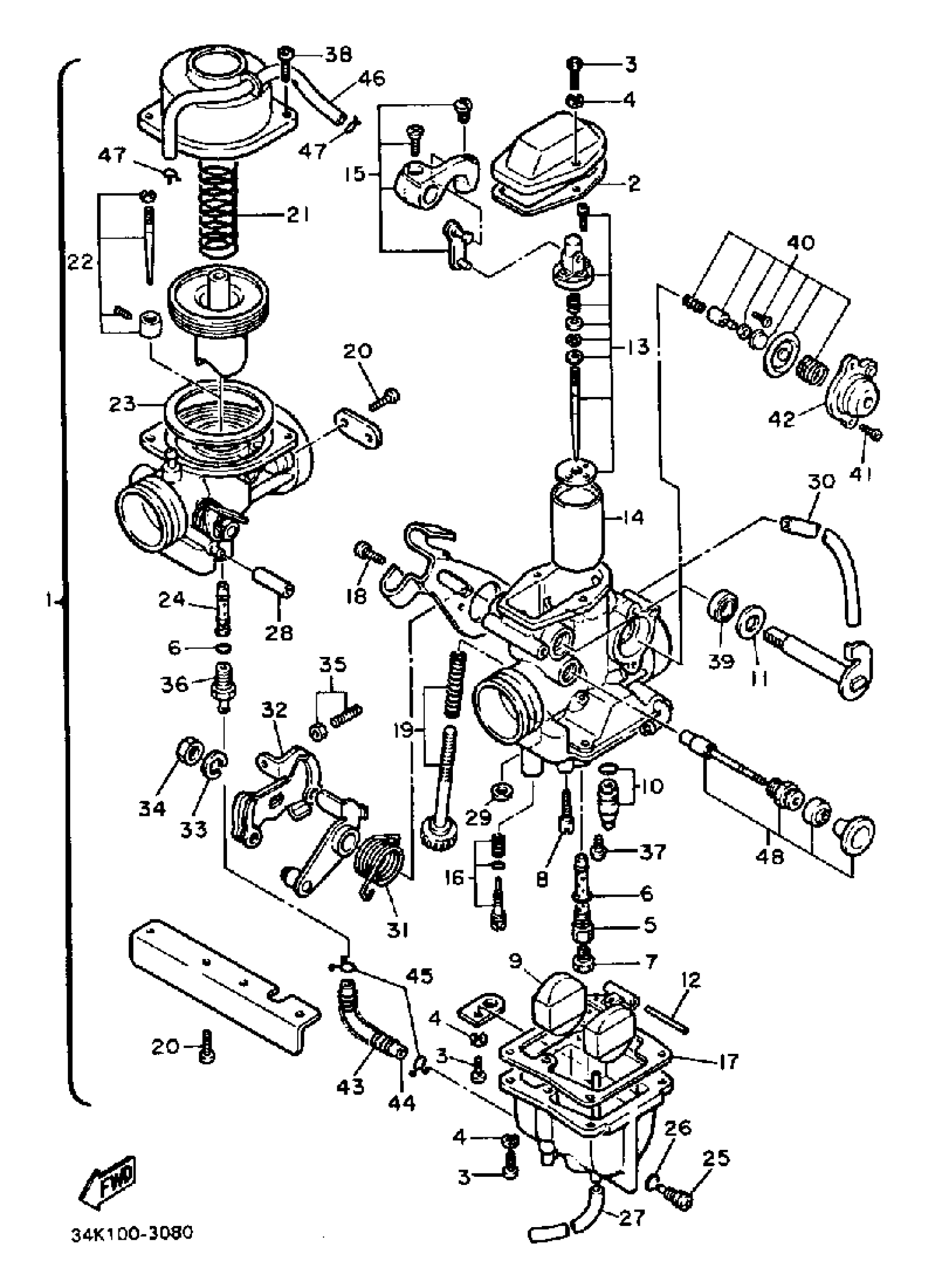

1985 Yamaha TT600 (TT600N) Carburetor Diagram
Find the part on the Carburetor diagram for your 1985 Yamaha TT600 (TT600N), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
CARBURETOR ASY 1
55U-14301-03-00
5
. NOZZLE, MAIN
5Y3-14341-00-00
7
JET, MAIN (# 135)
288-14343-68-00
9
FLOAT
5Y1-14385-00-00
10
NEEDLE VALVE SET
1JK-14107-01-00
11
. WASHER, PLAIN
5Y1-14357-00-00
13
. NEEDLE SET
55U-1490J-10-00
14
VALVE, THROTTLE 1
(34K-14312-55-00)
15
. CABLE CONNECT SET
5Y1-14203-00-00
16
PILOT SCREW SET
50M-14105-00-00
19
. THROTTLE SCREW SET
34K-14103-00-00
21
. SPRING
5Y1-14286-00-00
22
.. NEEDLE SET
43F-1490J-01-00
23
GASKET
5Y1-14398-00-00
24
. NOZZLE, MAIN
5Y1-14355-00-00
26
O-RING
5Y1-14397-00-00
28
PIPE
5Y1-14349-00-00
31
. SPRING, THRTL VALVE
5Y1-14131-00-00
32
. THROTTLE LVR COMP
34K-14305-00-00
33
. WASHER, SPRING
5Y1-14356-00-00
34
. NUT
5Y1-14358-00-00
35
. STOP SCREW SET
34K-1490K-00-00
36
. JET, MAIN #136
5Y1-14343-68-00
42
. COVER 1
5Y1-14293-01-00
43
. SPRING
5Y1-14556-00-00
44
. PIPE
5Y1-14148-00-00
45
. CLIP
5Y1-14137-00-00
46
PIPE
5Y1-14149-00-00
48
. PLUNGER, STARTERASSEMBLY
34K-14370-00-00
