1979 Yamaha TT500 (TT500F) Shifter 2 Diagram

← All diagrams

Find the part on the Shifter 2 diagram for your 1979 Yamaha TT500 (TT500F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

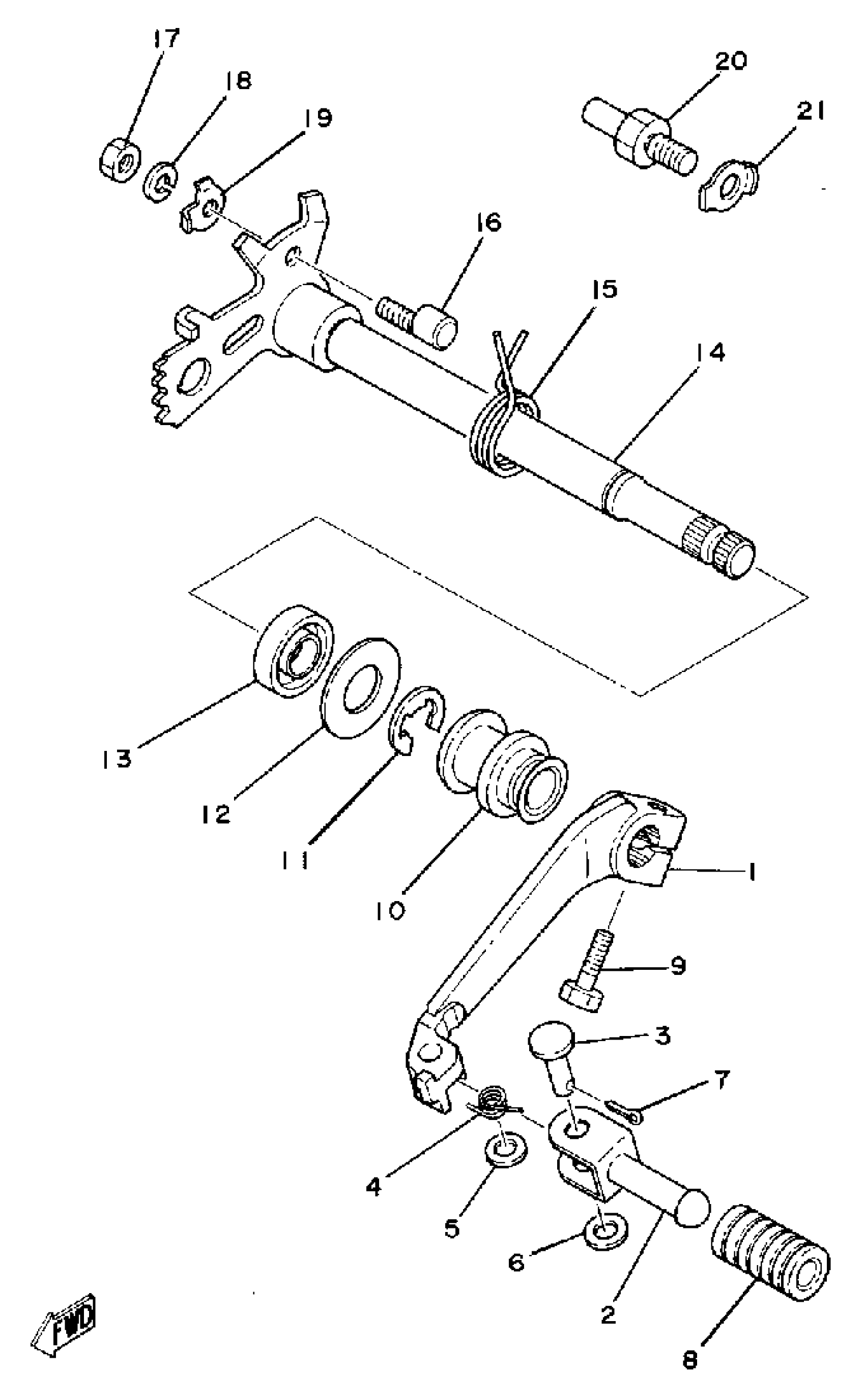

1979 Yamaha TT500 (TT500F) Shifter 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT PEDAL ASSY

2HF-18110-02-00

1

$52.56

In stock

2

PEDAL, SHIFT

1W6-18162-00-00

1
Out of stock

3

PIN, CLEVIS

90240-06057-00

1
Out of stock

4

SPRING, TORSION

90508-16351-00

1
Out of stock

5

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

6

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

7

PIN, COTTER

91490-20025-00

1

$1.31

In stock

8

COVER, CHANGE PEDAL

1W6-18113-00-00

1

$3.91

In stock

9

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

10

BOOTS, SEALING

583-18131-00-00

1
Out of stock

11

. CIRCLIP

99001-12600-00

1

$5.78

In stock

12

WASHER PLATE 248181370000

90201-14220-00

1

$6.17

In stock

13

OIL SEAL (14X24X6-256)

93109-14010-00

1

$10.66

In stock

14

SHIFT SHAFT COMP.

2J2-18103-00-00

1
Out of stock

15

SPRING TORSION 214181240000

90508-32052-00

1
Out of stock

16

SCREW 214181860000

90149-06017-00

—
Out of stock

17

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

18

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

19

WASHER, LOCK

90215-06016-00

—
Out of stock

20

STOPPER, SCREW

278-18127-01-00

—
Out of stock

21

WASHER, LOCK (583 SHIFT)

90215-08115-00

—
Out of stock
