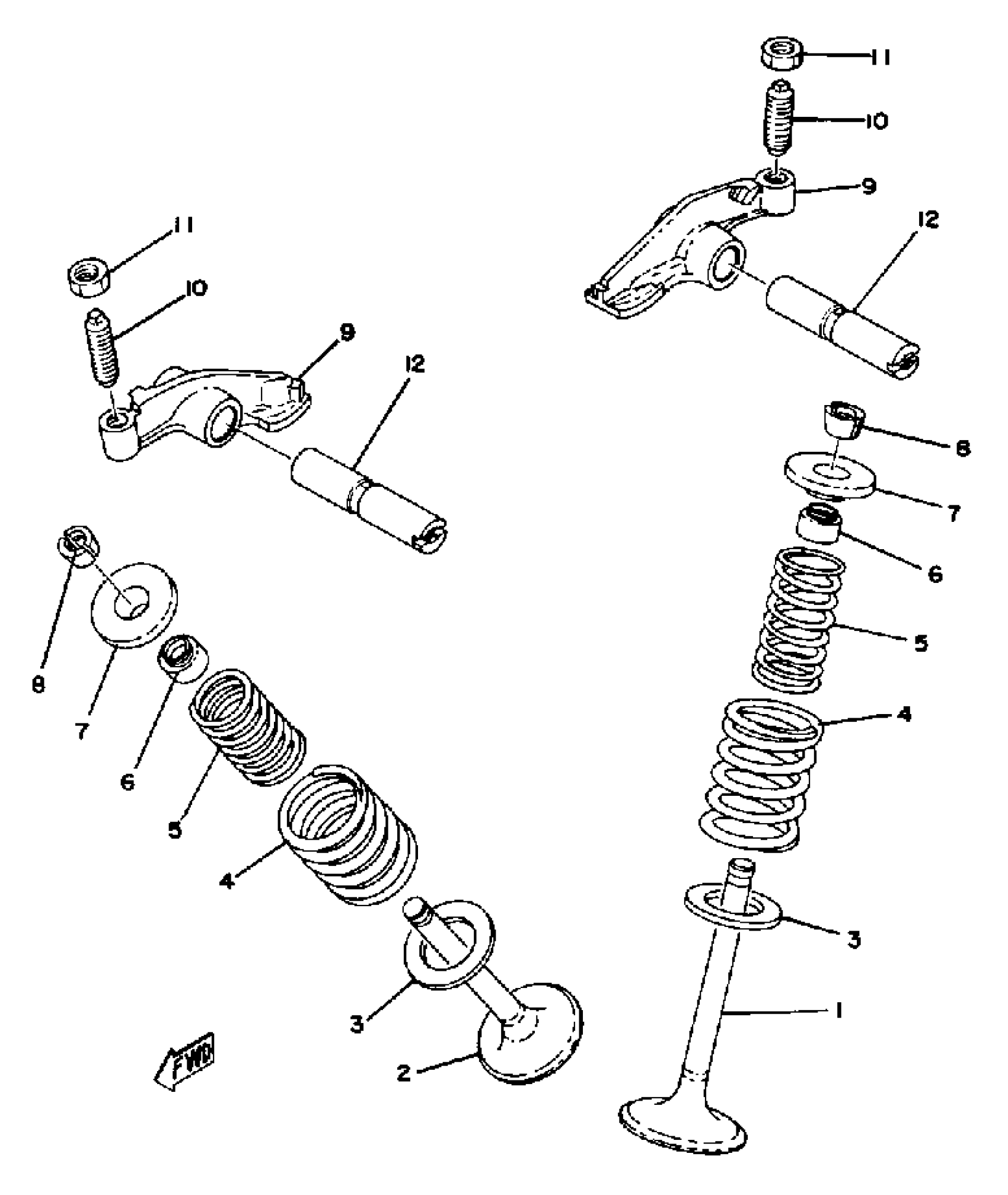

Find the part on the Valve diagram for your 1977 Yamaha TT500 (TT500D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha TT500 (TT500D) Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

VALVE, INTAKE

583-12111-00-00

1
Out of stock

2

VALVE, EXHAUST

583-12121-00-00

—

$144.20

In stock

3

SEAT, VALVE SPRING

256-12116-01-00

1
Out of stock

4

SPRING, COMPRESSION (1T1)

90501-44455-00

1
Out of stock

5

SPRING, COMPRESSION (1T1)

90501-31454-00

1
Out of stock

6

SEAL, VALVE STEM OIL

341-12119-02-00

1
Out of stock

7

RETAINER, VALVE SPRING

256-12117-02-00

1
Out of stock

8

LOCK, VALVE SPRING (447)

341-12118-00-00

1
Out of stock

9

ARM, VALVE ROCKER

583-12151-00-00

—

$110.87

In stock

10

SCREW, VALVE ADJUSTING

3HT-12159-R0-00

1
Out of stock

11

NUT, HEXAGON

90170-08173-00

1

$6.71

In stock

12

SHAFT, ROCKER 2

583-12156-02-00

1
Out of stock
