1977 Yamaha TT500 (TT500D) Shift CAM Fork Diagram

← All diagrams

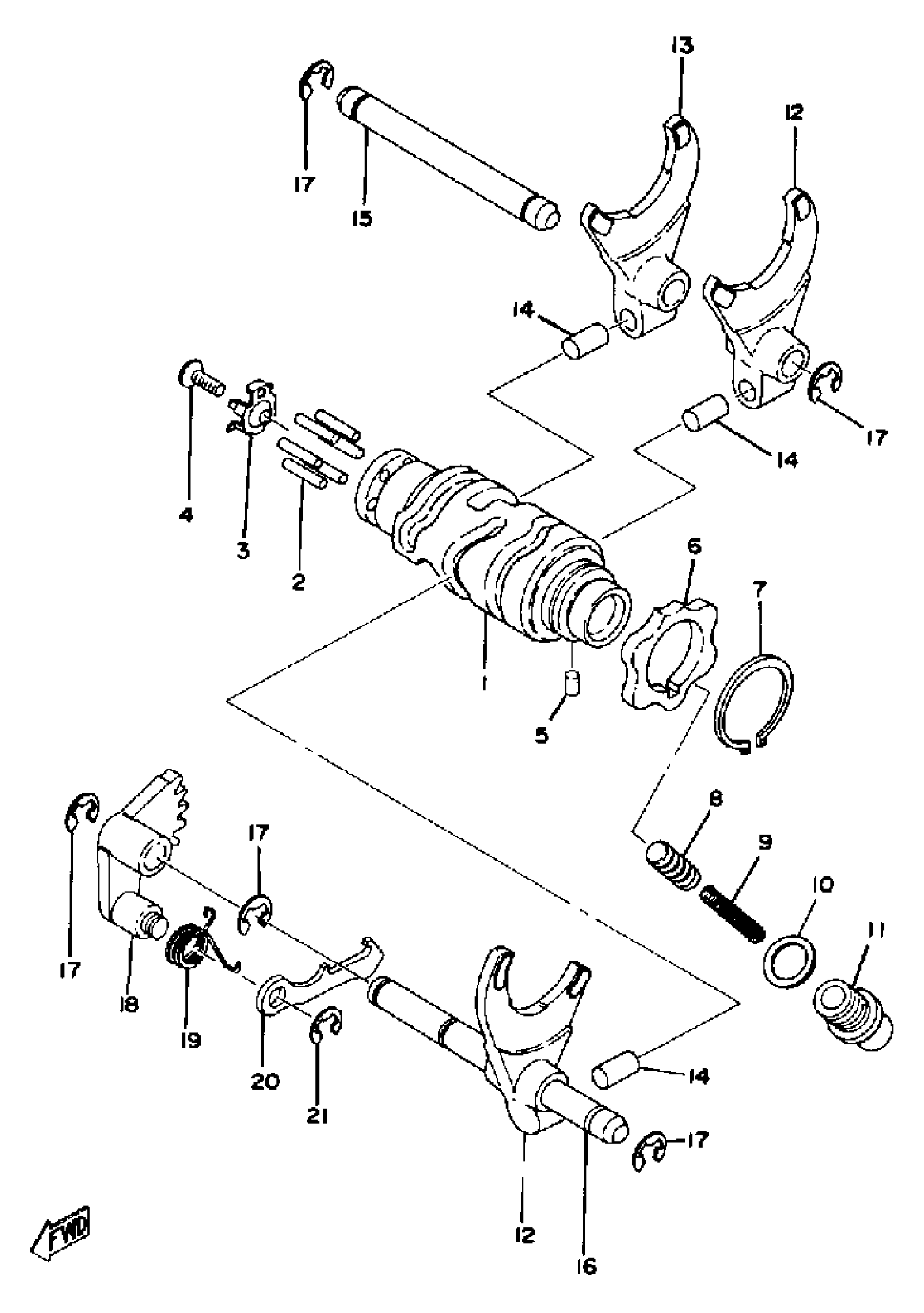

Find the part on the Shift CAM Fork diagram for your 1977 Yamaha TT500 (TT500D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha TT500 (TT500D) Shift CAM Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT CAM ASSEMBLY (434-18541-03)

434-18540-03-00

1
Out of stock

2

PIN, DOWEL (363)

93604-18100-00

1

$2.22

In stock

3

PLATE, SIDE

434-18561-00-00

1
Out of stock

4

SCREW, FLAT

98707-05012-00

1
Out of stock

5

PIN, DOWEL (278)

93604-08071-00

1

$6.17

In stock

6

PLATE, STOPPER

360-18141-01-00

1
Out of stock

7

CIRCLIP(4A6)

99009-30400-00

1

$6.55

In stock

8

STOPPER, CAM

278-18547-02-00

1
Out of stock

9

SPRING COMPRESSION278185570000

90501-10062-00

1
Out of stock

10

WASHER, PROTECTOR

4F4-14766-00-00

1

$6.11

In stock

11

BOLT

90109-14002-00

1

$10.29

In stock

12

FORK, SHIFT

364-18511-00-00

—
Out of stock

13

FORK, SHIFT 1

363-18511-00-00

—
Out of stock

14

PIN, STRAIGHT

90250-08017-00

1
Out of stock

15

BAR, SHIFT FORK GUIDE 2

363-18535-00-00

—
Out of stock

16

BAR, SHIF FRK GDE 1

(363-18531-00-00)

1
Out of stock

17

CIRCLIP(2R6)

99001-08600-00

—
Out of stock

18

LEVER, CHANGE 2

434-18122-00-00

—
Out of stock

19

SPRING

90508-08008-00

1
Out of stock

20

LEVER, CHANGE 3

498-18151-03-00

—
Out of stock

21

CIRCLIP

99080-07600-00

1

$2.89

In stock
