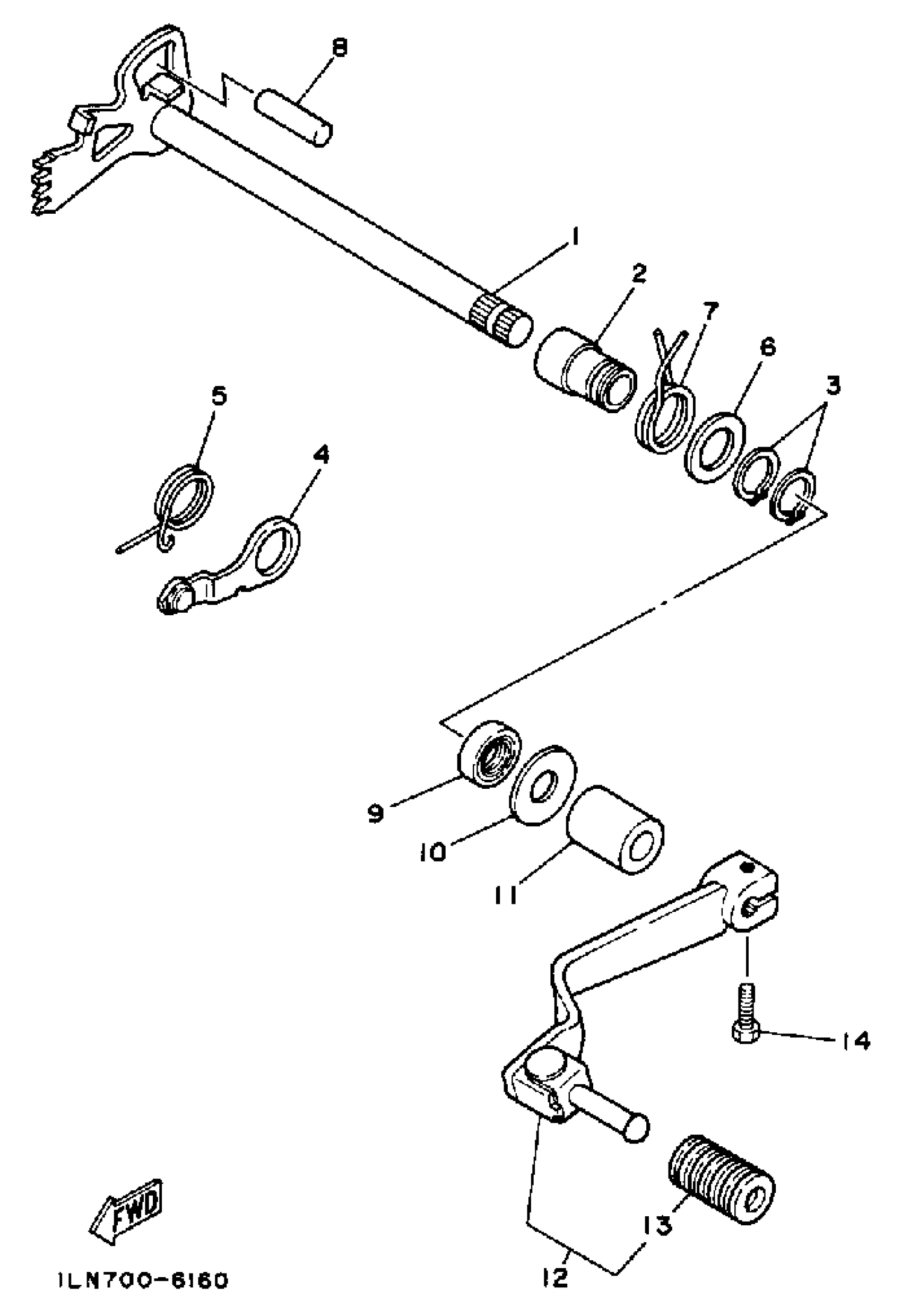

Yamaha TT350T (TT350) 1987 SHIFT SHAFT Diagram

#

Description
Price

1

SHIFT SHAFT ASSEMBLY

30X-18101-01-00

Unavailable

2

COLLAR (3Y1)

90387-12787-00

$11.49

3

CIRCLIP(1EY)

99009-17400-00

$4.73

4

STOPPER LEVER ASSY

3Y1-18140-00-00

$30.99

5

SPRING, TORSION

90508-26434-00

Unavailable

6

WASHER, PLATE (30X)

90201-177G4-00

$9.49

7

SPRING, TORSION (2K7)

90508-32374-00

$7.49

8

PIN, DOWEL

93608-30152-00

Unavailable

9

SEAL, OIL (30X)

93102-12321-00

$12.49

10

WASHER

90201-12588-00

$7.49

11

SPACER (3Y1)

90560-12191-00

$7.49

12

SHIFT PEDAL ASSEMBLY

1LN-18110-00-00

Unavailable

13

COVER, CHANGE PEDAL

1W6-18113-00-00

$5.49
