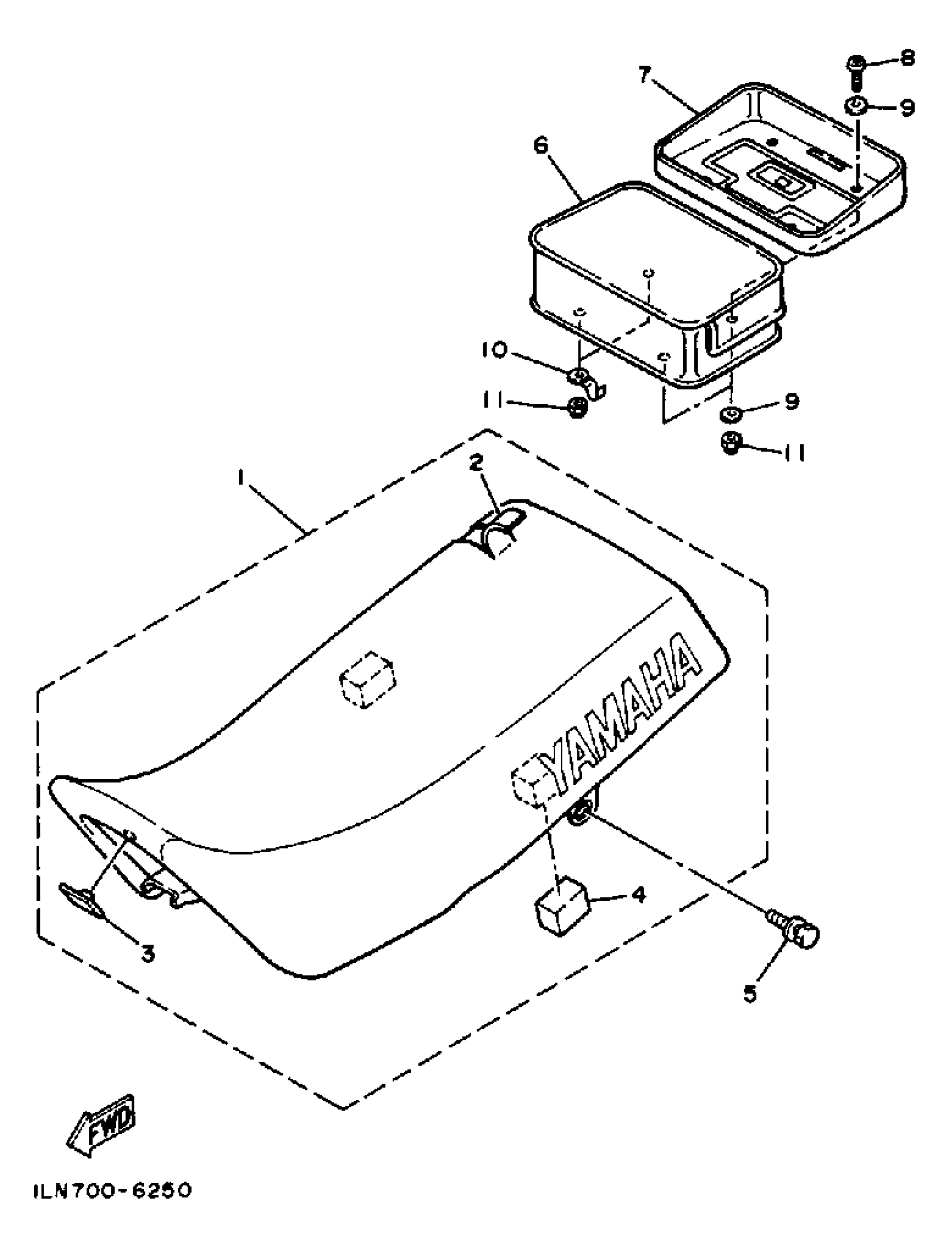

Yamaha TT350T (TT350) 1987 SEAT Diagram

SINGLE SEAT ASSEMBLY

1LN-24710-00-00

Unavailable

. COVER, DOUBLE SEAT

1LN-24731-00-00

Unavailable

DAMPER, SEAT

509-24724-00-00

$9.02

SEAL

(1LN-2475M-00-00)

Unavailable

BOLT, WITH WASHER

90119-06242-00

$5.59

CARRIER BOX ASSEMBLY

4V5-24850-00-00

Unavailable

BRACKET, CARRIER 2

4V5-24833-00-00

Unavailable

SCREW PAN HEAD

98580-06020-00

$6.08

WASHER, PLATE

90201-06380-00

$1.49

WASHER, SPECIAL 1

34K-21615-00-00

Unavailable

NUT, SELF-LOCKING

95617-06100-00

$2.29
