Description

Price

1

SHOCK ASY, REAR

1LN-22210-10-6W

Unavailable

2

BEARING(4GG)

93399-999T3-00

$62.99

3

CIRCLIP (23X)

93440-30113-00

$1.70

4

OIL SEAL (23X)

93104-18077-00

$11.49

5

RING, COVER

1RK-22215-00-00

$24.99

6

SPRING

(1RG-22212-00-6W)

Unavailable

7

COLLAR (23X)

90387-127G8-00

$11.49

8

BOLT (1M1)

90109-10453-00

Unavailable

9

WASHER (7A9)

90201-100F7-00

$9.49

10

NUT, SELF LOCKING (23X)

90185-10120-00

$5.60

11

COLLAR (23X)

90387-126H8-00

$28.99

12

BOLT

90109-10700-00

Unavailable

13

WASHER, PLATE

90201-12027-00

$8.49

14

WASHER, PLATE(6TC)

90201-10M05-00

$5.60

15

NUT, SELF LOCKING (23X)

90185-10120-00

$5.60

16

DAMPER, SUB TANK

24X-22261-00-00

Unavailable

17

HOLDER, SUB TANK

24X-22262-00-00

Unavailable

18

GROMMET

90480-17359-00

Unavailable

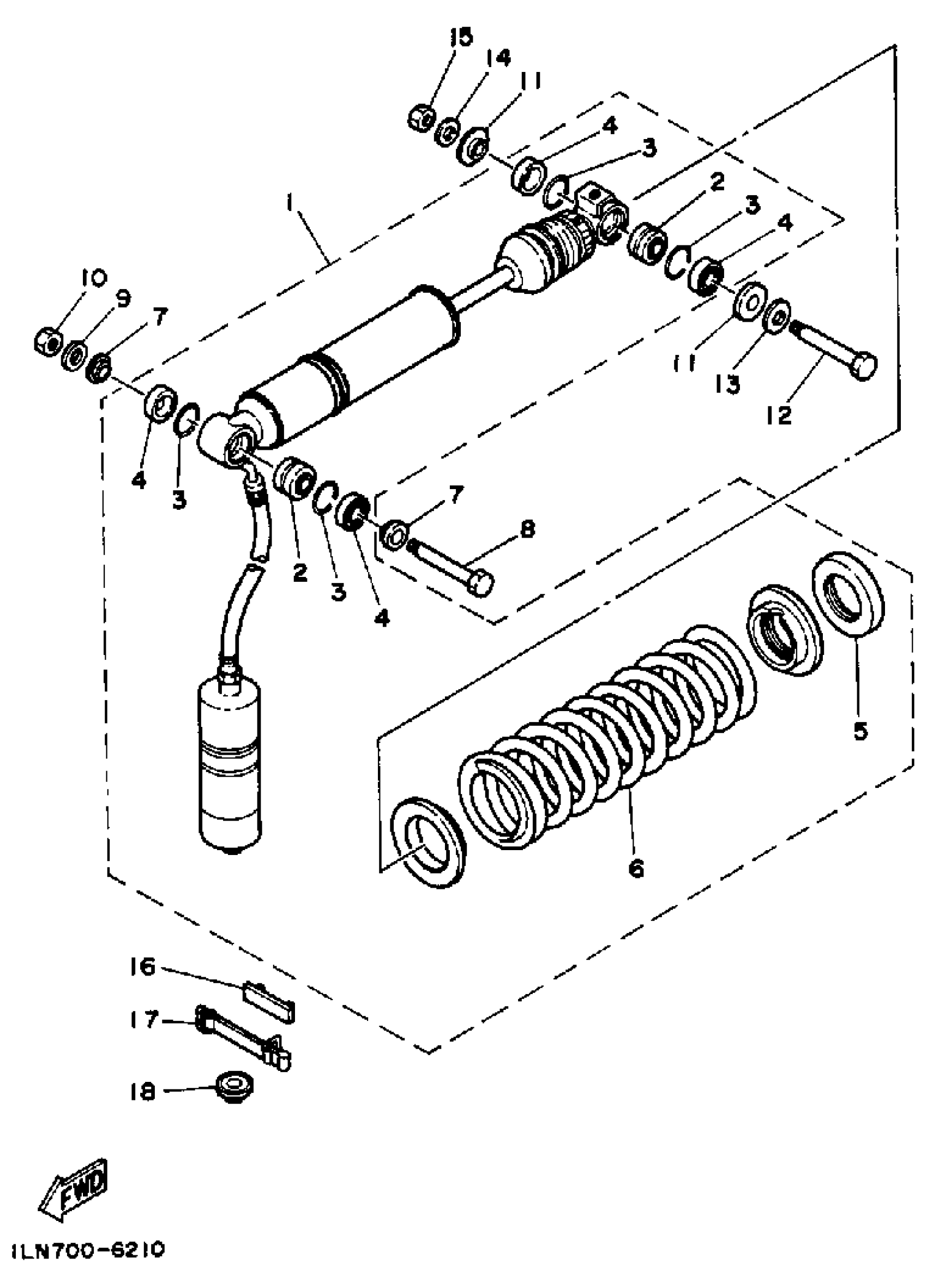

Yamaha TT350T (TT350) 1987 REAR SHOCKS Diagram

SHOCK ASY, REAR

BEARING(4GG)

CIRCLIP (23X)

OIL SEAL (23X)

RING, COVER

SPRING

COLLAR (23X)

BOLT (1M1)

WASHER (7A9)

NUT, SELF LOCKING (23X)

COLLAR (23X)

BOLT

WASHER, PLATE

WASHER, PLATE(6TC)

NUT, SELF LOCKING (23X)

DAMPER, SUB TANK

HOLDER, SUB TANK

GROMMET
