Description

Price

1

HOLDER, LEVER 1

1RG-82911-00-00

Unavailable

2

H0LDER, LEVER L0WER 1

38V-82913-00-00

$23.99

3

LEVER 1

23X-83912-02-00

$27.99

4

BOLT (2YK1)

90109-06799-00

$4.99

5

NUT, SELF-LOCKING

95617-06100-00

$8.49

6

SCREW, PAN HEAD(4MY)

98507-05018-00

$3.28

7

WASHER(3SX)

92907-05100-00

$8.49

8

LEVER 2

55Y-83922-02-00

$37.99

9

BOLT(48Y)

90109-062A8-00

$7.49

10

NUT, SELF-LOCKING

95617-06100-00

$8.49

11

SCREW (2L0)

90149-06131-00

$8.49

12

NUT HEXAGON 306839270000

90170-06010-00

$8.49

13

SPRING COMPRESSION306839240000

90501-10312-00

$8.49

14

SWITCH, HANDLE 1

23X-83976-01-00

Unavailable

15

BAND, SWITCH CORD

437-83936-01-00

$7.99

16

LIGHT SWITCH ASSEMBLY

4V5-82520-00-00

Unavailable

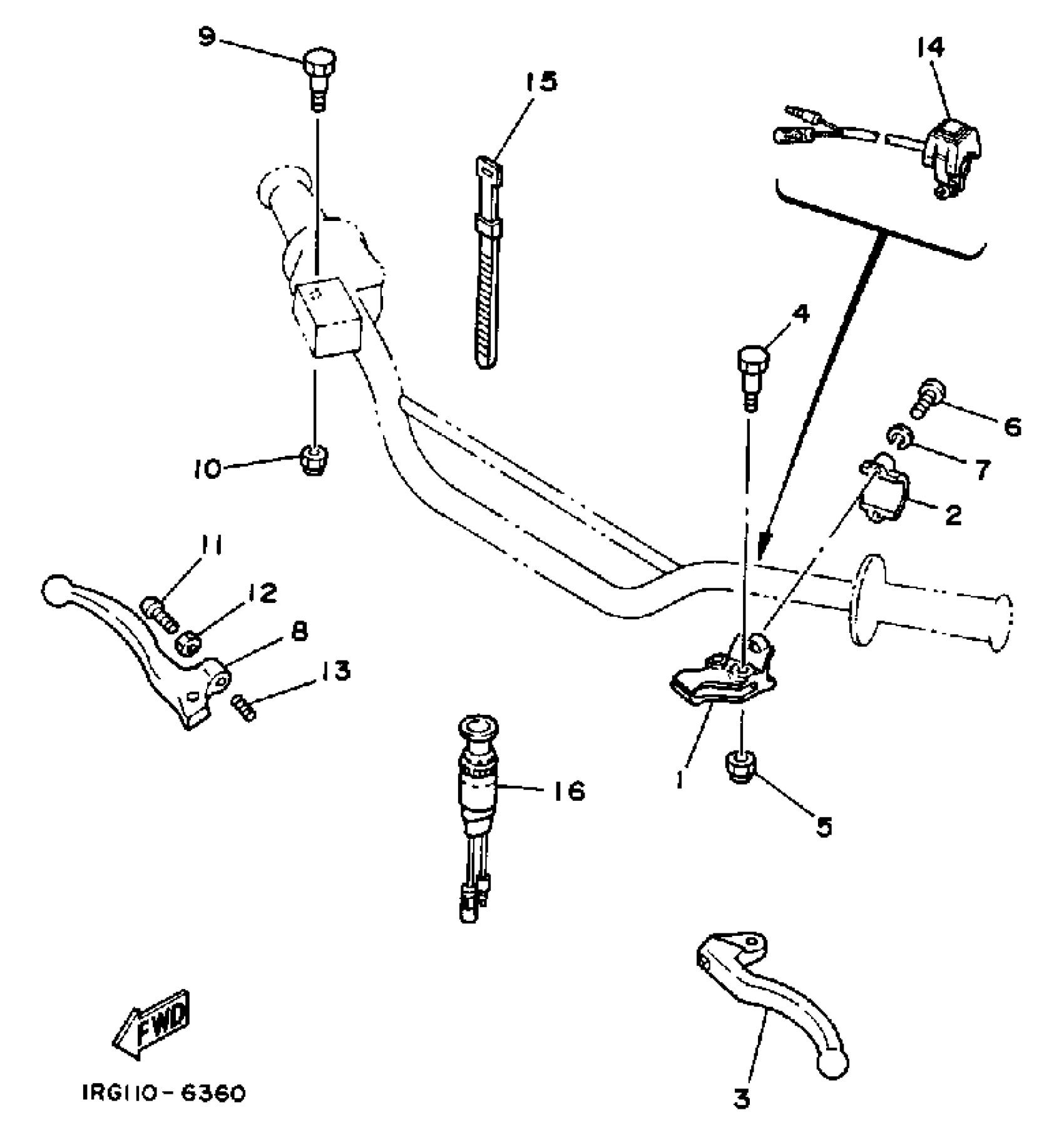

Yamaha TT350T (TT350) 1987 HANDLE SWITCH-LEVER Diagram

HOLDER, LEVER 1

H0LDER, LEVER L0WER 1

LEVER 1

BOLT (2YK1)

NUT, SELF-LOCKING

SCREW, PAN HEAD(4MY)

WASHER(3SX)

LEVER 2

BOLT(48Y)

NUT, SELF-LOCKING

SCREW (2L0)

NUT HEXAGON 306839270000

SPRING COMPRESSION306839240000

SWITCH, HANDLE 1

BAND, SWITCH CORD

LIGHT SWITCH ASSEMBLY
