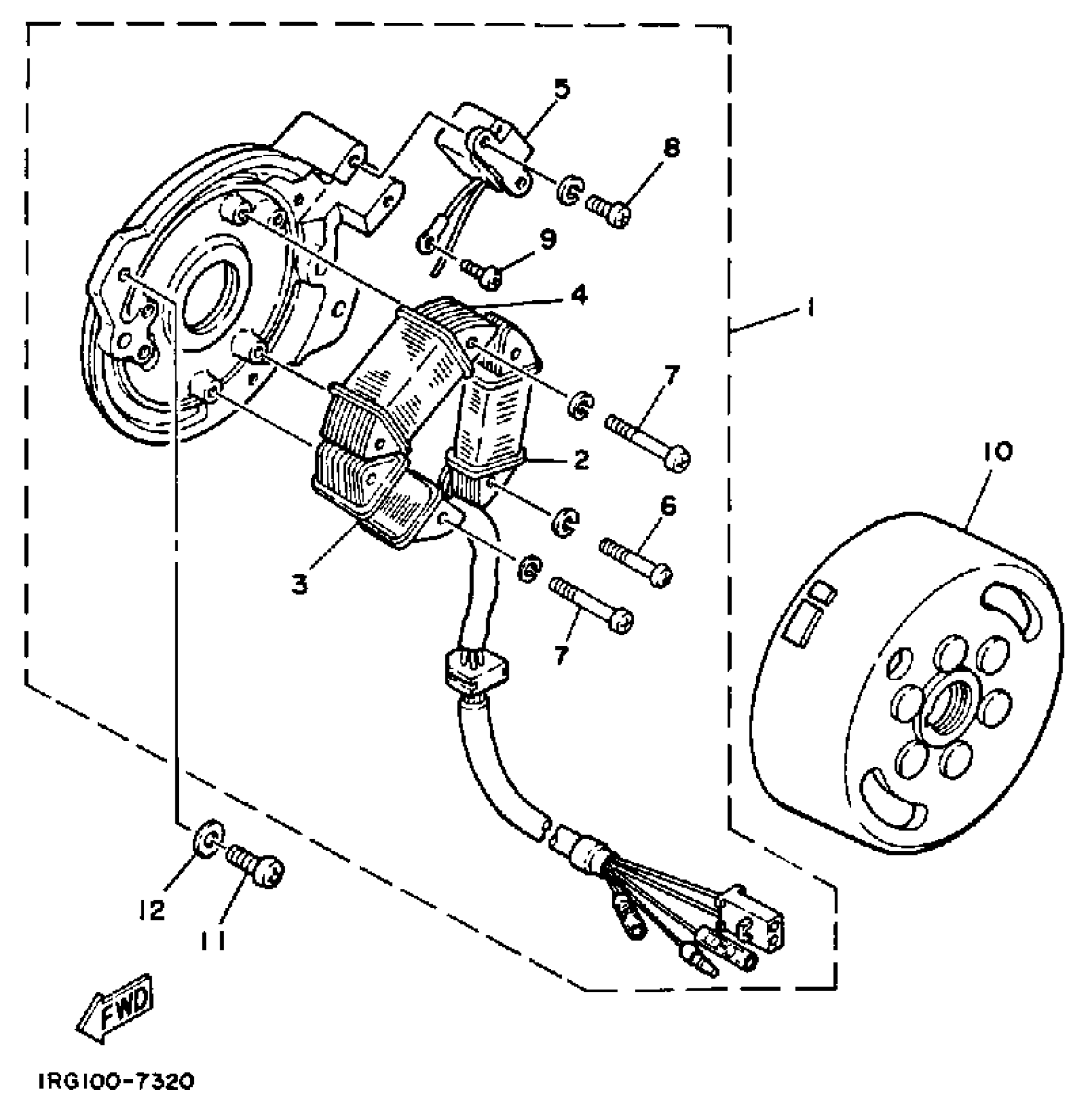

Yamaha TT350T (TT350) 1987 GENERATOR Diagram

#

Description
Price

1

STATOR ASSEMBLY

1RG-85510-21-00

Unavailable

2

. COIL, SOURCE

30X-85512-00-00

Unavailable

3

. COIL, LIGHTING 1

1RG-85513-20-00

Unavailable

4

. COIL, LIGHTING 2

1RG-85514-20-00

Unavailable

5

. COIL, PULSER

30X-85580-00-00

Unavailable

6

SCREW, PAN HEAD

98580-05020-00

Unavailable

7

SCREW, PANHEAD (A93)

98580-05525-00

$2.00

8

SCREW,PAN HEAD (646)

98580-05012-00

$7.99

9

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

10

ROTOR ASSEMBLY (30X-85550-20)

30X-85550-21-00

Unavailable

11

SCREW, PAN

98507-06014-00

$8.49

12

WASHER, PLAIN (646)

92990-06600-00

$2.80
