FRONT FORK

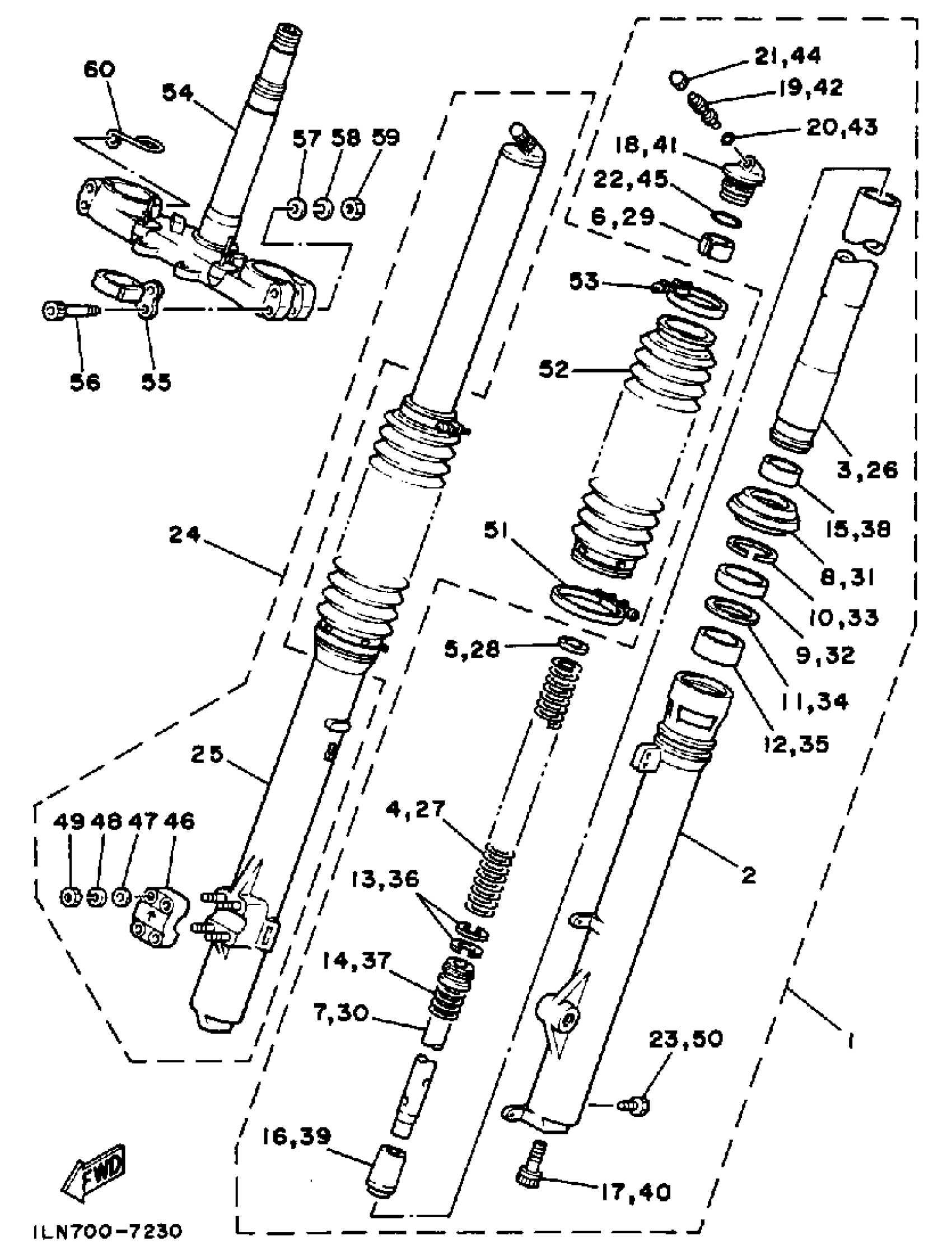

Yamaha TT350T (TT350) 1987 FRONT FORK Diagram
#
1
FRT.FORK ASSEMBLY L.H.
(1RG-23102-00-00)
Unavailable
2
. OUTER TUBE COMPLH-COMP (LH)
1LN-23106-00-38
Unavailable
3
INNER TUBE COMP.
(1RG-23110-00-00)
Unavailable
4
SPRING, FRT. FORK
(1RG-23141-00-00)
Unavailable
5
. SEAT, SPRING UPPER
34L-23142-00-00
Unavailable
6
. SPACER
50T-23118-00-00
Unavailable
7
CYLINDER.COMP., FRT.FORK
(1RG-23170-00-00)
Unavailable
8
SEAL, DUST
1LN-23144-00-00
Unavailable
9
OIL SEAL
3MA-23145-00-00
Unavailable
10
RING, SNAP
34L-23153-00-00
Unavailable
11
. O-RING
34L-23147-00-00
Unavailable
12
METAL, SLIDE 2
3AJ-23135-00-00
Unavailable
13
RING, PISTON
(55W-23157-00-00)
Unavailable
14
SPRING, REBOUND
(34L-23151-00-00)
Unavailable
15
. PISTON, FRT FORK (50T-23171-00)
55W-23171-00-00
Unavailable
16
SPACER, OIL LOCK
(1LN-23166-00-00)
Unavailable
17
BOLT
3M7-23181-00-00
Unavailable
18
. BOLT, CAP
34L-23111-00-00
Unavailable
19
. AIR VALVE
5K7-23190-00-00
Unavailable
20
O-RING (26H)
93210-06632-00
Unavailable
21
CAP, AIR VALVE
4V1-23184-L0-00
Unavailable
22
O-RING
93210-33006-00
Unavailable
23
PLUG, DRAIN
2A6-23119-00-00
Unavailable
24
FRT.FORK ASSEMBLY R.H.
(1RG-23103-00-00)
Unavailable
25
. OUTER TUBE COMPRHCOMP (RH)
1LN-23107-00-38
Unavailable
26
INNER TUBE COMP.
(1RG-23110-00-00)
Unavailable
27
SPRING, FRT. FORK
(1RG-23141-00-00)
Unavailable
28
. SEAT, SPRING UPPER
34L-23142-00-00
Unavailable
29
. SPACER
50T-23118-00-00
Unavailable
30
CYLINDER.COMP., FRT.FORK
(1RG-23170-00-00)
Unavailable
31
SEAL, DUST
1LN-23144-00-00
Unavailable
32
OIL SEAL
3MA-23145-00-00
Unavailable
33
RING, SNAP
34L-23153-00-00
Unavailable
34
. O-RING
34L-23147-00-00
Unavailable
35
METAL, SLIDE 2
3AJ-23135-00-00
Unavailable
36
RING, PISTON
(55W-23157-00-00)
Unavailable
37
SPRING, REBOUND
(34L-23151-00-00)
Unavailable
38
. PISTON, FRT FORK (50T-23171-00)
55W-23171-00-00
Unavailable
39
SPACER, OIL LOCK
(1LN-23166-00-00)
Unavailable
40
BOLT
3M7-23181-00-00
Unavailable
41
. BOLT, CAP
34L-23111-00-00
Unavailable
42
. AIR VALVE
5K7-23190-00-00
Unavailable
43
O-RING (26H)
93210-06632-00
Unavailable
44
CAP, AIR VALVE
4V1-23184-L0-00
Unavailable
45
O-RING
93210-33006-00
Unavailable
46
. HOLDER, AXLE
39W-23167-L0-00
Unavailable
47
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
48
WASHER, SPRING
92995-06100-00
Unavailable
49
NUT, HEXAGON
95380-06600-00
Unavailable
50
PLUG, DRAIN
2A6-23119-00-00
Unavailable
51
BAND
3RW-23192-00-00
Unavailable
52
BOOT
1LN-23191-00-00
Unavailable
53
BAND
1LN-23192-00-00
Unavailable
54
UNDER BRACKET COMP
(1LN-23340-00-39)
Unavailable
55
GUIDE, WIRE
3R4-23389-00-00
Unavailable
56
BOLT, HEX SCKT HEAD
34L-23181-00-00
Unavailable
57
.. WASHER, PLATE
92990-08600-00
Unavailable
58
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
59
NUT(6L2)
95333-08600-00
Unavailable
60
GUIDE, CABLE
4V5-23389-00-00
Unavailable
